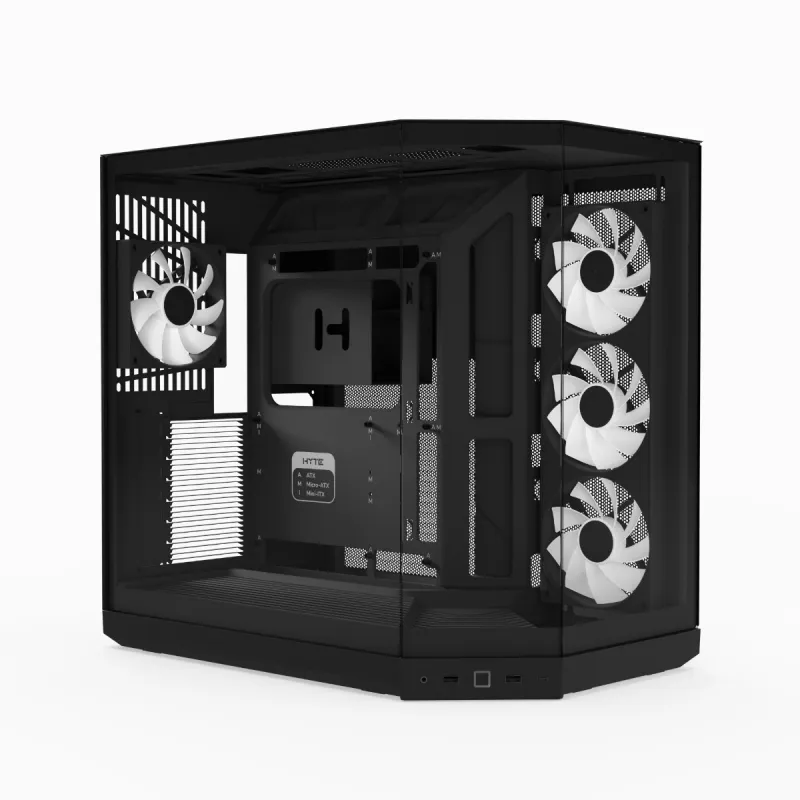

Meet the Essential Aesthetic Case
The Foundation of Eery Dream Setup - timeless by design and ready to complement any aesthetic, environment, and season.
Product Features
Ready to Glow

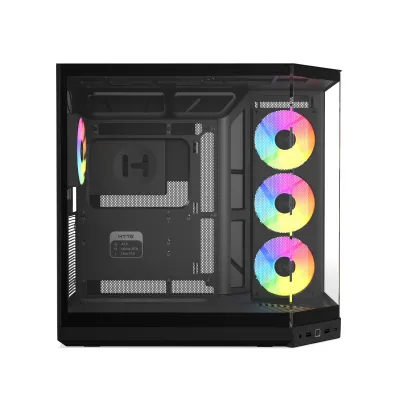

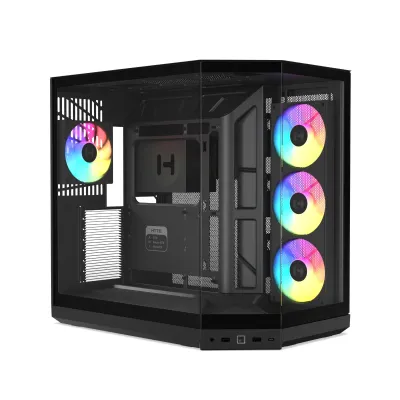

Y50 RGB's visual harmony comes pre-installed with 4x ARGB fans included for our new Y-Series enjoyers. And of course the side fans are reverse-blade for that clean aesthetic out of the box.
Good Looks with Even Better Views
Slimmer bezels, cleaner glass, a tighter take on the iconic Y-Series frame you love. We moved the I/O into the corner foot so nothing elbows into the 3-piece panoramic wrap. It's just sharper to look at and you like that.
Baby's got Back... Connect!
Rear-connect is all the rage so Y50 shows up already fluent. You get native support for ASUS BTF, Gigabyte STEALTH, and MSI Project ZERO ATX motherboards. Traditional E-ATX through ITX still drop in though, so use what you've got while you remain confident with the future upgrade.
Ginormous Compatibility

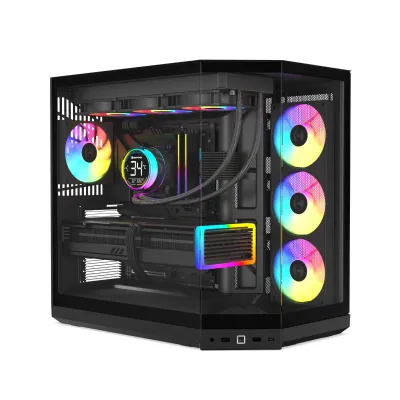

Even the biggest GPUs slot in horizontally, leaving room for expansion and capture cards (we heard you, creators). Nine fan mounts, extra thicc dual rads for custom loops, and cold floor cooling underneath. Air, water, and full-size graphics card all get a very capable layout.
More Spilt Milk, But No More Tears
We spilled it again. Along with the classic Snow White and Pitch Black colorways, Strawberry, Taro, and Black Cherry flavors are back. Each one is $99. The only thing you're cleaning up is that shiny new desktop aesthetic.
TECH SPECS
| Volume | 63.8 L | Case Dimensions | 473mm (L) x 288mm (W) x 461mm (H) |
|---|---|---|---|
| Case Materials | Steel, ABS, Tempered Glass | Colors | Snow White, Pitch Black, Black Cherry, Strawberry Milk, Taro Milk |
| Motherboard Support | Traditional: E-ATX, ATX, mATX, ITX Rear Connect ATX: Asus BTF, Gigabyte Stealth, MSI Project Zero | Power Supply | ATX up to 250mm in length (225mm with rear connect Motherboards) |
| Video Card Max Dimensions | 360mm length, 170mm width | Top Fan & Radiator Support | 3x120mm or 2x140mm Fans, up to 410mm long & 46mm thick Radiator |
| Side Fan & Radiator Support | 3x120mm Fans, up to 410mm long & 83mm thick Radiator | Rear Fan & Radiator Support | 1x120mm Fan, 120mm Radiator |
| Bottom Fan Support | 2x120mm Fans up to 32mm thick | Included Fans | 1x RGB 360mm w/ Reverse Blade Design (Side) + 1x RGB 120mm (Rear) |
| Fan LED Count | 8x ARGB LEDs per blade | Fan Speed | 200 – 1500 RPM |
| CPU Cooler Height | Up to 160mm tall | Internal 2.5” Drives | 6x (4x shared with 3.5” bays) |
| Internal 3.5” Drives | 2x | Expansion Slots | 7x Full-Size |
| Front USB-A | 2x 3.2 Gen 1 (5 Gbps) | Front USB-C | 1x 3.2 Gen 2 (10 Gbps) |
| Audio/Mic Jack | 1x Combo Jack | Warranty | 4 Years |
| MSRP | $99.99 |
Engineering Finesse
- Y-Series Ventilation with 3D Textured Micro-Mesh
- Louvered Blade PCIe Slot Ventilation
- Cold Floor Cooling
- Zero Proprietary Bullshit
- Fully Color-Matched Design
Meticulously Crafted From Every Dimension
Available in 5 Unique Colorways
機箱 詳細規格
HYTE Y50 RGB · 草莓牛奶 · 雙艙全景 · 原生背插 · 4x aRGB
基本資訊與體積規格 (Basic Info & Dimensions)
產品型號
HYTE Y50 RGB (草莓牛奶粉 / Strawberry Milk)
原廠料號 (SKU)
CS-HYTE-Y50RGB-SM
機箱架構與外型
ATX 雙艙中塔式全景機箱 (Dual Chamber ATX Mid-Tower)
機箱尺寸 (長 × 寬 × 高)
473 mm (L) × 288 mm (W) × 461 mm (H)
機箱總容積
63.8 L (寬裕雙艙散熱與理線空間)
主要材質
SPCC 高強度鋼材、ABS 工業塑料、3 片式無立柱環繞全景鋼化玻璃 (Tempered Glass)
外觀配色
草莓牛奶 (Strawberry Milk / 粉白雙色美學)
系列共提供：Snow White (雪白)、Pitch Black (夜黑)、Black Cherry (黑櫻桃)、Strawberry Milk (草莓牛奶)、Taro Milk (芋頭牛奶)
保固服務
原廠保固 4 年 (4-Year Limited Warranty)
主機板與電源支援 (Motherboard & Power Support)
主機板支援規格
- 傳統主機板：E-ATX ATX Micro-ATX Mini-ITX
- 背插主機板 (Rear-Connect)：ASUS BTF Gigabyte STEALTH MSI Project ZERO 原生支援
電源供應器支援 (PSU)
- 標準 ATX 電源，支援長度最高達 250 mm
- 搭配背插主機板安裝時，電源支援長度為 225 mm
散熱系統與風扇水冷支援 (Cooling & Fan Support)
出廠預裝風扇
標配共預裝 4 顆 ARGB 散熱風扇：
- 側邊進氣：1 組 360mm 反葉整合式 ARGB 風扇模組 (3×120mm 結構，進氣扇葉朝內無支架阻擋，兼具超高進風量與純淨美感)
- 後方出風：1 顆 120mm ARGB 風扇
- 風扇規格：轉速 200 ~ 1500 RPM，每葉片均搭載 8 顆高亮度可尋址 ARGB LED
風扇安裝位支援
最多可安裝 9 顆風扇：
- 頂部 (Top)：3 × 120mm 或 2 × 140mm
- 側面 (Side)：3 × 120mm (已預裝 360mm 反葉風扇組)
- 後方 (Rear)：1 × 120mm (已預裝 120mm ARGB 風扇)
- 底部 (Bottom)：2 × 120mm (冷底板 Cold Floor 垂直直吹進氣，支援厚度達 32mm)
水冷散熱排支援
- 頂部 (Top)：360 mm / 280 mm 水冷排 (長度上限 410 mm，厚度上限 46 mm)
- 側面 (Side)：360 mm / 240 mm 水冷排 (長度上限 410 mm，厚度上限高達 83 mm 極厚水排相容)
- 後方 (Rear)：120 mm 水冷排
硬體空間與相容性 (Hardware Clearance & Slots)
顯示卡支援長度 (GPU)
最高支援長度 360 mm
支援頂級多插槽厚卡標準水平安裝，全景玻璃無遮擋展示，並保留多卡、PCIe 擴充卡及影像擷取卡安裝餘裕
CPU 散熱器限高
最高支援 160 mm
PCIe 擴充槽位
7 個 標準全高水平擴充槽 (Full-Size Horizontal Expansion Slots)
儲存擴充規格 (Storage Capacity)
3.5 吋硬碟槽位 (HDD)
2 個 3.5 吋硬碟位 (背艙整合式儲存空間 Unified Storage Bay)
2.5 吋硬碟槽位 (SSD)
最高支援 6 個 2.5 吋硬碟位 (其中 4 個與 3.5 吋安裝槽共用)
外觀特色與前置連接埠 (Aesthetics & Front I/O)
經典全景美學設計
- 3片式全景環繞 無立柱全景鋼化玻璃 (Panoramic Wrap)，極窄邊框帶來無阻礙通透視野
- 階梯式底板 (Stair-Stepped Flooring) 與懸浮式底座設計 (Floating Base)，展現雕塑般桌面展示層次感
前置 I/O 連接埠
巧妙整合於機箱角落腳座，不破壞全景玻璃俐落美感：
- 2 × USB 3.2 Gen 1 Type-A (5 Gbps 高速傳輸)
- 1 × USB 3.2 Gen 2 Type-C (10 Gbps 極速傳輸)
- 1 × 3.5mm 音訊/麥克風二合一複合插孔 (Audio/Mic Combo Jack)
- 1 × 整合式電源按鍵 (Power Button)
