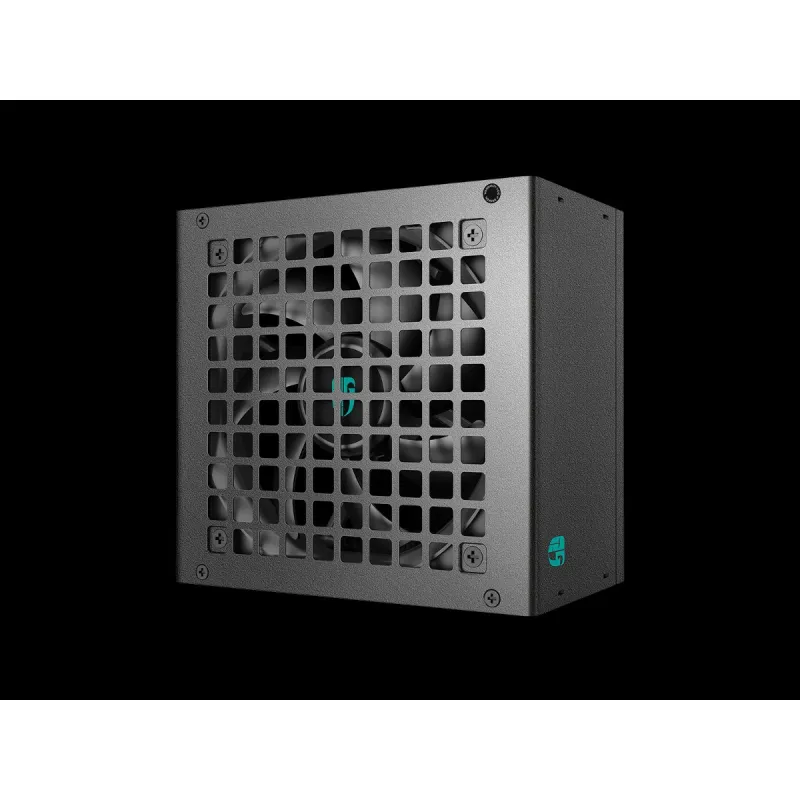

Name: DEEPCOOL PQ1200G 1200W 80Plus Gold 金牌 全模組 電源供應器
Price: 1199 HKD
Availability: InStock

DEEPCOOL PQ1200G 1200W 80Plus Gold 金牌全模組電源供應器

DEEPCOOL PQ1200G 1200W 80Plus Gold 金牌全模組電源供應器

80 PLUS GOLD DeepCool 九州風神 1200W 全模組

DEEPCOOL 九州風神
貨號：PQ1200G
保養期: 10年
官方網站
檢查庫存中...

節省5%

加購品

電腦電源線 POWER CORD

HK$20

價格：

HK$1,199

HK$1,249

促銷：

秒殺：

數量：

對產品有疑問? 歡迎聯絡客服

ENGINEERED
FOR MODERN COMPONENTS

With the ability to provide twice the total system power, 2.5 times the 12V CEM peak power, and three times the rated power of the 12V-2x6 cable for 0.1 ms, random power spikes will never be an issue. The PQ1200G will provide stable and consistent power for legacy and modern power-hungry PCs for the foreseeable future.

THE GOLD STANDARD

80 Plus Gold certified to meet a 92% high level of power efficiency under typical loads of 50%, while Cybenetics and PPLP also rates each PQ1200G unit as Gold as well.

TRUST-WORTHY STABILITY

Through the use of a premium full Japanese electrolytic capacitors, active PFC, half-bridge LLC, and a DC-to-DC topology, the PQ1200G can keep the hold-up time to ≥ 16 ms under a 100% full load—a higher standard than required to meet ATX3.1 compliance.

PCI-E 5.1 PERFECTION

Equipped with a high-grade sleeved 105C-resistant 16AWG copper-core 12V-2x6 cable, the PQ1200G provides up to 600W for modern GPUs.

DYNAMIC FDB FAN

The PQ1200G comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the advanced internal circuitry.

EXCEPTIONAL QUALITY

Due to the high quality of the parts utilized, every PQ-G power supply will operate at altitudes up to 5000 meters above sea level.

COMPACT DESIGN

Coming in at an agreeable 140x150x86mm, the PQ1200G can easily fit into the vast majority of cases that support ATX-sized PSUs.

NECESSARY PROTECTIONS

Keep your mind at ease, knowing that the PQ1200G comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.

Over Power Protection

Over Voltage Protection

Short Circuit Protection

Over Temp Protection

Over Current Protection

Under Voltage Protection

Surge & Inrush Protection

No Load Operation

WORRY-FREE COVERAGE

The PQ1200G is engineered and manufactured at such a meticulous level that GAMER STORM is offering a lengthy 10 years of trouble-free limited warranty coverage. Rest assured that if any problems arise during the coverage period, you will be well taken care of.

Main Power Connector 24 (20+4)Pin x1

CPU (4+4)Pin x1

PCI-E (6+2)Pin x1

PCI-E (6+2)Pin x2

12V-2x6 (16Pin) x1

SATA x 3 + 4Pin Peripheral x 1

電源供應器詳細規格原廠公司貨

基本資訊與電源規格 (Basic Information & Power Specs)
額定總輸出功率	1200W
規範標準	ATX 12V V3.1
轉換效率認證	80 PLUS 金牌 (Gold) Cybenetics 金牌 (Gold) PPLP 金牌 (Gold) 典型負載轉換效率 ≧ 90% (50% Loading)
電路結構拓撲	主動式 PFC + 半橋 SRC LLC 諧振架構 + DC to DC 穩壓轉換
內部電容用料	全日系電解電容 (Full Japanese Electrolytic Capacitors)
電氣特性響應	• Power Good 訊號：100 - 150 ms • 保持時間 (Hold Up Time)：≥ 16 ms (滿載 Full load)
產品尺寸 (寬 x 長 x 高)	150 x 140 x 86 mm (140mm 緊湊短機身設計)
散熱與安全防護 (Cooling & Protection)
散熱風扇規格	120 x 120 x 25 mm FDB 液態動壓軸承風扇 (Fluid Dynamic Bearing)
安全保護機制	OPP 過負載保護 OVP 過電壓保護 SCP 短路保護 OTP 過溫保護 OCP 過電流保護 UVP 低電壓保護 SIP 湧浪與衝擊保護 NLO 空載運行保護
工作環境、安規與認證 (Environmental & Certifications)
運作環境與壽命	• 工作溫度：0 - 40 ℃ • 平均無故障時間 (MTBF)：100,000 小時
安規與能效認證	• 安規認證：CE / CCC / TUV-RH / cTUVus / RCM / EAC • 節能規範：ErP 2013
環保規範認證	WEEE / Triman / California Proposition 65 (P65) / 中國 RoHS / EAC

電源供應器詳細規格原廠公司貨

基本資訊與電源規格 (Basic Information & Power Specs)
額定總輸出功率	1200W
規範標準	ATX 12V V3.1
轉換效率認證	80 PLUS 金牌 (Gold) Cybenetics 金牌 (Gold) PPLP 金牌 (Gold) 典型負載轉換效率 ≧ 90% (50% Loading)
電路結構拓撲	主動式 PFC + 半橋 SRC LLC 諧振架構 + DC to DC 穩壓轉換
內部電容用料	全日系電解電容 (Full Japanese Electrolytic Capacitors)
電氣特性響應	• Power Good 訊號：100 - 150 ms • 保持時間 (Hold Up Time)：≥ 16 ms (滿載 Full load)
產品尺寸 (寬 x 長 x 高)	150 x 140 x 86 mm (140mm 緊湊短機身設計)
散熱與安全防護 (Cooling & Protection)
散熱風扇規格	120 x 120 x 25 mm FDB 液態動壓軸承風扇 (Fluid Dynamic Bearing)
安全保護機制	OPP 過負載保護 OVP 過電壓保護 SCP 短路保護 OTP 過溫保護 OCP 過電流保護 UVP 低電壓保護 SIP 湧浪與衝擊保護 NLO 空載運行保護
工作環境、安規與認證 (Environmental & Certifications)
運作環境與壽命	• 工作溫度：0 - 40 ℃ • 平均無故障時間 (MTBF)：100,000 小時
安規與能效認證	• 安規認證：CE / CCC / TUV-RH / cTUVus / RCM / EAC • 節能規範：ErP 2013
環保規範認證	WEEE / Triman / California Proposition 65 (P65) / 中國 RoHS / EAC
