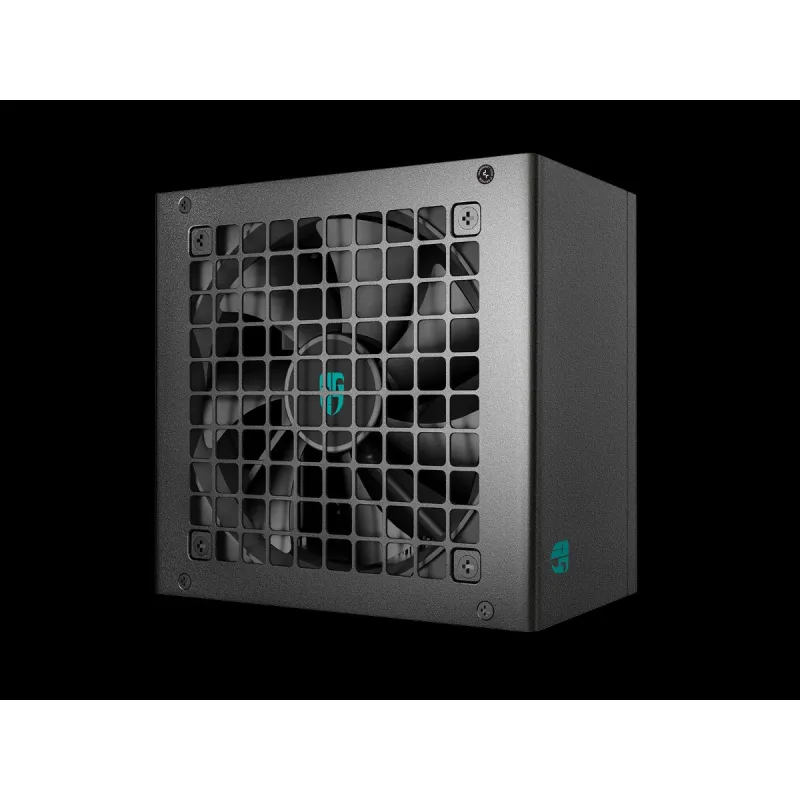

Name: DEEPCOOL PN650D 650W 80PLUS GOLD 金牌 主機電源
Price: 528 HKD
Availability: InStock

DEEPCOOL PN650D 650W 80PLUS GOLD 金牌主機電源

DeepCool 九州風神 650W 80 PLUS GOLD

DEEPCOOL 九州風神
貨號：PN650D
保養期: 10年
官方網站
檢查庫存中...

節省6%

加購品

電腦電源線 POWER CORD

HK$20

價格：

HK$528

HK$558

促銷：

秒殺：

數量：

對產品有疑問? 歡迎聯絡客服

GRACEFUL GOLD

80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.

POWER YOU CAN TRUST

Through the use of a premium main electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN650D can keep the hold-up time to ≥ 16 ms under a high load of 80%.

12V-2x6
CABLE

PCI-E 5.1 POWER

Equipped with a high-grade 105C-resistant 16AWG copper-core sleeved 12V-2x6 cable, the PN650D provides up to 450W for modern GPUs.

SLEEVED CABLES

The PN650D has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.

DYNAMIC HYDRO BEARING FAN

The PN650D comes equipped with a dynamic 120mm hydro bearing fan that will adjust its speed based on the cooling needs of the PSU.

HIGH QUALITY BUILD

Due to the high quality of the parts utilized, the PN650D will operate at altitudes up to 5000 meters above sea level.

PEACE OF MIND

The PN650D comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.

Over Power Protection

Over Voltage Protection

Short Circuit Protection

Over Temp Protection

Over Current Protection

Under Voltage Protection

No Load Operation

Surge & Inrush Protection

EXCELLENT COVERAGE

The PN650D is engineered and manufactured at such a high level that is offering a lengthy 10 years of trouble-free limited warranty coverage.

* This product is prohibited from being used for mining and other abnormal uses. If the product fails due to it, can refuse to provide the relevant warranty service according to the power supply warranty regulations.

Main Power Connector (20+4)Pin x 1

CPU(4+4)Pin x 2

PCI-E(6+2)Pin x 1

PCI-E(6+2)Pin x 2

12V-2x6(16Pin) x 1

SATA x 3 + 4Pin Peripheral x 1

電源供應器詳細規格原廠公司貨

基本資訊與電源規格 (Basic Information & Power Specs)
規範標準	ATX 12V V3.1
80 PLUS 轉換效率	80 PLUS 金牌 (Gold) 典型負載轉換效率 ≧ 90% (50% Loading)
電路結構拓撲	主動式 PFC + 全橋 SRC LLC 諧振架構 + DC to DC 穩壓轉換
電容規格	中國電解電容 (Chinese Electrolytic Capacitors)
電氣特性響應	• Power Good 訊號：100 - 150 ms • 保持時間 (Hold Up Time)：≥ 16 ms (80% 負載)
產品尺寸 (寬 x 長 x 高)	150 x 140 x 86 mm (緊湊短機身設計)
散熱與安全防護 (Cooling & Protection)
散熱風扇規格	120mm HYB 液壓軸承風扇 (Hydro Bearing Fan)
安全保護機制	OPP 過負載保護 OVP 過電壓保護 SCP 短路保護 OTP 過溫保護 OCP 過電流保護 UVP 低電壓保護 SIP 湧浪與衝擊保護 NLO 空載運行保護
工作環境、安規與認證 (Environmental & Certifications)
運作環境與壽命	• 工作溫度：0 - 40 ℃ • 平均無故障時間 (MTBF)：100,000 小時
安規與能效認證	• 安規認證：CE / FCC / CCC / TUV-RH / cTUVus / RCM / EAC • 節能規範：ErP 2014
環保規範認證	WEEE / 中國 RoHS / Triman / California Proposition 65 (P65)

電源供應器詳細規格原廠公司貨

基本資訊與電源規格 (Basic Information & Power Specs)
規範標準	ATX 12V V3.1
80 PLUS 轉換效率	80 PLUS 金牌 (Gold) 典型負載轉換效率 ≧ 90% (50% Loading)
電路結構拓撲	主動式 PFC + 全橋 SRC LLC 諧振架構 + DC to DC 穩壓轉換
電容規格	中國電解電容 (Chinese Electrolytic Capacitors)
電氣特性響應	• Power Good 訊號：100 - 150 ms • 保持時間 (Hold Up Time)：≥ 16 ms (80% 負載)
產品尺寸 (寬 x 長 x 高)	150 x 140 x 86 mm (緊湊短機身設計)
散熱與安全防護 (Cooling & Protection)
散熱風扇規格	120mm HYB 液壓軸承風扇 (Hydro Bearing Fan)
安全保護機制	OPP 過負載保護 OVP 過電壓保護 SCP 短路保護 OTP 過溫保護 OCP 過電流保護 UVP 低電壓保護 SIP 湧浪與衝擊保護 NLO 空載運行保護
工作環境、安規與認證 (Environmental & Certifications)
運作環境與壽命	• 工作溫度：0 - 40 ℃ • 平均無故障時間 (MTBF)：100,000 小時
安規與能效認證	• 安規認證：CE / FCC / CCC / TUV-RH / cTUVus / RCM / EAC • 節能規範：ErP 2014
環保規範認證	WEEE / 中國 RoHS / Triman / California Proposition 65 (P65)
