Overview

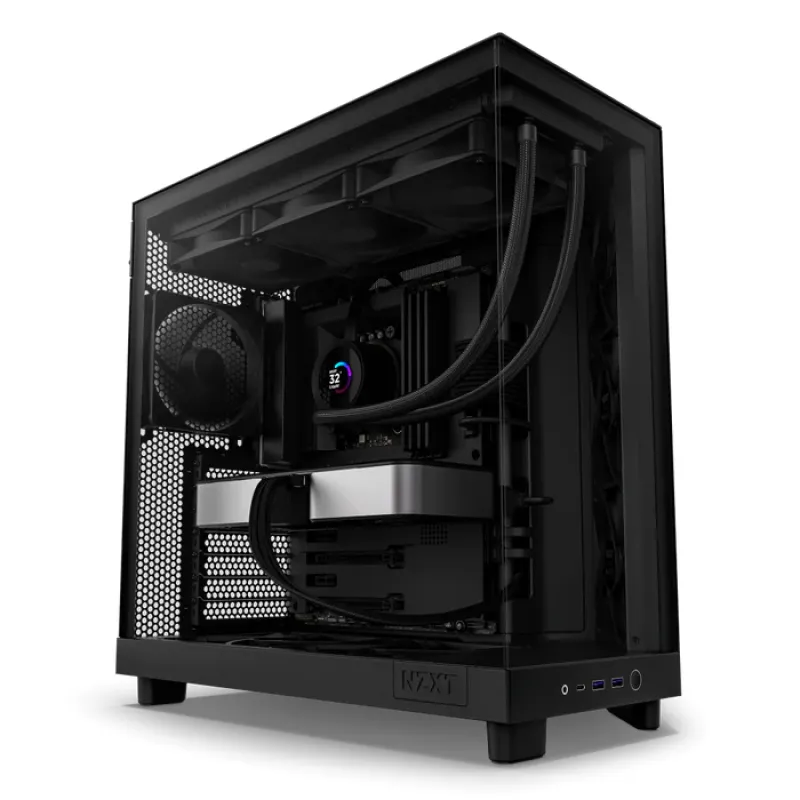

Experience peak performance within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow's panoramic glass showcases the interior while freeing up space for improved airflow.
-
Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
-
Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.
-
Includes three pre-installed 120mm fans (Case Version) positioned at an ideal angle for superb out-of-the-box cooling.
-
The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.
-
An intuitive cable management system simplifies the build process by using wide channels and straps.
-
Tool-free access to the top and side panels makes upgrading quick and convenient.
-
Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance
Compact Dual-Chamber
Out-of-the-Box Cooling
Cable Management
Tool-Free Entry
Spacious Support
Tech Specs
Overview
Experience peak performance within an innovative compact dual-chamber. Prioritizing GPU cooling, the H6 Flow's panoramic glass showcases the interior while freeing up space for improved airflow.
- Wraparound glass panels with a seamless edge provides an unobstructed view of the inside to highlight key components.
- Compact dual-chamber design improves overall thermal performance and creates a clean, uncrowded aesthetic.
- Includes three pre-installed 120mm fans (Case Version) positioned at an ideal angle for superb out-of-the-box cooling.
- The top and side panels feature an airflow-optimized perforation pattern to enhance overall performance and filter dust.
- An intuitive cable management system simplifies the build process by using wide channels and straps.
- Tool-free access to the top and side panels makes upgrading quick and convenient.
- Top panel supports radiators up to 360mm in length. Up to 365mm GPU and 200mm PSU clearance
Compact Dual-Chamber
Out-of-the-Box Cooling
Cable Management
Tool-Free Entry
Spacious Support
Tech Specs
NZXT H6 Flow (Dual-Chamber) 詳細規格
| 基本資訊 (Basic Information) | |
| 機殼類型 / 電源規格 | Dual-chamber ATX case (雙腔體機殼) | ATX 電源規格 |
| 支援主機板 (Motherboard) |
ATX / Micro-ATX / Mini-ITX 支援背插式主機板 (ATX Back-Connect) |
| 材質應用 (Materials) | 高質感鋼板 (Steel)、強化玻璃 (Tempered Glass) |
| 尺寸與重量 (Dimensions & Weight) |
外觀尺寸:448 x 292 x 420 mm (17.6 x 11.5 x 16.5 in) 機殼容積:55 L | 淨重:7.94 kg |
| 前置 I/O 埠 (Front Ports) |
• 1 x USB 3.2 Gen 2x2 Type-C • 2 x USB 3.2 Type-A • 1 x 3.5mm 音訊耳機孔 |
| 擴充與硬碟空間 (Expansion) |
• PCIe 擴充插槽:7 個 • 2.5 吋硬碟架:2 個 • 3.5 吋硬碟架:1 個 |
| 內部安裝空間 (Hardware Compatibility) | |
| CPU 散熱器限高 | 最高支援 165 mm |
| 顯示卡限長 (GPU) | 最長支援 390 mm (搭配右前風扇時,限厚 30 mm 以內不影響顯卡長度) |
| 電源供應器限長 (PSU) | 最高支援 200 mm |
| 理線與安裝厚度限制 |
• 背部理線空間:超寬最高 90 mm • 右前風扇厚度限制:最高 30 mm • 頂部水冷排 + 風扇總厚度:最高 67 mm |
| 理線管理支援 | 固定式魔鬼氈束帶 / 隨附束線帶支援 |
| 風扇與水冷支援 (Cooling & Radiator) | |
| 風扇安裝支援 (Fan Support) |
• 右前:3 x 120 mm • 頂部:3 x 120 mm • 底部:3 x 120 mm • 後方:1 x 120 mm |
| 水冷排支援 (Radiator) |
• 頂部:最高 360 mm (最大相容度可達 400 mm) • 後方:最高 120 mm |
| 產品資訊與保固 (Product Info & Warranty) | |
| 型號編碼 / 色系 |
• 白色 (White):CC-H62FW-01 • 黑色 (Black):CC-H62FB-01 |
| 國際條碼 (UPC / EAN) |
• UPC:810074846882 (白) / 810074846875 (黑) • EAN:5056547209340 (白) / 5056547209333 (黑) |
| 原廠保固 (Warranty) | 2 年原廠保固 |
NZXT H6 Flow (Dual-Chamber) 詳細規格
| 基本資訊 (Basic Information) | |
| 機殼類型 / 電源規格 | Dual-chamber ATX case (雙腔體機殼) | ATX 電源規格 |
| 支援主機板 (Motherboard) |
ATX / Micro-ATX / Mini-ITX 支援背插式主機板 (ATX Back-Connect) |
| 材質應用 (Materials) | 高質感鋼板 (Steel)、強化玻璃 (Tempered Glass) |
| 尺寸與重量 (Dimensions & Weight) |
外觀尺寸:448 x 292 x 420 mm (17.6 x 11.5 x 16.5 in) 機殼容積:55 L | 淨重:7.94 kg |
| 前置 I/O 埠 (Front Ports) |
• 1 x USB 3.2 Gen 2x2 Type-C • 2 x USB 3.2 Type-A • 1 x 3.5mm 音訊耳機孔 |
| 擴充與硬碟空間 (Expansion) |
• PCIe 擴充插槽:7 個 • 2.5 吋硬碟架:2 個 • 3.5 吋硬碟架:1 個 |
| 內部安裝空間 (Hardware Compatibility) | |
| CPU 散熱器限高 | 最高支援 165 mm |
| 顯示卡限長 (GPU) | 最長支援 390 mm (搭配右前風扇時,限厚 30 mm 以內不影響顯卡長度) |
| 電源供應器限長 (PSU) | 最高支援 200 mm |
| 理線與安裝厚度限制 |
• 背部理線空間:超寬最高 90 mm • 右前風扇厚度限制:最高 30 mm • 頂部水冷排 + 風扇總厚度:最高 67 mm |
| 理線管理支援 | 固定式魔鬼氈束帶 / 隨附束線帶支援 |
| 風扇與水冷支援 (Cooling & Radiator) | |
| 風扇安裝支援 (Fan Support) |
• 右前:3 x 120 mm • 頂部:3 x 120 mm • 底部:3 x 120 mm • 後方:1 x 120 mm |
| 水冷排支援 (Radiator) |
• 頂部:最高 360 mm (最大相容度可達 400 mm) • 後方:最高 120 mm |
| 產品資訊與保固 (Product Info & Warranty) | |
| 型號編碼 / 色系 |
• 白色 (White):CC-H62FW-01 • 黑色 (Black):CC-H62FB-01 |
| 國際條碼 (UPC / EAN) |
• UPC:810074846882 (白) / 810074846875 (黑) • EAN:5056547209340 (白) / 5056547209333 (黑) |
| 原廠保固 (Warranty) | 2 年原廠保固 |
