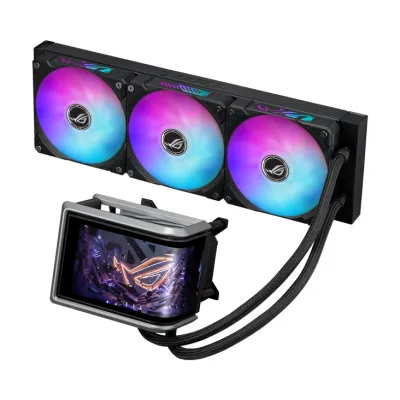

ROG Ryuo IV 360 ARGB
The ROG Ryuo IV 360 ARGB features a 6.67-inch AMOLED display with an innovative curved-screen design, enabling intuitive control through dedicated software to smoothly showcase 3D videos, customized content, or real-time hardware information. Cooling performance is driven by the upgraded Asetek Gen8 V2 pump, paired with ROG ARGB fans to deliver significantly advanced and stable thermal performance for high-end CPUs such as the AMD Ryzen™ 9000 and Intel® Core™ Ultra series.
-
3DVisual Effects
-
Durable Tubing
-
6.67-Inch
Curved 2K AMOLED Display
-
ASUS InfoHub
-
-
Daisy-Chained ARGB Fans
-
Aura Fan Edge
-
Sliding OLED Panel
-
Constant Evolution
ROG Ryuo coolers improve with every generation so that you can push performance ever further.
CPU Average Temperature (Lower is better)
-
ROG RYUO IV 360 ARGB
-
ROG RYUO III 360 ARGB
CPU: Intel® Core™ Ultra 9 Processor 285K | MB: ROG MAXIMUS Z890 HERO |Setup: Average Package Power:~335W | TESTING TOOL: ADIA64, 15min

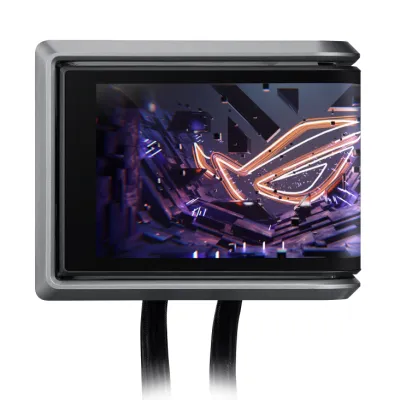

CURVED SCREEN
6.67” 2K AMOLED
The 6.67-inch 2K curved AMOLED screen features a high-resolution, vibrant color display that provides the ultimate immersive visual experience.
Extraordinary Visual
The curved screen design supports naked-eye 3D video effects, creating an unprecedented visual feast. It also allows for customization of hardware information on the content, providing a remarkable combination of style and system monitoring.
Comprehensive pre-loaded material
A variety of built-in style libraries for players to choose from freely, making the AIO Cooler always the visual centerpiece of the computer.
Aesthetic Innovation
An innovative sliding mechanism enables horizontal adjustment of the screen module, reducing interference with motherboard components or memory modules. This design gives users the freedom to optimize viewing angles and achieve a cleaner, more refined aesthetic.
ASUS INFOHUB
Extensive Compatibility
The ROG Ryuo IV series is compatible with a wide range of Intel® and AMD motherboard platforms, giving you ample processor options and build flexibility.
CPU SOCKET SUPPORT
Intel®
1851/1700/1200/115X
AMD
AM5, AM4
ROG Ryuo IV 360 ARGB
The ROG Ryuo IV 360 ARGB features a 6.67-inch AMOLED display with an innovative curved-screen design, enabling intuitive control through dedicated software to smoothly showcase 3D videos, customized content, or real-time hardware information. Cooling performance is driven by the upgraded Asetek Gen8 V2 pump, paired with ROG ARGB fans to deliver significantly advanced and stable thermal performance for high-end CPUs such as the AMD Ryzen™ 9000 and Intel® Core™ Ultra series.
-
3DVisual Effects
-
Durable Tubing
-
6.67-Inch Curved 2K AMOLED Display
-
ASUS InfoHub
-
-
Daisy-Chained ARGB Fans
-
Aura Fan Edge
-
Sliding OLED Panel
Constant Evolution
ROG Ryuo coolers improve with every generation so that you can push performance ever further.
CPU Average Temperature (Lower is better)
- ROG RYUO IV 360 ARGB
- ROG RYUO III 360 ARGB
CPU: Intel® Core™ Ultra 9 Processor 285K | MB: ROG MAXIMUS Z890 HERO |Setup: Average Package Power:~335W | TESTING TOOL: ADIA64, 15min
CURVED SCREEN
6.67” 2K AMOLED
The 6.67-inch 2K curved AMOLED screen features a high-resolution, vibrant color display that provides the ultimate immersive visual experience.
Extraordinary Visual
The curved screen design supports naked-eye 3D video effects, creating an unprecedented visual feast. It also allows for customization of hardware information on the content, providing a remarkable combination of style and system monitoring.
Comprehensive pre-loaded material
A variety of built-in style libraries for players to choose from freely, making the AIO Cooler always the visual centerpiece of the computer.
Aesthetic Innovation
An innovative sliding mechanism enables horizontal adjustment of the screen module, reducing interference with motherboard components or memory modules. This design gives users the freedom to optimize viewing angles and achieve a cleaner, more refined aesthetic.
ASUS INFOHUB
Extensive Compatibility
The ROG Ryuo IV series is compatible with a wide range of Intel® and AMD motherboard platforms, giving you ample processor options and build flexibility.
CPU SOCKET SUPPORT
Intel®
1851/1700/1200/115X
AMD
AM5, AM4
| 基本資訊與冷排規格 (Basic Information & Radiator Specs) | |
| 產品類型 | 一體式水冷 (AIO) 360mm 冷排 |
| 產品顏色 | Black Edition 經典黑 零件編號：90RC01N1-B0AAY0 |
| 冷排尺寸 (長 x 寬 x 高) | 399.5 x 120 x 30 mm |
| 冷排材質 | 鋁 (Aluminum) |

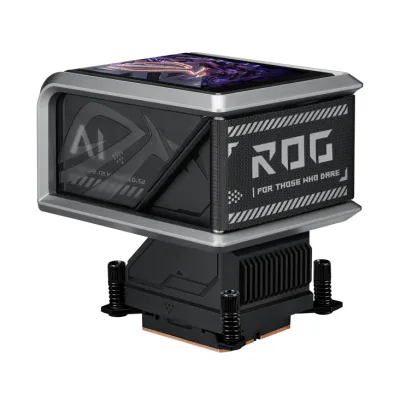

| 水冷頭尺寸 |
133 x 105 x 137 mm CPU 底座材質：純銅 |
| 水管規格 | 加護套橡膠管，管路長度 400 mm |
| 水泵設計 |
Asetek Emma Gen8 V2 水泵（三相同步馬達）＋Precision Mount 精準扣具系統，對 CPU 施加均勻接觸壓力 來源：ASUS 官方商城產品描述；水泵轉速官方未公布 |
| 風扇規格 (Fan Specs) | |
| 風扇配置 | 3 x ROG RYUO IV MF-12C ARGB 風扇（原廠預裝於冷排，串接 Daisy-chain 設計，單線同時供電與燈效，正面＋側面發光 Aura Fan Edge） |
| 風扇尺寸 | 120 x 120 x 25 mm（3 x 120mm 風扇插槽） |
| 風扇轉速 | 500 - 2000 RPM ± 10% |
| 最大風量 | 56.66 CFM |
| 最大靜壓 | 3.56 mmH2O |
| 噪音值 | 30.7 dB(A) |
| 控制模式 | PWM / DC 雙模式 |
| 顯示螢幕與特色 (Display & Special Features) | |
| 顯示螢幕 |
6.67 吋曲面 AMOLED 顯示器，可滑動調整定位 支援裸視 3D 影片效果、自訂動畫與硬體資訊即時顯示 |
| 控制軟體 | ASUS InfoHub（硬體監控、螢幕內容管理工具） |
| 燈光同步 | ARGB 風扇燈效 支援 Aura Sync 神光同步 |
| 安裝便利性 | 出廠預塗散熱膏，冷頭／風扇預組裝＋單線串接，安裝線材由 6 條簡化為 1 條 |
| 平台相容性 (Compatibility) | |
| Intel 平台 | LGA 1851 / LGA 1700 / LGA 1200 / LGA 115x |
| AMD 平台 | AM5 / AM4 |
| 保固與包裝內容 (Warranty & Package Content) | |
| 原廠保固 |
水冷散熱模組：6 年 顯示器模組：2 年（保固分拆，官方規格頁註明） |
| 包裝內容 |
• 一體式水冷散熱器（預塗散熱膏）：1 組 • 120mm ARGB 冷排風扇：3 顆 • ROG 貼紙：1 份 • 螺絲和支架配件包：1 包 • 快速入門指南：1 份 • 感謝卡 (Thank You Card)：1 份 |
