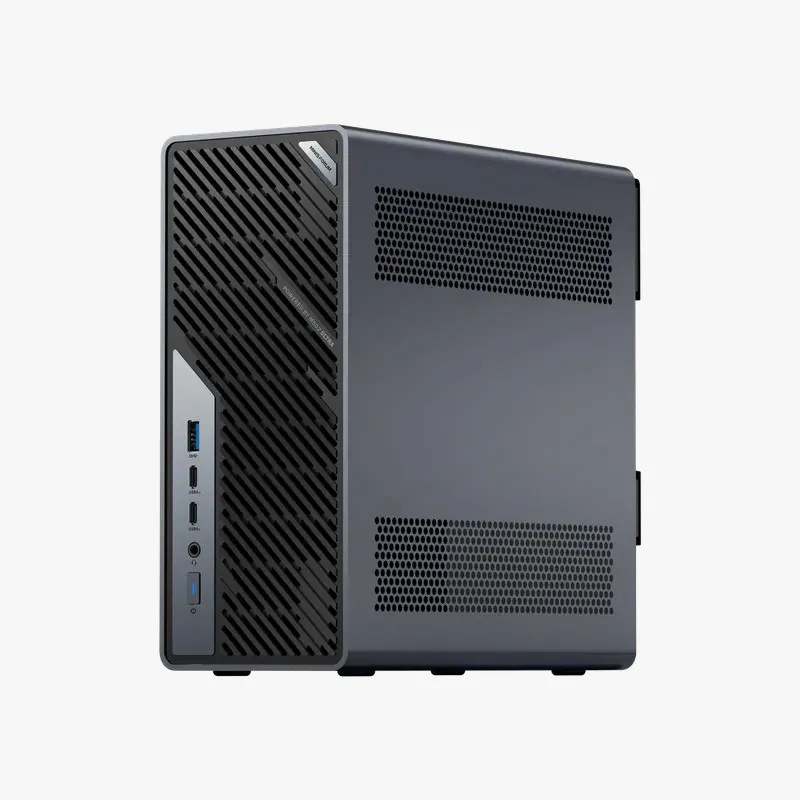

Minisforum MS-02 Ultra mini PC
Minisforum MS-02 Ultra is a highly modular and powerful mini PC designed for professional and enthusiast workloads, featuring an Intel® Core™ Ultra 285HX or Ultra 9 275HX processor and extensive expansion options. Its key strengths are its strong CPU performance, significant expandability (including a PCIe 5.0 x16 slot), and ultra-fast networking capabilities.
- Processor : Powered by Intel® Core™ Ultra 285HX or Ultra 9 275HX, featuring 24 cores to effortlessly handle intensive workloads like AI development, 3D rendering, and 4K video editing.
- Memory : 4 x DDR5 SO-DIMM slots, supporting up to 256 GB total capacity at up to 4800 MT/s (ECC for 285HX ; non-ECC for 275HX), ensuring stability and fault tolerance for mission-critical tasks.
- Storage : Four (285HX model) or Two (275HX model) M.2 2280 PCIe 4.0 x4 slots offer massive storage potential, with total capacity support up to 16/32TB, allowing you to store all your projects and assets in one place.
- Graphics & Expansion : Its revolutionary design includes three PCIe slots: a full-length PCIe 5.0 x16, a full-length PCIe 4.0 x16, and a PCIe 4.0 x4 . Install a dual-slot GPU, a high-speed network card, or other expansion cards simultaneously.
- Ultra-Fast Connectivity : Features next-generation USB4 V2.0 ports on the front panel, delivering blazing 80 Gbps bandwidth for ultra-fast external storage and eGPU connectivity.
- Professional Networking : High-end configurations come pre-installed with a dual 25GbE SFP+ fiber network card (285HX model), alongside a 10GbE and a 2.5GbE RJ-45 port with vPro support, making it a beast for data transfer and remote management.
- Wireless Ready : Equipped with WiFi 7 and Bluetooth 5.4 for the latest wireless speeds and connectivity.
- Rich I/O Ports : Comprehensive connectivity includes HDMI (2.1), multiple USB 3.2 Gen 2 Type-A ports, and a 3.5mm audio jack.
- Advanced Cooling : A server-inspired thermal design enables a maximum 240W total system performance, with both the CPU and GPU capable of a 140W sustained power draw.
- Effortless Maintenance : A slide-out chassis design makes upgrading and maintenance simple and tool-free.
Specifications :
| Model | MS-02 Ultra 275HX / MS-02 Ultra 285HX |
| Processor |
Intel® Core™ Ultra 9 275HX, 24 cores /24 threads, turbo up to 5.4GHz, 36 MB Intel® Smart Cache Intel® Core™ Ultra 9 285HX, 24 cores /24 threads, turbo up to 5.5GHz, 36 MB Intel® Smart Cache |
| AI Engine Capabilities | Up to 13 TOPS |
| Graphics | Intel® Graphics (up to 2.0GHz) |
| Memory |
4 x DDR5 SO-DIMM slots,Up to 4800 MT/s (max. 256GB) Non-ECC (275HX) ; ECC Supported (285HX) Pre-installed : 0GB / 32GB / 192GB (ECC) DDR5 |
| Storage |
2 x M.2 2280 NVMe SSD slots (PCIe 4.0 x4, Up to 16TB) 2 x M.2 2280 NVMe SSD slots (Integrated on the 25GbE NIC; up to 16TB) (285HX) Pre-installed : 0GB / 1TB / 2TB SSD |
| Expansion Slots |
1 x PCIe 5.0 x16 Slot (bifurcation support) 1 x PCIe 4.0 x16 Slot (PCIe 4.0 x4+x4+x4) (275HX) 1 x PCIe 4.0 x16 Slot (Physically populated by a pre-installed 25GbE NIC & 2 x M.2 SSD Slots) (285HX) 1 x PCIe 4.0 x4 Slot |
| Ethernet |
1 x 2.5 GbE RJ-45 LAN (I226-LM, vPro) 1 x 10 GbE RJ-45 LAN (Realtek RTL8127) 2 x 25 GbE SFP+ NIC (Intel E810) (285HX) |
| Wireless Connectivity | Wi-Fi 7 & Bluetooth® 5.4(Intel® BE200 Module, M.2 2230) |
| Video Output |
1 x HDMI (2.1) FRL (8K@60Hz, 4K@120Hz) 2 x USB 4 V2 with DP Alt Mode (8K@60Hz, 4K@120Hz) 1 x USB 4 with DP Alt Mode (8K@60Hz, 4K@120Hz) |
| Audio Output |
1 x HDMI (2.1) 2 x USB 4 V2 1.x USB 4 1 x 3.5mm Audio Jack |
| Audio Input | 3.5mm Combo Jack (TRRS) x 1 |
| I/O Ports |
1 x HDMI (2.1) 2 x USB 4 V2 Type-C (80 Gbps, DP alt mode, PD 15W) 1 x USB 4 Type-C (40 Gbps,DP alt mode, PD 15W) 4 x USB 3.2 Gen 2 Type-A (10 Gbps) 1 x 2.5GbE RJ-45 LAN Port 1 x 10GbE RJ-45 LAN Port 2 x 25GbE SFP+ Ports (Intel E810) (285HX) 1 x 3.5mm Audio Jack |
| Board-Mounted Features |
Button : Clear CMOS Button x 1 Debug LED : CPU x 1 RAM x 1 VGA x 1 Boot x 1 |
| Cooling System |
Heatpipe : Six-heatpipe radiator with Phase Change Material (PCM) Fans : ① 70 x 25 mm + ① 60 x 20 mm (max.speed 5000 RPM) |
| Kensington Lock | Yes |
| Power | AC 100 ~ 240V, 50/60Hz, 6A (350W max.) |
| Operating System | Windows 11 Pro or None |
| Dimensions | 221.5 x 97 x 225 mm |
|
Weight |
3.25 kg (275HX) 3.45 kg (285HX) |
