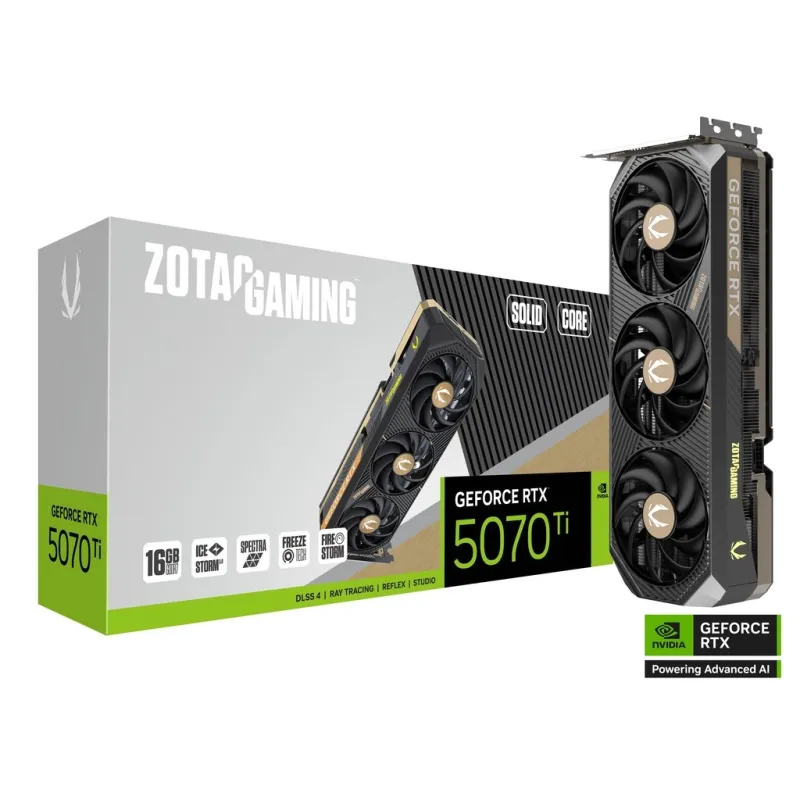

ZOTAC GAMING GeForce RTX 5070 Ti SOLID CORE
ZT-B50710D2-10P
The ZOTAC GAMING GeForce RTX™ 5070 Ti SOLID CORE is a high-performance graphics card that excels in both gaming and content creation with a 2.5 slot design. Featuring NVIDIA‘s cutting-edge Blackwell architecture and DLSS4, and structural enhancements like an all-metal mid-frame, the SOLID CORE is the perfect blend of high performance and build flexibility.
Feature Highlights:
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- IceStorm 3.0 Advanced Cooling
- Vapor Chamber
- BladeLink Fans
- Reinforced Metal Mid-Frame
- FREEZE Fan Stop, Active Fan Control
- SPECTRA RGB Lighting
- Metal Backplate
- Bundled with GPU Support Bracket
- 12V-2x6 Safety Light
-
GPUNVIDIA GeForce RTX 5070 Ti GPU
-
CUDA cores8960
-
Video Memory16GB GDDR7
-
Memory Bus256-bit
-
Engine Clock2452 MHz
-
Memory Clock28 Gbps
-
AI TOPS1406
-
PCI ExpressPCI Express 5.0 x16
-
Display Outputs3 x DisplayPort 2.1b with UHBR20
(up to 4K 480Hz or 8K 165Hz with DSC)
1 x HDMI® Connector
(Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification) -
HDCP Support2.3
-
Multi Display CapabilityQuad Display
-
Recommended Power Supply750W
-
Power Consumption300W *High power consumption, please carefully read your PSU manual before installation.
-
Power Input1 x 12v-2x6 power input
-
DirectXMicrosoft DirectX® 12 Ultimate
-
OpenGL4.6
-
CoolingIceStorm 3.0
-
Slot Size2.5
-
SLINo
-
Supported OSWindows 11 / Windows 10 64-bit (v1809 November 2018 or later)
-
Card Length303.5mm x 115.8mm x 55.7mm / 11.9" x 4.6" x 2.2"
-
AccessoriesUser Manual
2 x 8-pin-to-16-pin cable
GPU Support Stand
-
