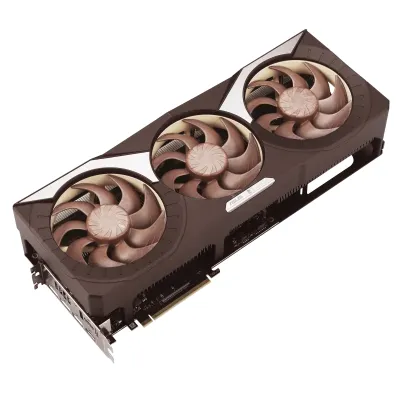

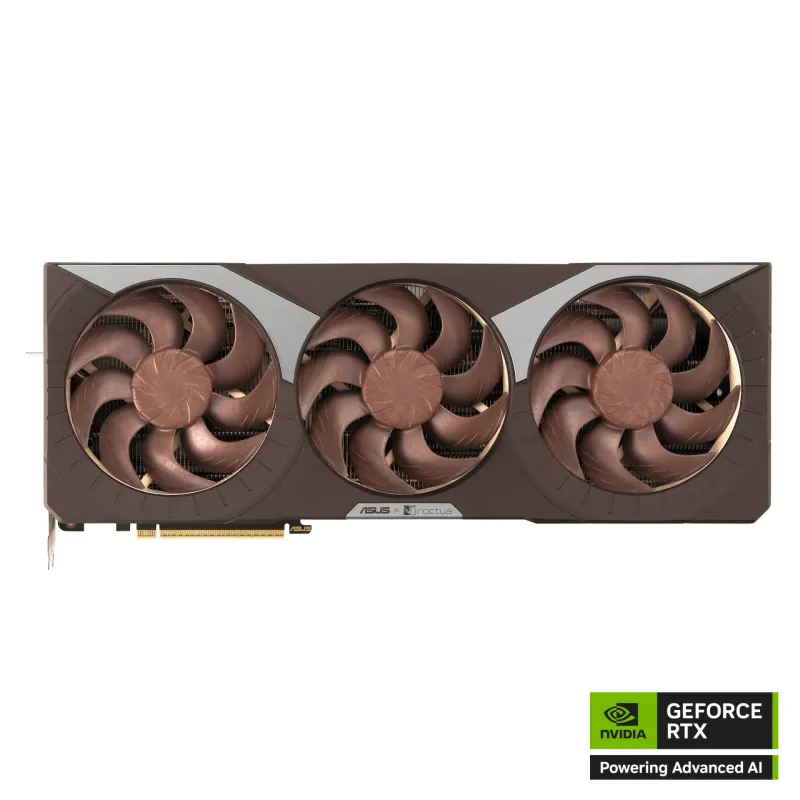

RTX5080-O16G-NOCTUA

Graphic Engine

NVIDIA® GeForce RTX™ 5080

AI Performance

1801 TOPs

Bus Standard

PCI Express 5.0

OpenGL

OpenGL®4.6

Video Memory

16GB GDDR7

Engine Clock

OC mode: 2730 MHz
Default mode: 2700 MHz (Boost Clock)

CUDA Core

10752

Memory Speed

30 Gbps

Memory Interface

256-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 2 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1b)
HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Accessories

1 x Speedsetup Manual
1 x Graphics Card Holder
1 x Thank You Card
1 x Adapter Cable (1 to 3)
1 x ASUS Velcro Hook & Loop

Software

ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

385 × 151 × 80 mm
15.16 × 5.94 × 3.15 inch

Recommended PSU

850W

Power Connectors

1 x 16-pin

Slot

4 Slot

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* Maximum Display Support is specifically applied to simultaneous display situation.
