描述
| WIRELESS | |
|---|---|
| Standards |
Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds |
AX6600 5 GHz: 4804 Mbps (802.11ax, HE160) 5 GHz: 1201 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range |

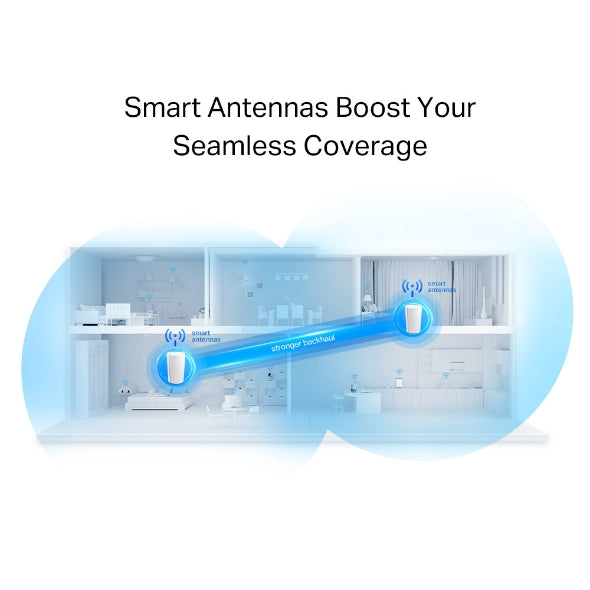

4-6+ Bedroom Houses (2-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage AI-Driven Mesh Intelligently learns the network environment to provide ideal Wi-Fi unique to your home 4× High-Gain Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas 2× Smart Antennas (Internal) Smart antennas auto-detect other Deco units to establish a stronger backhaul between one another to boost WiFi coverage Tri-Band Provides an extra 5 GHz band working exclusively as the strong backhaul, strengthening the WiFi coverage Beamforming Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity |
Very High Tri-Band Distribute devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 8 Streams More than enough bandwidth for connected devices |
| Working Modes | Router Mode Access Point Mode |
| HARDWARE | |
|---|---|
| Processor | 1.5 GHz Quad-Core CPU |

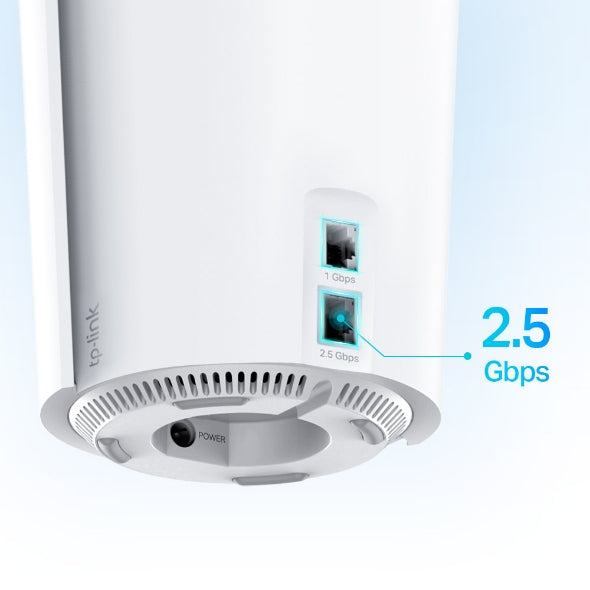

| Ethernet Ports | 1× 2.5 Gbps Port 1× Gigabit Port *Per Deco Unit Supports WAN/LAN auto-sensing |
| Buttons | Reset Button |
| SECURITY | |
|---|---|
| WiFi Encryption | WPA-Personal WPA2-Personal WPA3-Personal |
| Network Security | SPI Firewall Access Control HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Service Kits | HomeShield Learn More> |
| Parental Controls |
HomeShield Parental Controls Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service |
HomeShield QoS QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link |
| Management | Deco App |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 5.1 × 4.8 × 8.3 in (130 × 123 × 210 mm) |
| Package Contents |

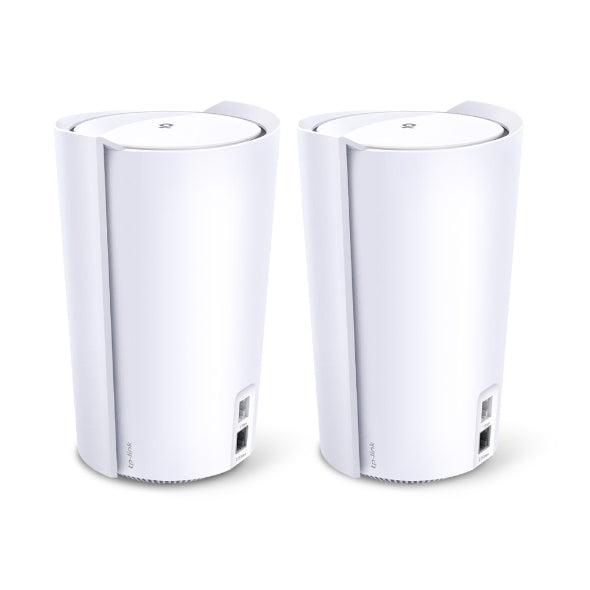

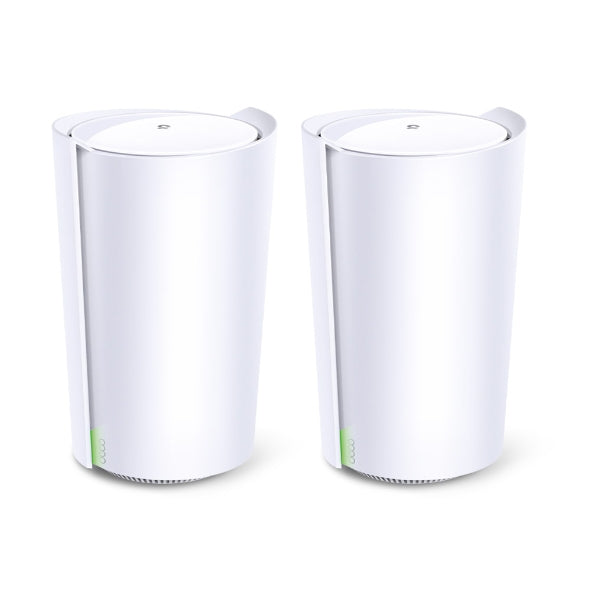

Deco X90 (2-pack) 2 Deco X90 Units 1 RJ45 Ethernet Cable 2 Power Adapters 1 Quick Installation Guide Deco X90 (1-pack) 1 Deco X90 Unit 1 RJ45 Ethernet Cable 1 Power Adapter 1 Quick Installation Guide |
| OTHERS | |
|---|---|
| System Requirements | Android 4.4 or later iOS 9.0 or later |
| Certifications | CE, EAC, FCC, IC, RoHS, RCM |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: <20 dBm (2.4 GHz) <30 dBm (5 GHz) FCC: <30 dBm (2.4 GHz) <30 dBm (5 GHz) |
