Meshroom D

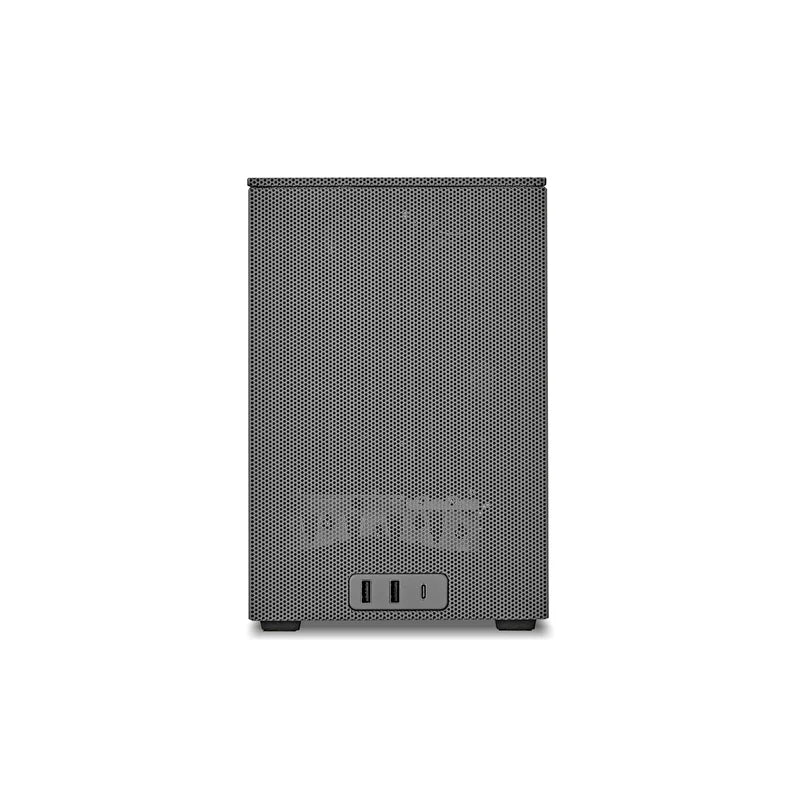

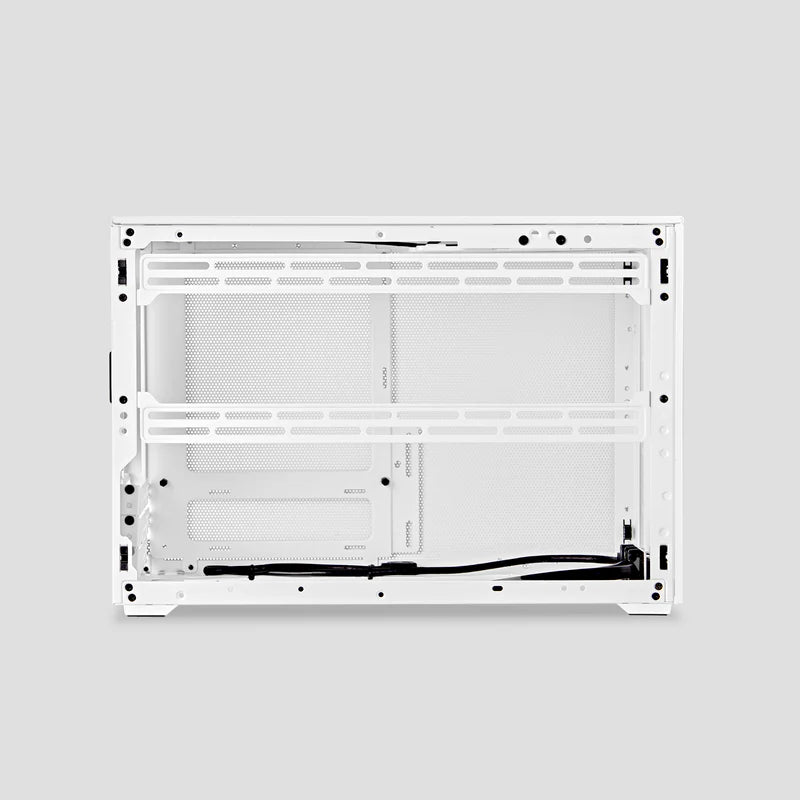

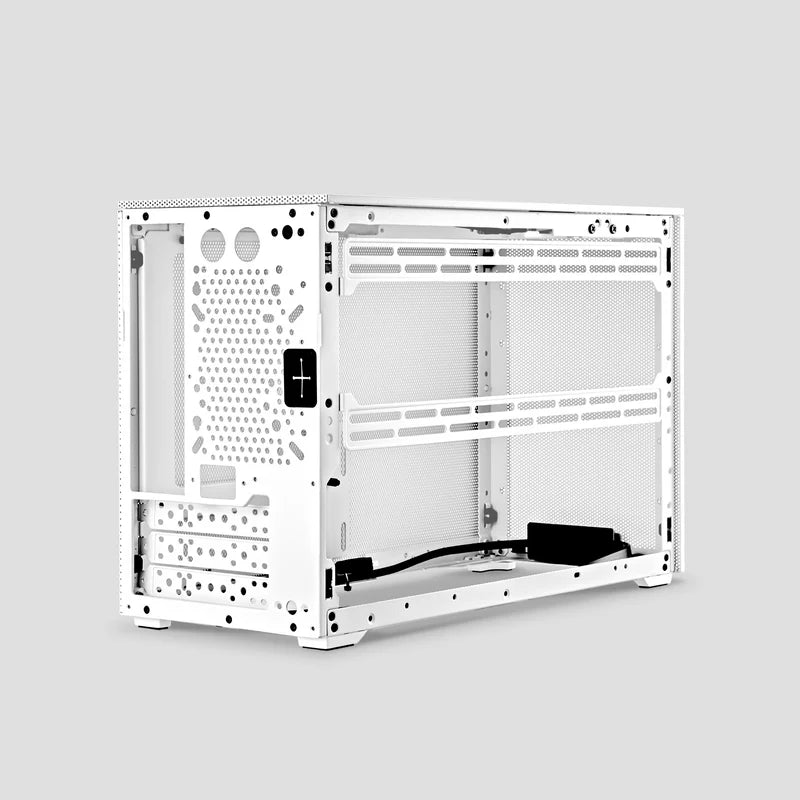

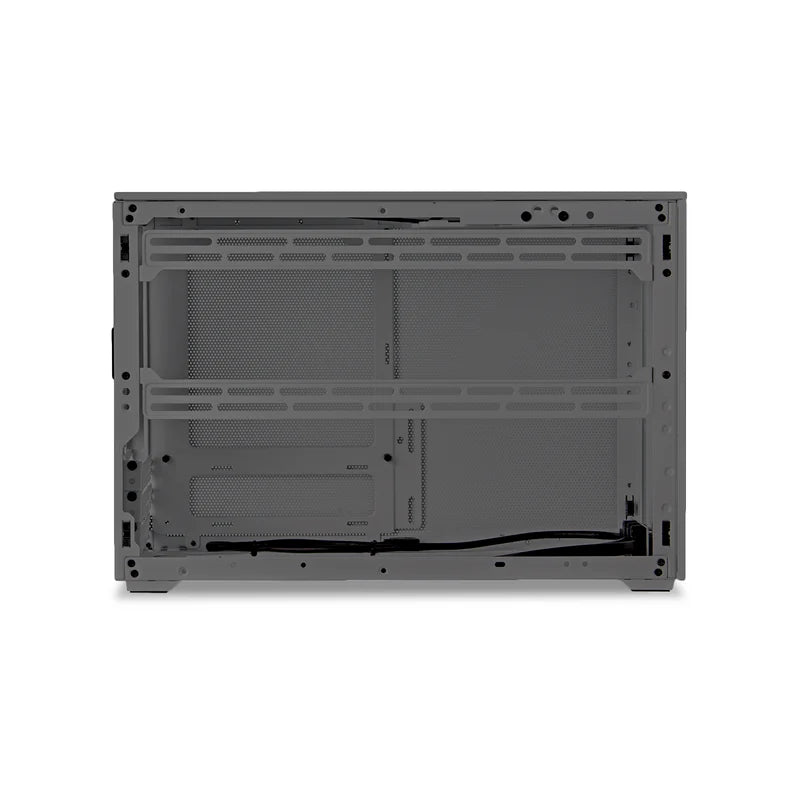

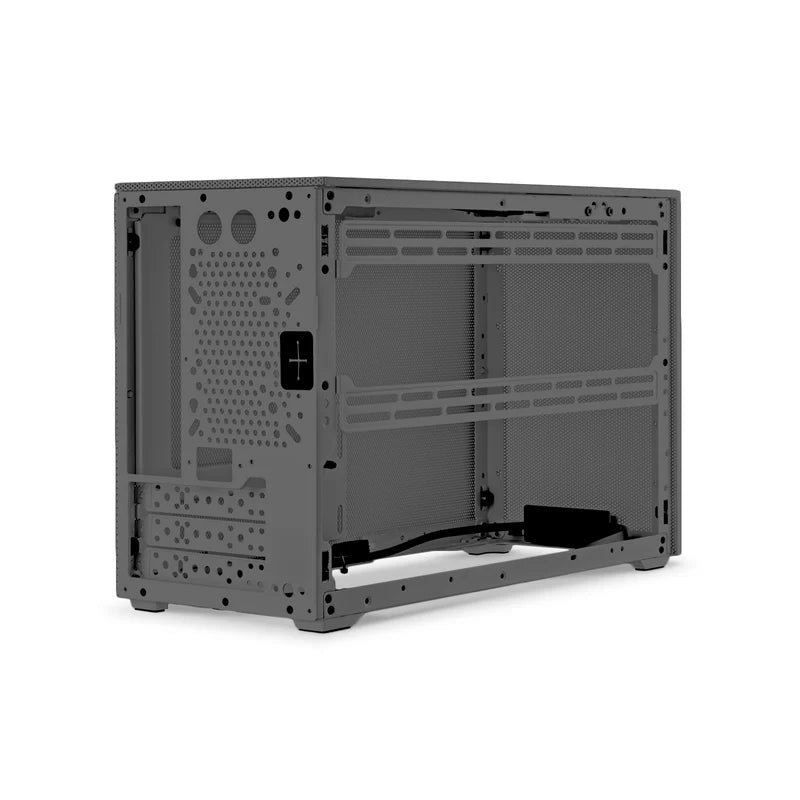

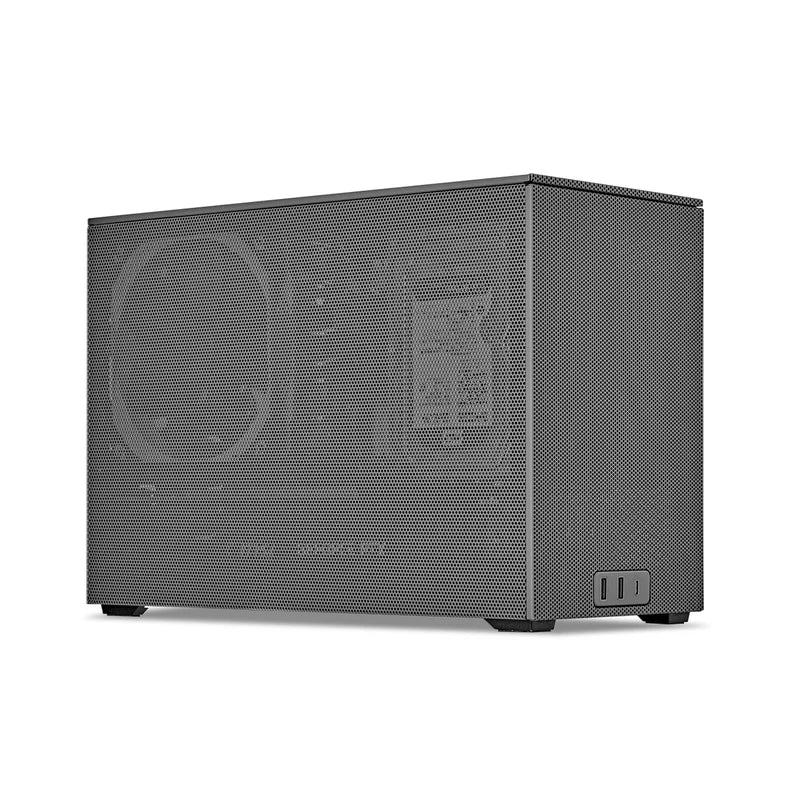

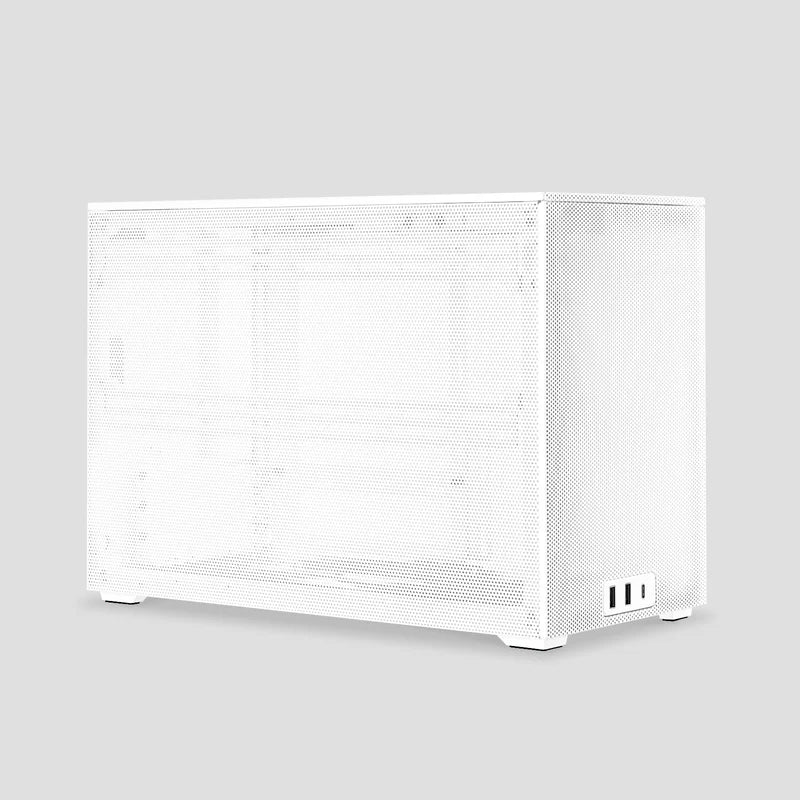

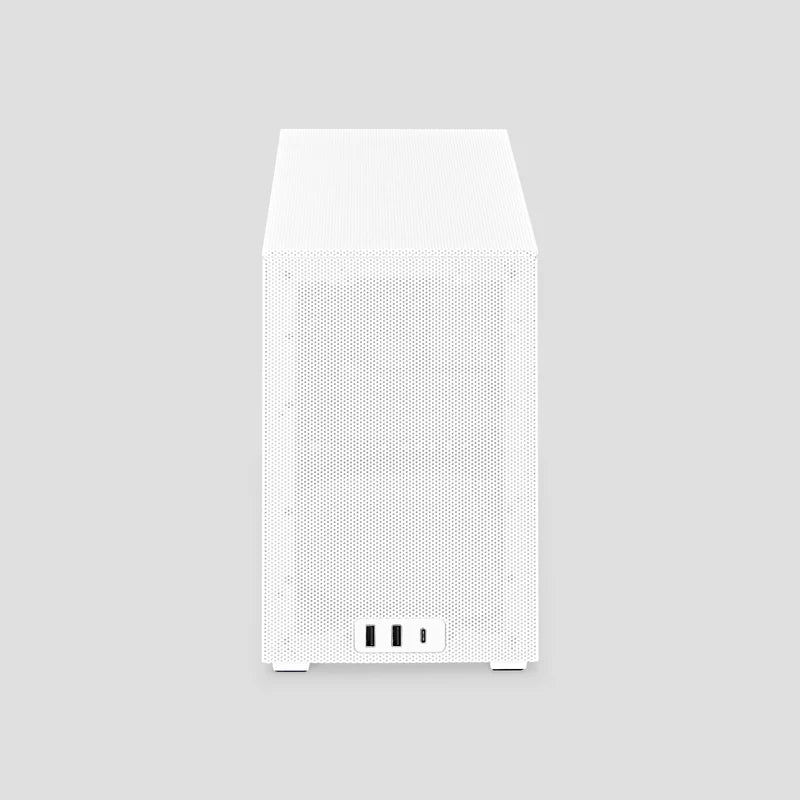

Introduce a new horizon in small form factor case design - Meshroom D, covered 4-side by extreme 1.5mm fine full mesh panels prompting optimized ventilation, engineered to house high-end components and unleash maximum performance during even the most intense tasks in a 14.97 liters volume. Featuring flexible space arrangement, the case is a master of build versatility able to accommodate a full size GPU up to 3.4 slot with highly flexible power supply options up to 150mm. Designed for custom loop enthusiasts, it boasts dedicated room for dual radiators and a DDC pump. Crafted in a stylish steel exterior, Meshroom D harmonizes aesthetics with functionality, providing an adaptable solution that complements any workspace.

Product condition guidance:

• New: Completely unused, in pristine condition with original packaging and all components included.
• Good: Excellent working condition with all parts intact. May show minor signs of handling or packaging wear.
• Acceptable: Fully functional but may have noticeable packaging wear or missing minor accessories. Suitable for cost-effective options.

Final sale items, Open-box/Good Condition, personalized/customized items, and gift cards are not eligible for return.

Unleash Graphics Power

Designed to Supported GPUs up to 3.4 slots, 325mm in length, 136mm in width

Mesh for Optimal Ventilation

Breathable, mesh panels enables higher airflow and better cooling

More Room for Cooling

Supports CPU cooler heights up to 142mm

Small in Size, Big on Capability

Minimized footprint with ultimate potential

Unleash Your Build with MATX

Support MATX motherboard with extra extender bracket for diverse installation configurations.

Custom loop Ready

Featuring 240mm dual radiator custom loop water-cooling design and assuring with a ddc pump simultaneously.

Specifications

Expansion slots

3

Front IO ports

1 x USB 3.1 Type-C, 2 x USB 3.0

Rear IO ports

Power button

Top and front panel

Fine mesh panels

Side panel

Fine mesh panels

Tool-less push-to-lock

Both side, top, and front panels

2.5" drive mounts

6 x 2.5” HDD (with SFX PSU); 4 x 2.5” HDD (with ATX PSU)

3.5" drive mounts

3 x 3.5” HDD (with SFX PSU); 2 x 3.5” HDD (with ATX PSU)

Left side fan mounts

2 x 120/140 mm (with PSU mounted on right or top)

Front fan mounts

1 x 120/140 mm (with SFX PSU mounted on top)

Rear fan mounts

1 x 80/90 mm

Dust filters

Bottom

Compatibility

Motherboard compatibility

Mini-ITX, Mini-DTX; MATX (extra extender bracket needed)

Power supply type

SFX, SFX-L, ATX

Power supply max length

150 mm (PSU mounted on left);
140 mm (PSU mounted on right);
130 mm (PSU mounted on top)

CPU cooler max height

142 mm (without side fan bracket installed);
138 mm (with side fan bracket installed)

GPU max length

With 3.3 slots (67mm): 323 mm length and 140 mm width;
With 2.2 slots (44mm): 336 mm length and 140 mm width

Left side radiator

1 x 240/280 mm (max 332 mm length, 144 mm wide, 65 mm thick with fans)

Bottom radiator

45 mm thickness of 240/280 mm radiator + fans allow GPU in 22 mm thick

General

Case dimensions

247 x 167 x 363 mm / 9.72 x 6.57 x 14.29 inch

Package dimensions

415 x 220 x 310 mm / 16.34 x 8.66 x 12.2 inch

Net weight

2.8 kg / 6.17 lb

Gross weight

3.35 kg / 7.39 lb

Volume

14.97 liters

Case material

SGCC powder coated steel, plastic, PVC filter

Package contents

Case, accessory box, user manual

Warranty

2 years
