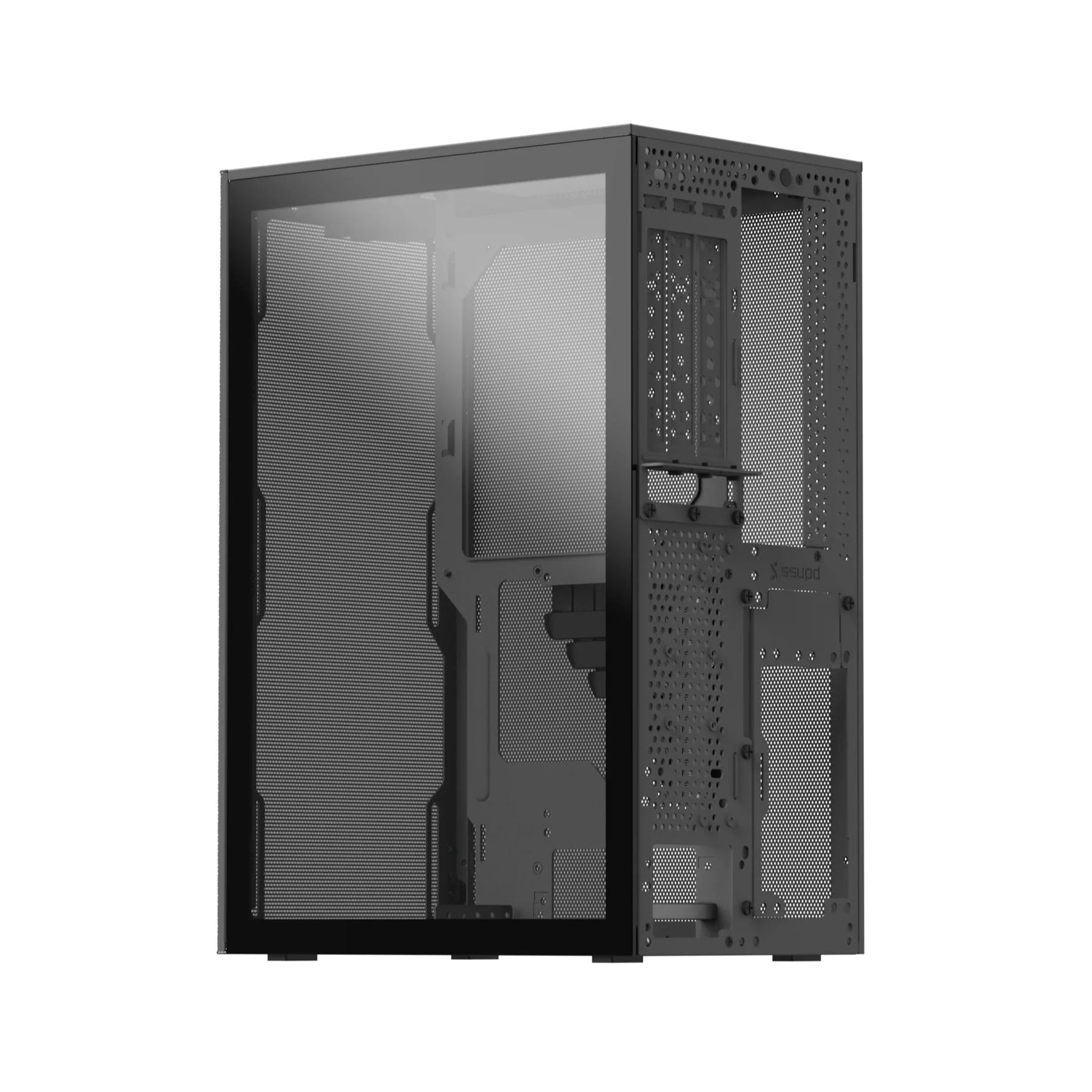

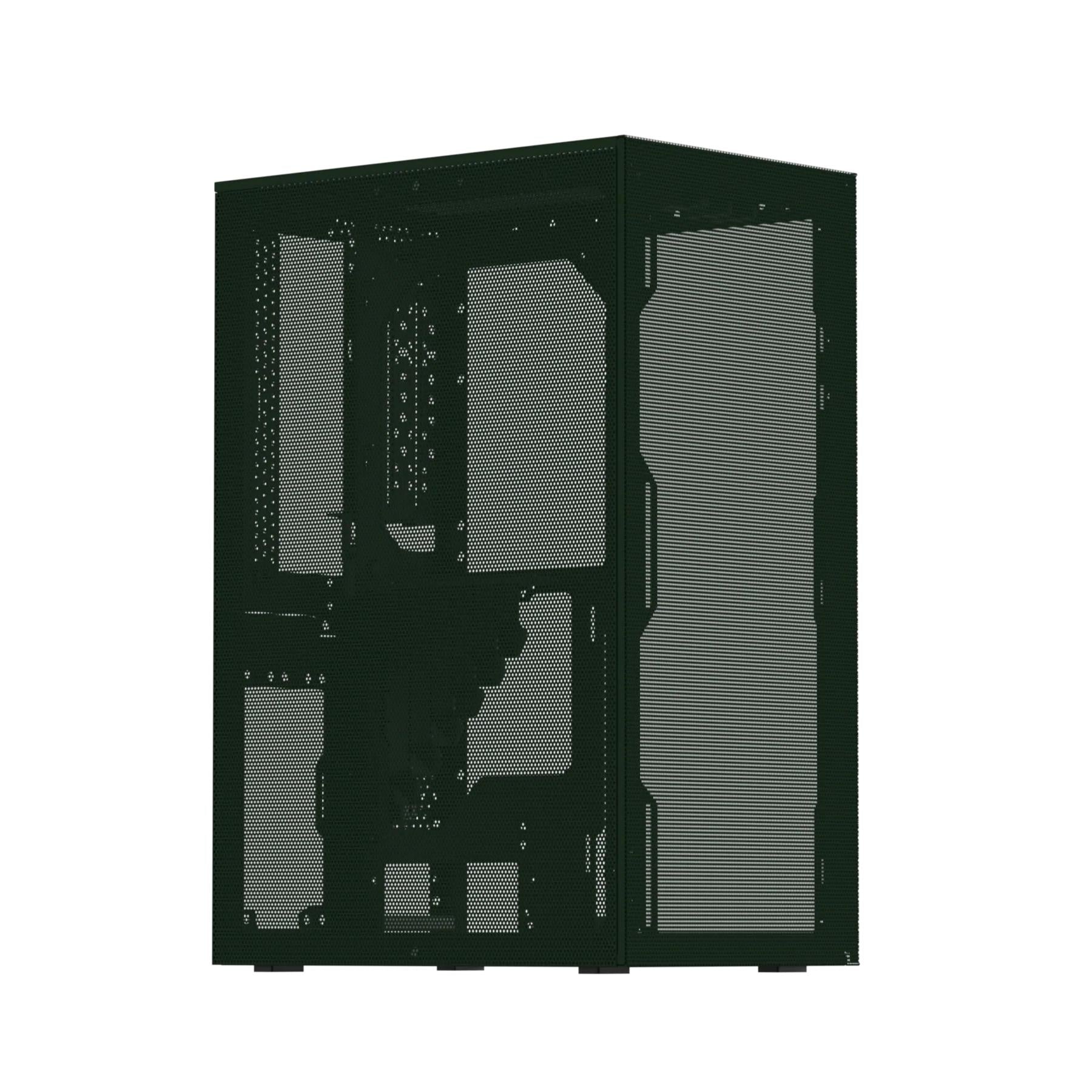

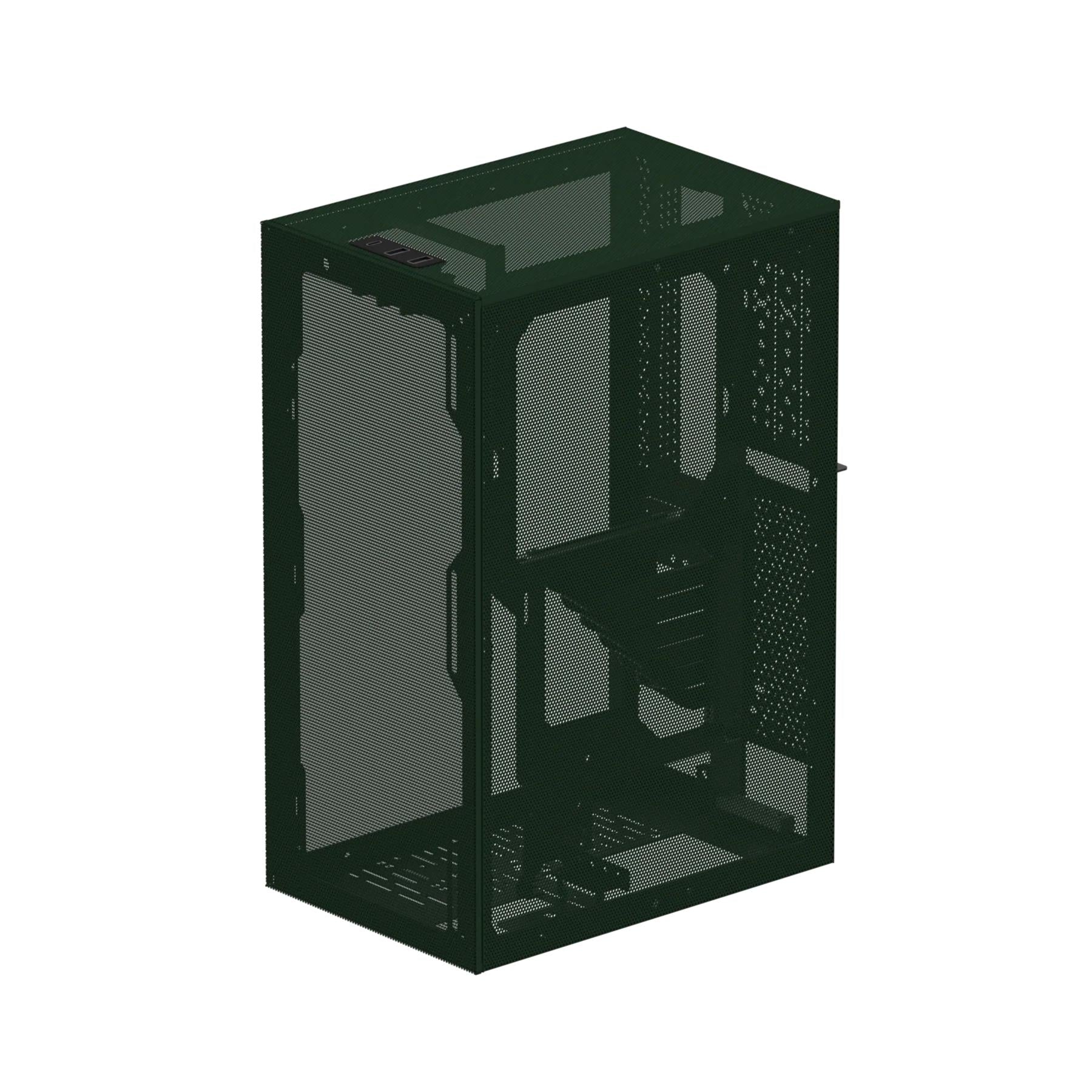

MESHROOM S
Evolves from Meshlicious, Meshroom S realizes a bigger dream for your build.

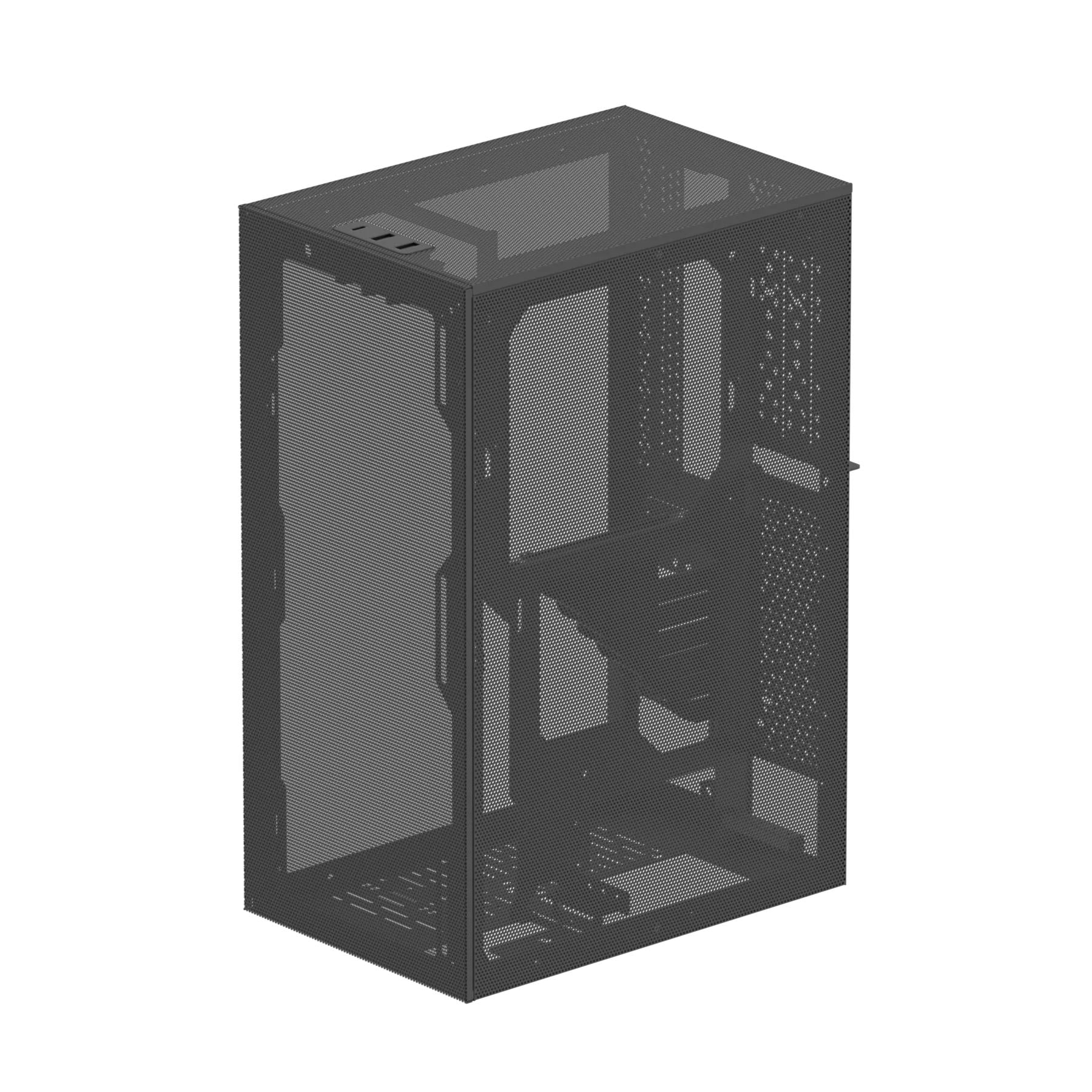

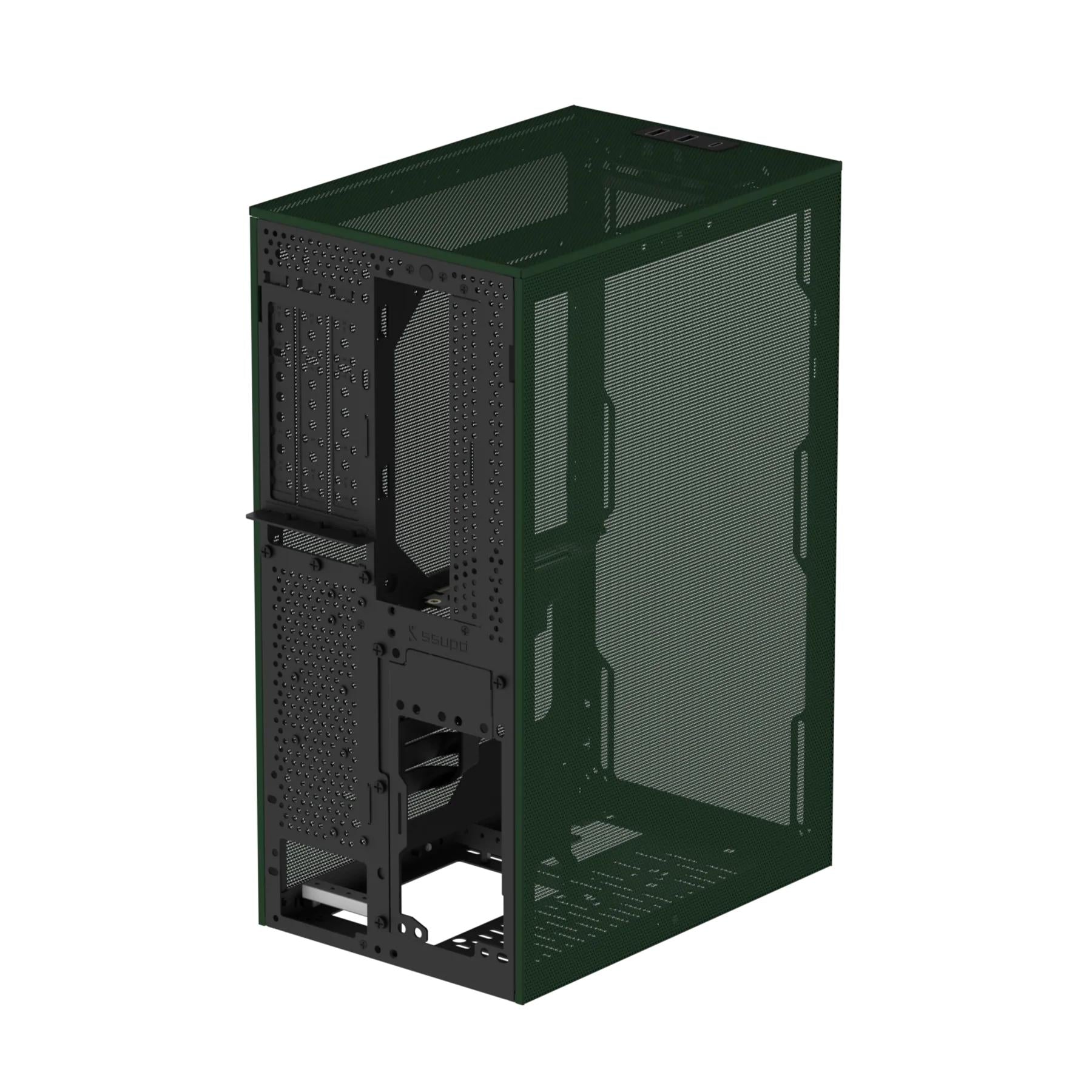

- Fine mesh panels and well ventilated
- 14.93 liters in size
- Support regular size hardware
- High quality powder coated SGCC steel

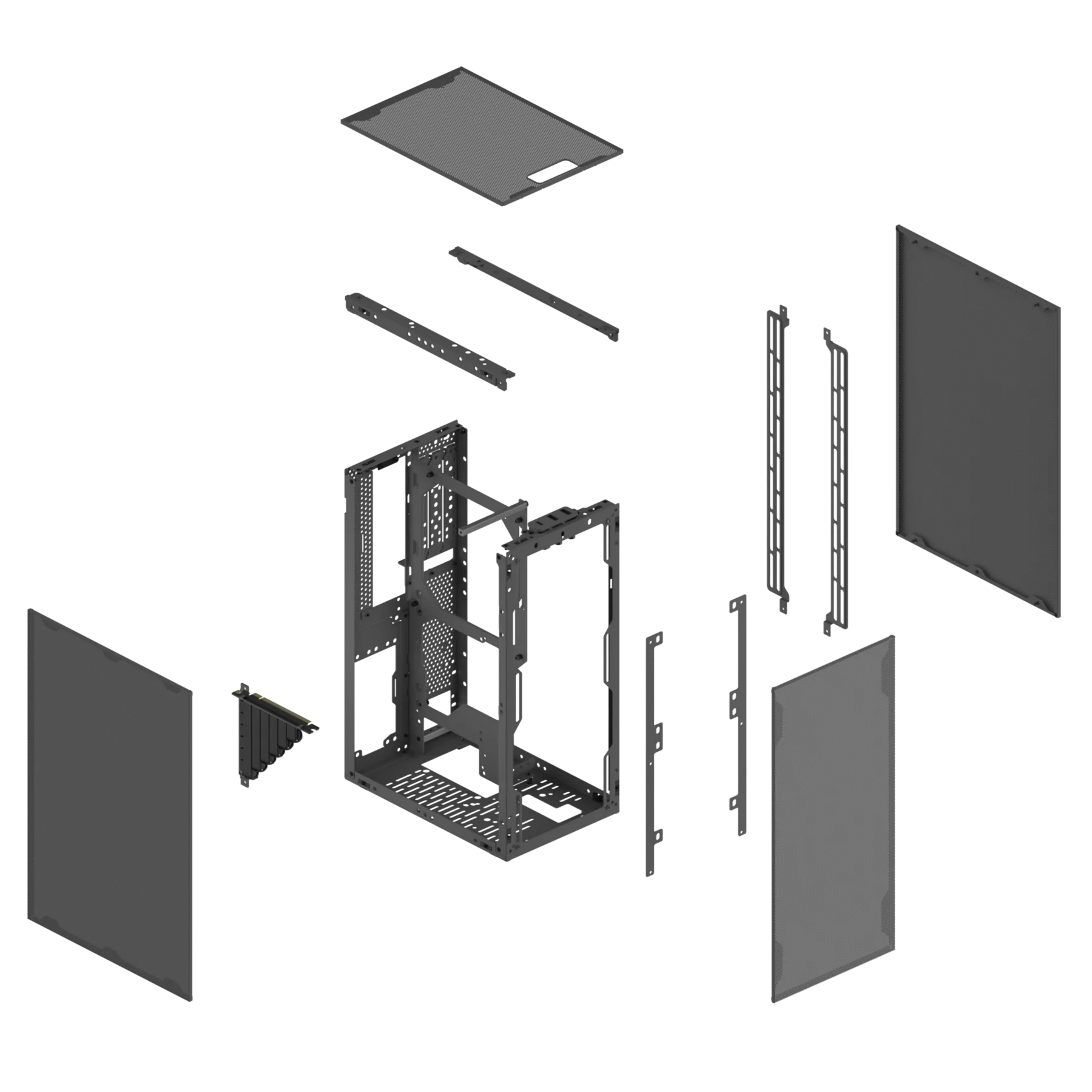

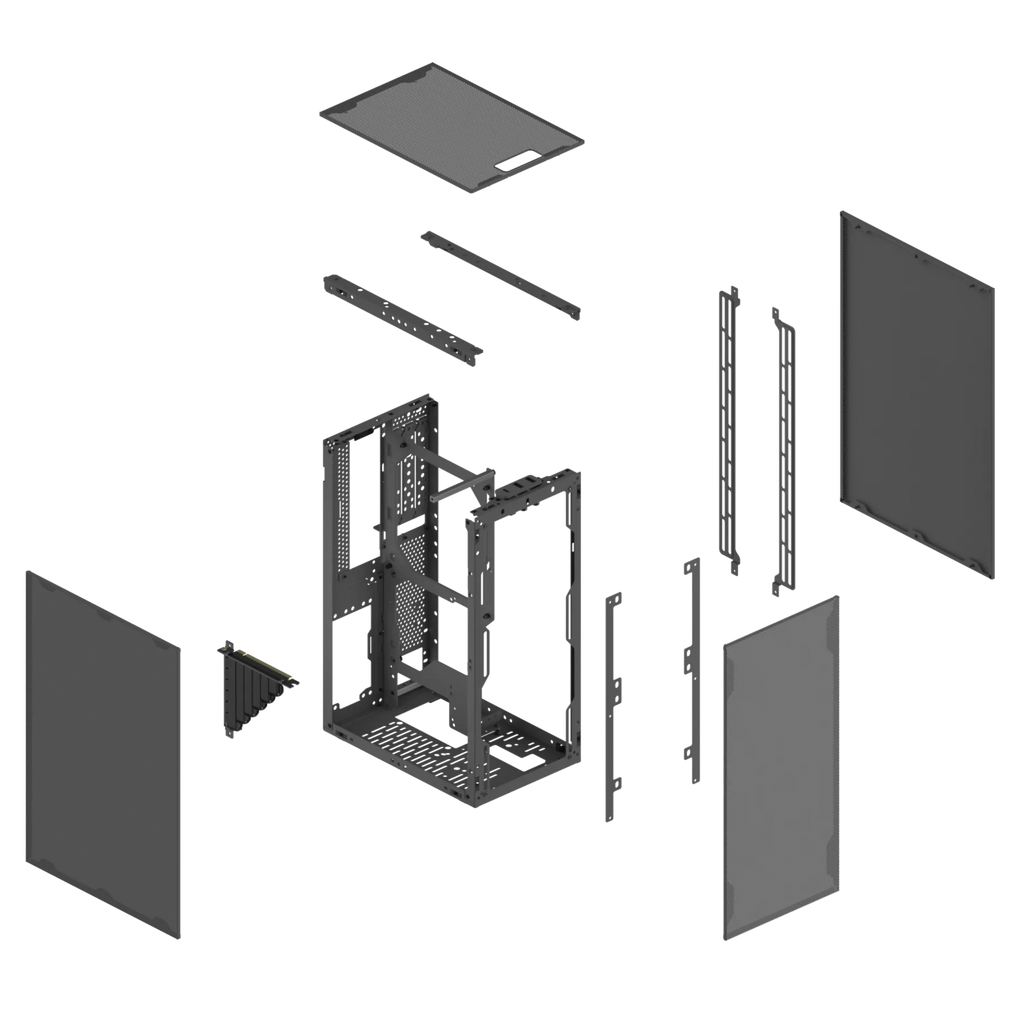

- Tool-less external panels and easy to assemble
The 4.0 version comes with a 14 cm PCIe 4.0 riser cable. It is fully tested and compatible with newly released NVIDIA RTX3000 series GPU, AMD RX6000 series GPU and Intel Z690 motherboards.
The package includes one PCIe riser cable and one HDMI 2.0 cable.
Specifications
Expansion slots
Full length GPU : up to 4 slots; small form factor GPU : 3 slots
Front IO ports
2 x USB 3.2 Gen 1; 1 x Type-C 3.2 Gen 2
Tool-less push-to-lock
Both side, top, and front panels
2.5” drive support
Full length GPU: 3 x 2.5” SSD; small form factor GPU: 7 x 2.5” SSD
Front fan
2 x 120 mm, 2 x 140 mm
Right side fan
3 slots GPU mode:
25 mm thick fans with 1.9 slot (39 mm) GPU； 15 mm thick fans with 2.4 slot (49 mm) GPU
25 mm thick fans with 1.9 slot (39 mm) GPU； 15 mm thick fans with 2.4 slot (49 mm) GPU
PCIe standard
PCIe Gen 4.0 x 16
Rear IO ports
Power Botton
Side panel
Two fine mesh panels
3.5” drive support
Max 2 x 3.5” HDD (with small form factor GPU)
Top fan
1 x 120 mm x 15 mm thick (GPU max length : 317 mm)
Compatibility
Motherboard compatibility
Mini-ITX; Mini-DTX, M-ATX and ATX (PCIe cable not included package)
PSU max length
Up to 170 mm ATX PSU (with front fan only), up to 160 mm ATX PSU (with upward tubing AIO), 140 mm ATX PSU (with downward tubing AIO)
Front radiator
1 x 240, 1 x 280 mm (up to 322 mm length, 143 mm width, 63 mm thick with fans, dependent on GPU position / type)
Front fan
2 x 120 mm, 2 x 140 mm
Right side radiator
4 slots GPU mode: 1 x 240 radiator (20 mm thick) with 25 mm thick fans allow 1.8 slot (38 mm) thick GPU；
1 x 240 radiator (28 mm thick) with 25 mm thick fans allow 1.4 slot (30 mm) thick GPU；
1 x 240 radiator (28 mm thick) with 15 mm thick fans allow 1.9 slot (40 mm) thick GPU
1 x 240 radiator (28 mm thick) with 25 mm thick fans allow 1.4 slot (30 mm) thick GPU；
1 x 240 radiator (28 mm thick) with 15 mm thick fans allow 1.9 slot (40 mm) thick GPU
Power supply type
SFX, SFX-L, ATX
CPU cooler max height
3 slots GPU mode : max 73 mm height
4 slots GPU mode : max 53 mm height"
4 slots GPU mode : max 53 mm height"
Right side fan
3 slots GPU mode: 25 mm thick fans with 1.9 slot (39 mm) GPU；
15 mm thick fans with 2.4 slot (49 mm) GPU
15 mm thick fans with 2.4 slot (49 mm) GPU
Top fan
1 x 120 mm x 15 mm thick (GPU max length : 317 mm)
GPU max length
Full length GPU mode: max 332 mm length (GPU baffle not included)；342 mm length (GPU baffle included) and 155 mm width
Small form factor GPU mode: max 211 mm length (GPU baffle not included) without front radiator installed, and PCIe cable not included package (cards up to 60mm thick)
ATX MB GPU low position: max 316 mm length (GPU baffle not included) and 124 mm width (cards up to 60mm thick)
ATX MB GPU high position: max 307 mm length (GPU baffle not included) and 124 mm width (cards up to 60mm thick)
Small form factor GPU mode: max 211 mm length (GPU baffle not included) without front radiator installed, and PCIe cable not included package (cards up to 60mm thick)
ATX MB GPU low position: max 316 mm length (GPU baffle not included) and 124 mm width (cards up to 60mm thick)
ATX MB GPU high position: max 307 mm length (GPU baffle not included) and 124 mm width (cards up to 60mm thick)
Dimensions
Case dimensions (L x W x H)
247 mm x 167 mm x 362 mm / 9.72 inch x 6.57 inch x 14.25 inch
Net weigh
3.2 kg / 7.05 lb
Volume
14.93 liters
Package dimensions (L x W x H)
415 mm x 220 mm x 310 mm / 16.34 inch x 8.66 inch x 12.2 inch
Gross weight
3.75 kg / 8.27 lb
General
Package contents
Meshroom S, accessory box included screws and parts, user manual, PCIe cable, monitor connect cable
Case material
SGCC steel, Plastic, Mesh
Warranty
1 year on case, PCIe riser cable, monitor connect cable, pc case parts, and front / rear IO ports
