Overview
Details
The C750 Bronze offers entry-level high-performance power for any gamer looking to start their PC gaming journey.
- Up to 88% efficiency at 50% load exceeds 80 Plus Bronze standards, reducing energy waste and heat.

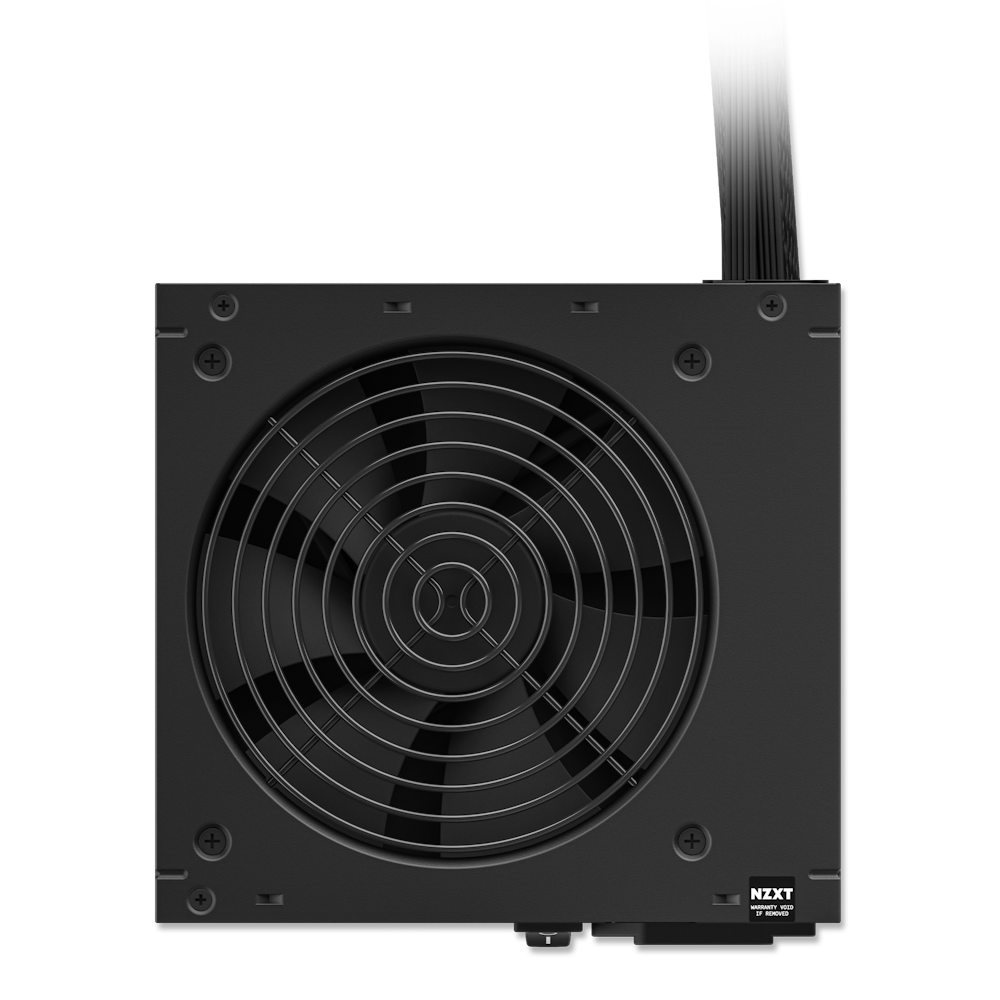

- A 120mm fluid dynamic bearing fan delivers low-noise performance with enhanced longevity.
- DC-to-DC conversion ensures consistent power delivery to GPUs up to 220W, such as the RTX 3070.
- Tested for safety at up to 40°C, and features over-temperature and over-current protections.
- Main PSU cables are nylon-sleeved for durability with a matte black finish to match any build.
Inside the Box
-
NZXT C750 Bronze PSU1
-
24-pin ATX Power Cable1
-
8-pin (4+4) CPU Power Cable2
-
8-pin (6+2) PCIe Power Cable1
-
SATA Cable1
-
Peripherals Cable1
-
AC Power Cord1
-
6-32 Screws4
Reliable Power
Highly Efficient
Quiet Cooling
Enhanced Safety
Durable & Sleek
Tech Specs
OUTPUT CONNECTOR(S)
-
24-pin ATX Power:1
-
4+4-pin CPU power:2
-
6+2-pin PCIe power:2
-
SATA Power:4
-
Peripherals:4
CABLE SPECS
-
24-pin ATX power:600mm, Nylon sleeving
-
4+4-pin CPU power:700mm, Nylon sleeving
-
6+2-pin PCIe power:650 + 150mm, Nylon sleeving
-
SATA power:500 + 150 mm
-
Peripherals:500 + 150 mm
AC INPUT RATING
-
100 - 240Vac:10A-5A 50Hz-60Hz
DC OUTPUT RATING
-
+3.3V:20A (120W)
-
+5V:20A (120W)
-
+12V:62.5A (750W)
-
-12V:0.3A (3.6W)
-
5Vsb:2.5A (12.5W)
-
Total:750W
OPERATION
-
PF Correction:Active@0.96
-
MTBF:100,000 hours
-
Operation Temperature:0 to 40°C
ENERGY EFFICIENCY
-
Rating:80 Plus Bronze
-
10% loading:86.2% @115Vac
-
20% loading:88.97% @115Vac
-
50% loading:88.7% @115Vac
-
100% loading:83.2% @115Vac
FAN SPECS
-
Dimensions:120 x 120 x 25 (mm)
-
Speed:2400 ±10% RPM
-
Airflow:64.4 CFM (Tpy.)
-
Noise:39.92 dBA max
-
Bearing:FDB (Fluid Dynamic Bearing)
GENERAL
-
Dimensions (W x L x H):150 x 140 x 86mm
-
Material(s):Steel, PCB and Plastic
-
Compliance Standard:ATX12V v2.53 / EPS12V v2.92
-
Regulation & Certification:FCC, Canada, CE, CB(IEC 62368-1), BIS, UKCA, CCC, BSMI, Mexico NOM
-
Hazardous Materials:Taiwan and China RoHS Table, CP65, EU REACH
-
Protections:OVP (Over Voltage Protection) UVP (Under Voltage Protection) SCP (Short Circuit Protection) OTP (Over Temperature Protection) OPP (Over Power Protection) OCP (Over Current Protection)
WARRANTY
-
Warranty:3 years
-
Model Number:PA-7B2BB / PS-2202
