Tech Specs
Key Specs
-
Dimensions
W 150mm x L 140mm x H 86mm
-
Material(s)
Steel, PCB and plastic
-
Compliance Standard
ATX12V v2.4 / EPS12V v2.92
-
AC Input Rating
100V-240V 8A-4A 50Hz-60Hz
DC Output Rating
-
Voltage
+3.3V / +5V / +5VSB /+12V / -12V
-
Max Load
20A / 20A / 2.5A / 45.5A / 0.3A
-
Voltage Regulation
±5% / ±5% / ±5% / ±5% / ±10%
-
Ripple & Noise
< 50 mV p-p / < 50 mV p-p / < 50 mV p-p / < 120 mV p-p / < 120 mV p-p
-
Output Power (watt)
110 / 110 / 12.5 / 546 / 3.6
-
Total
550

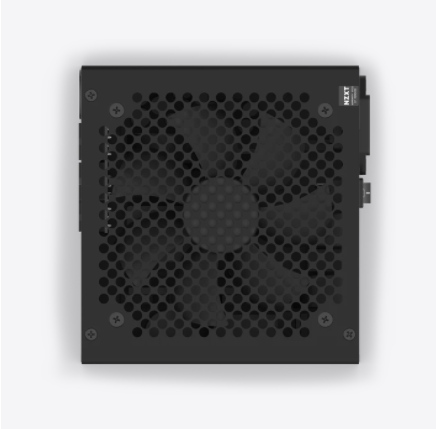

Fan Specs
-
Dimensions
120 x 120 x 25 (mm)
-
Speed
2400 ±10% RPM
-
Airflow
72.90 CFM
-
Noise
<44 dBA
-
Bearing
FDB (Fluid Dynamic Bearing)
Energy Efficiency
-
Rating
80 Plus Bronze
-
10% loading
82%
-
20% loading
83%
-
50% loading
87%
-
100% loading
83%
Operation
-
PF Correction
Active@0.96
-
MTBF
100,000 hours
-
Operation Temperature
0 to 40°C

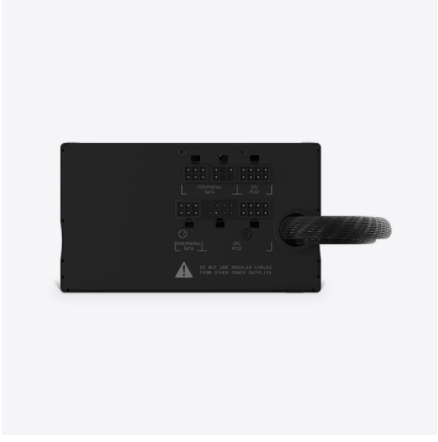

Output Connector(s)
-
24-pin ATX Power
1
-
8-pin CPU Power
2
-
8-pin PCIe Power
2
-
SATA Power
2
-
Molex Power
1
General
-
Regulations & Certifications (EMC & Safety)
CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI R33245/ Australia RCM / EAC / UKCA / WEEE /
-
Warranty
5 years
-
Hazardous Materials
RoHS & China RoHS
