描述
Product Details
Notes and warnings

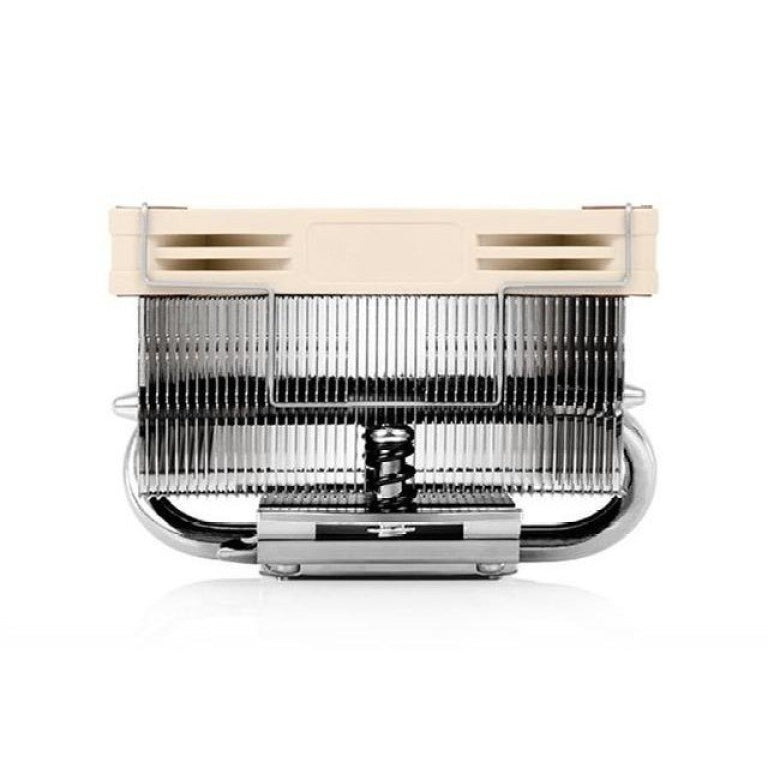

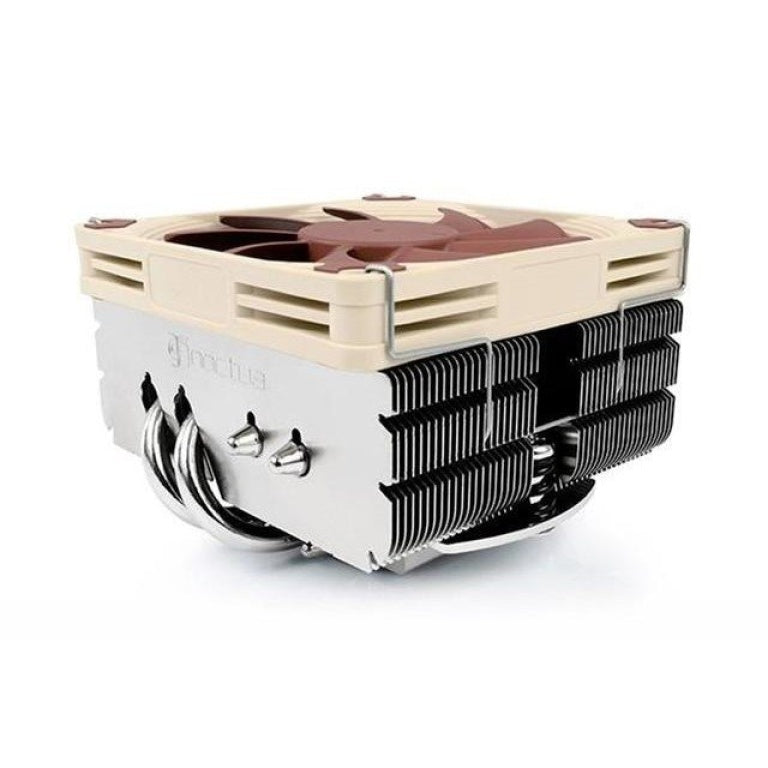

The NH-L9x65 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads. Please consult our CPU compatibility list to find out whether the NH-L9x65 is recommended for your CPU.
Cooler Specification
Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4 (included since 2019, older coolers require NM-AM4)
Height (without fan)
51 mm
Width (without fan)
95 mm
Depth (without fan)
95 mm
Height (with fan)
65 mm
Width (with fan)
95 mm
Depth (with fan)
95 mm
Weight (with fan)
413 g
Material
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
67
Max. TDP
see NSPR
Fan compatibility
92x92x14, 92x92x25

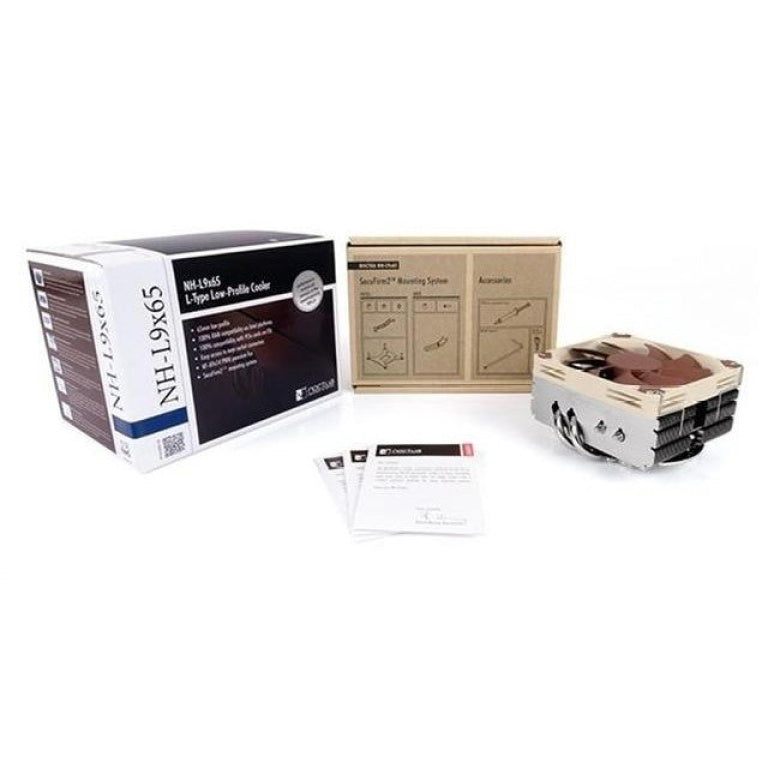

Scope of delivery
- NF-A9x14 PWM premium fan
- Low-Noise Adaptor (L.N.A.)
- NT-H1 high-grade thermal compound
- SecuFirm2™ Mounting Kit
- Noctua Metal Case-Badge
6 Years
FAN Specification
Model
Noctua NF-A9x14 PWM
Bearing
Max. rotational speed (+/- 10%)
2500 RPM
Max. rotational speed with L.N.A. (+/- 10%)
1800 RPM
Min. rotational speed (PWM, +/-20%)
600 RPM
57,5 m³/h
40,8 m³/h
Max. acoustical noise
23,6 dB(A)
Max. acoustical noise with L.N.A.
14,8 dB(A)
Input power
2,52 W
Voltage range
12 V
MTTF
> 150.000 h
