描述
EXTREME COOLING
3 TYPES OF PUMP COVER
45° ROTARY FITTINGS
PRE-INSTALLED DESIGN
SINGLE STACK FIN RADIATOR
ARGB FAN
L-CONNECT 3 CONTROL
6 YEARS WARRANTY
AVAILABLE IN TWO FAN OPTIONS

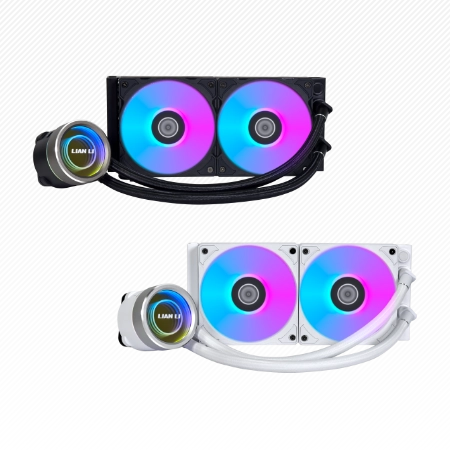

TWO SIZES /TWO COLORS
The Galahad II Trinity series comes with pre-installed fans on the radiator for your convenience. The RGB version is available with 2 kinds of fans:
①
With High Performance RGB Fan
Pushing air through the radiator effectively while maintaining the stunning looks of RGB fans.
360 Black / White
240 Black / White
②
With UNI FAN SL-INF
Easily match the AIO fans to your case fans with this visually stunning option
360 Black / White
240 Black / White
Note:
The UNI FAN SL-INF controller included in Galahad II Trinity SL-INF version allows expansion of UNI FAN SL-INF single pack (no triple pack) by using included 5V 3pin cables.
IMPROVED DESIGNS, IMPROVED PERFORMANCE
Compared to the Galahad AIO, the Galahad ll Trinity series shows significant improvement in cooling performance thanks to the many design changes that were introduced.
Coolant Pathway
Staightened
To reduce waterflow Resistance
Copper Plate Fin Spacing
13% larger
To prevent substance buildup over time.
Tube diameter
20% bigger
To increase waterflow for faster heat dissipation.
Pump motor speed goes up to 3200RPM
7 blade impeller for strong water flow
Copper plate seal with straightened coolant pathway, reducing resistance
Revised the fin thickness/ height/ distance for better diffusion of the coolant over the entire surface area of the copper plate.
CHOOSE PREFERABLE LOOK
The Galahad II Trinity series’ pump cap has three interchangeable designs, each with a unique look and two rings of colors that can be individually controlled with different lighting effects.
DUO- INFINITY
An aluminum housing cap with duo infinity mirror rings and a Lian Li logo at the center.
DAZZLE
An entirely shining pump cap that brings the most vivid lighting to your build.
SINK-HOLE
The combination of diffuser and infinity mirror creates the sinkhole effect.
HIGH DENSITY ALUMINUM RADIATOR
This 27mm thick radiator features single-wave radiator fins with 20 FPI (fins per inch), which is less airflow restrictive and can result in greater thermal performance.
DAISY-CHAINABLE ARGB FAN
The ARGB PWM fans can be daisy-chained by a single short cable which can be hidden inside the frame of the fan. The 120mm fan is 25mm thick and is equipped with fluid dynamic bearings for stable and quiet operations while effectively providing airflow to the radiator.
Maximum Static Pressure
3.26 mmH2O
Maximum Airflow
79.9 CFM
MOUNT IN ANY WAY
This innovative 45° tubing connector gives the tubes the freedom of 360° rotation, allowing the Galahad ll Trinity series to be installed in many different ways.
The Galahad ll Trinity series can be flexibly installed in ways such as:
Top Mount
Side Mount
Front Mount
Note: Do not apply heavy pressure or strike on the connector.
To make things even better, it also comes with a leather strap to help with organizing the tubes.
INSTALATION MADE EASY, FOR YOU
The Galahad II Trinity series introduces redesigned mounting backplates to provide a hassle-free installation to users while maintaining compatibility with most mainstream CPU sockets. The backplates have a one-piece design with fixed struts to make installation easier.
It also comes with a thermal paste control film and spreader to help ensure the right amount of thermal paste is applied for effective heat dissipation.
SEAMLESS SOFTWARE
Control and preview with precision the lighting effect and real time motor speed of the Galahad II Trinity Pump and fans with the L-Connect 3.
➊ Preview of pump header status and lighting effects
➋ Apply the fan and pump speed
➌ Set personalized lighting effects
Control connected ARGB device lighting effects
Set and monitor fan and pump speed with a real time curve
SIMPLE CONNECTION
The controller is built in the pump and the fan can be connected to the pump to control via L-Connect 3.
ARGB and fan extension input cable
Connect an ARGB device or fan for control via L-Connect 3
5V ARGB
Required for motherboard sync
(No need to use if only using L-Connect)
SATA Cable
For power
USB Cable
Plug into a motherboard 9-pin USB header for L-Connect 3 support
4-PIN PWM Cable
Required for RPM control
6 YEAR WARRANTY
Built with quality, the Galahad II Trinity AIO is proudly backed by a 6-year warranty, including the fans and controller.
Leakage Compensation for 6 Years: If leakage damages the product, compensation will be based on the purchase record date.
Hardware compensation will be calculated with an annual depreciation rate of 15%:
● Year 1: 100% of hardware cost
● Year 2: 85% of hardware cost
● Year 3: 70% of hardware cost
● Year 4: 55% of hardware cost
● Year 5: 40% of hardware cost
● Year 6: 25% of hardware cost
