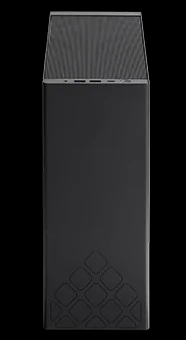

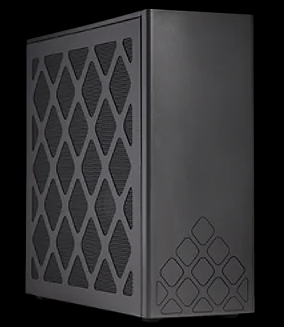

Intel NUC 13 Extreme Kit CORE I7-13700K (RNUC13RNGI70000)

節省$6,000.00

價格:
銷售價格$10,999.00 正常價格$16,999.00

描述

Essentials


Product Collection

Intel® NUC Kit with 13th Generation Intel® Core™ Processors

Code Name

Products formerly Raptor Canyon

Status

Launched

Launch Date

Q4'22

Supported Operating Systems

Windows 11, 64-bit*

Board Number

NUC13SBBi9

Board Form Factor

PCIe

Internal Drive Form Factor

M.2 and 2.5" Drive

# of Internal Drives Supported

5

TDP

125 W

Board Chipset

Intel® Z690 Chipset

Processor Included

Intel® Core™ i9-13900K Processor (36M Cache, up to 5.80 GHz)

Total Cores

24

Total Threads

32

Lithography

Intel 7

Max Turbo Frequency

5.80 GHz

Warranty Period

3 yrs

Supplemental Information

Embedded Options Available

No

Memory & Storage

Max Memory Size (dependent on memory type)

64 GB

Memory Types

DDR5 SODIMM

Max # of Memory Channels

2

Max # of DIMMs

2

ECC Memory Supported ‡

No

Processor Graphics

Integrated Graphics ‡

Yes

Graphics Output

2x Thunderbolt 4, HDMI 2.1 TMDS compatible (4K60)

# of Displays Supported ‡

3

Discrete Graphics

Supports PCIe x16 Gen5 3-slot wide GPU

Expansion Options

PCI Express Revision

Gen5, Gen4

PCI Express Configurations ‡

M.2 PCIe X4 Gen4 slots (CPU), 2x M.2 PCIe X4 Gen4 slots (PCH); Triple-wide PCIe X16 Gen5 (CPU) slot, 12" max card length

M.2 Card Slot (wireless)

Killer™ Wi-Fi 6E AX1690i

M.2 Card Slot (storage)

2x via PCH + 1x via CPU (NVMe)

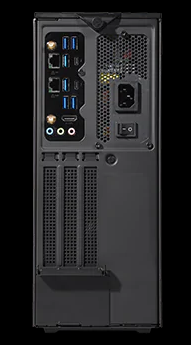

I/O Specifications

# of USB Ports

11

USB Configuration

Rear: 6x USB 3.2g2, 2x TB4 (USB4); Front: 2x USB 3.2g1 Type-A, USB 3.2g2x2 Type-C

USB Revision

3.2 Gen1, Gen2, Gen2x2, USB4

Total # of SATA Ports

4

Max # of SATA 6.0 Gb/s Ports

4

RAID Configuration

RAID-0 or RAID-1

Audio (back channel + front channel)

(R) 7.1 digital, 3x 3.5mm + (F) 3.5mm

Integrated LAN

10GbE (AQC113) + Intel® i226-V

Integrated Wireless‡

Intel® Killer(tm) Wi-Fi 6E AX1690 (i/s)

Integrated Bluetooth

Yes

Additional Headers

FRONT_PANEL

# of Thunderbolt™ Ports

2x Thunderbolt™ 4

Package Specifications

Chassis Dimensions

337 x 318 x 129mm

Advanced Technologies

Intel® Optane™ Memory Supported ‡

Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ‡

Yes

Intel® Rapid Storage Technology

Yes

Intel® Virtualization Technology (VT-x) ‡

Yes

Intel® Platform Trust Technology (Intel® PTT)

Yes

Security & Reliability

Intel® AES New Instructions

Yes
