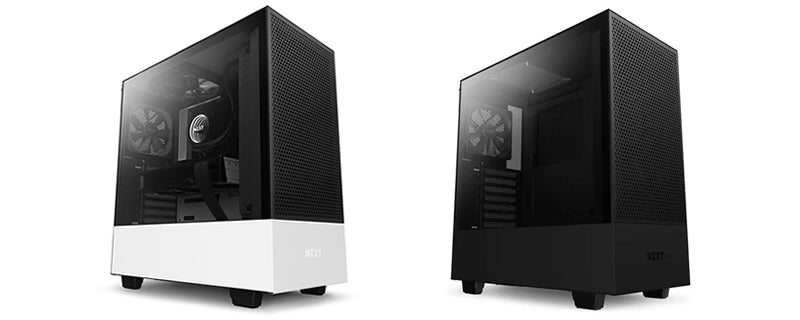

NZXT H510 Flow Compact Mid-tower CASE 黑

Key Specs

• Motherboard Support

  Mini-ITX, MicroATX, ATX

• Enclosure Type

  Compact Mid-Tower

• Case Material

  SGCC Steel, Tempered Glass

Dimensions

• Height

  460 mm / 18.11 inches

• Width

  210 mm / 8.26 inches

• Depth

  428 mm / 16.85 inches

• Weight

  6.6 kg / 14.5 lb

Compatibility & Clearance

• Max CPU Cooler Clearance

  165 mm

• Max GPU Clearance

  360 mm

• Front Fan & Radiator Clearance

  60 mm

• Cable Management

  19 - 23 mm

Front I/O Ports

• USB 3.2 Gen 1 Type-A

  1

• USB 3.2 Gen 2 Type-C

  1

• Headset Audio Jack

  1

Expansion Slots

• Standard

  7

• Vertical

  -

Drive Bays

• 2.5"

  2 + 1

• 3.5"

  2 + 1

Fan Support

• Front

  2 x 120mm / 2 x 140mm

• Top

  1 x 120mm / 1 x 140mm

• Rear

  1 x 120mm

• Filters

  All air intake

Included Fans

• Front

  1 x Aer F 120mm (Case Version)

• Top

  -

• Rear

  1 x Aer F 120mm (Case Version)

Radiator Support

• Front

  280mm

• Rear

  120mm

Fan Specs

• Model

  Aer F 120mm (Case Version)

• Speed

  1,200 ± 200RPM

• Airflow

  50.42 CFM

• Noise

  28 dBA

• Bearing

  Rifle Bearing

• Fan Connector

  3-pin

General

• Warranty

  2 years

White SKU

• Model Number

  CA-H52FW-01

• UPC

  815671019585

• EAN

  5060301699254

Black SKU

• Model Number

  CA-H52FB-01

• UPC

  815671019578

• EAN

  5060301699247
