描述
USB-A 3.2*4 (Gen2 10Gbps)
HDMI 2.0 (4K@60Hz*1)
DisplayPort(4K@144Hz*1)
Thunderbolt 4*1
3.5mm headphone jack *1
DC IN 5525
Giga LAN (RJ45) 2.5G *2
HDMI 2.0 (4K@60Hz*1)
DisplayPort(4K@144Hz*1)
Thunderbolt 4*1
3.5mm headphone jack *1
DC IN 5525
Giga LAN (RJ45) 2.5G *2

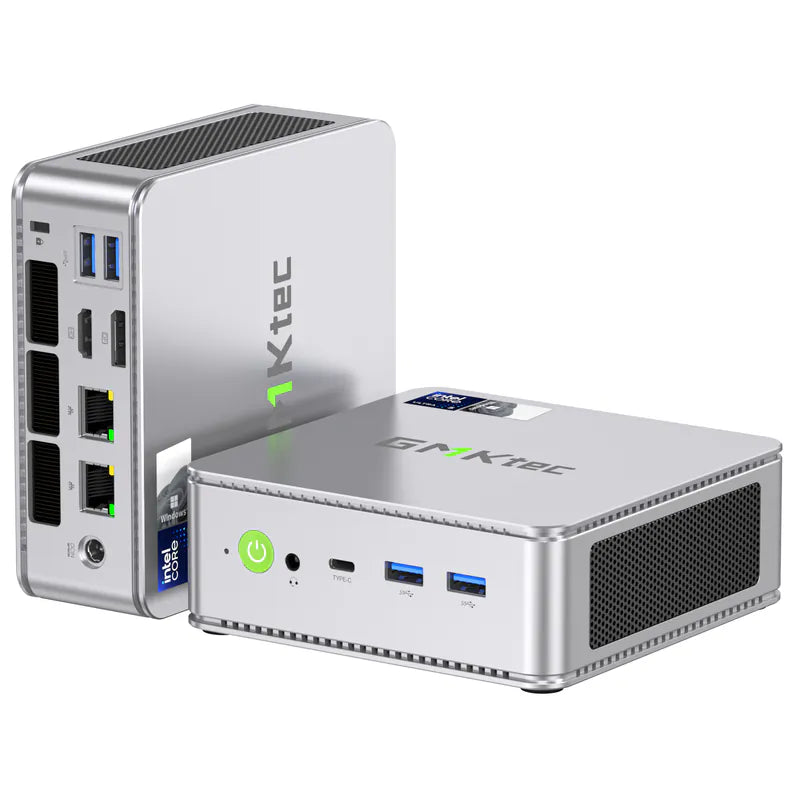

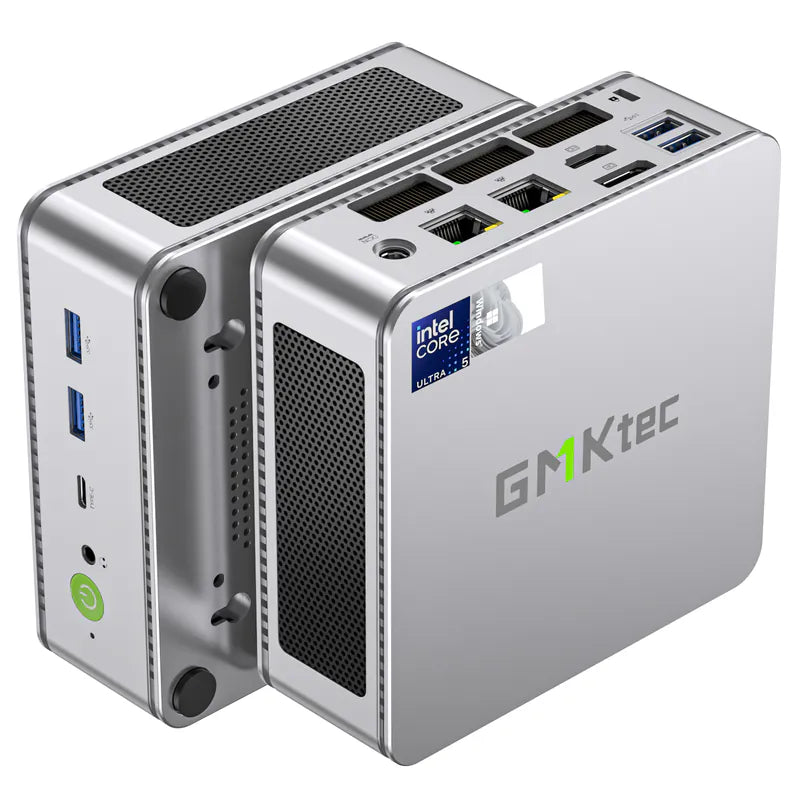

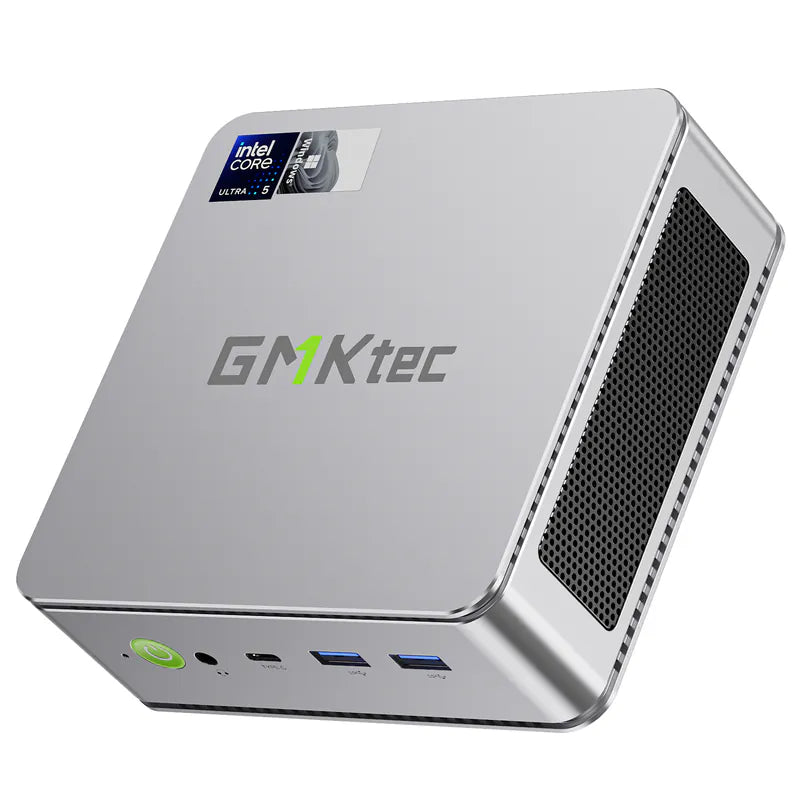

GMKtec NucBox K9 mini PC
NucBox K9 is an Ultra 5 AI PC. 1st Gen Core Ultra processor, Intel Core Ultra 5 125H, with 7-core Arc GPU & integrated AI Boost NPU with two Gen 3 engines for hardware AI workload acceleration.
Specifications :
| Processor | Intel® Core™ Ultra 5 125H, 14 cores / 18 threads, turbo up to 4.5GHz, 18 MB Intel® Smart Cache |
| GPU | Intel® Arc™ graphics (up to 2.2GHz) |
| Memory | Dual Channel DDR5 SODIMM x 2, max 96GB Pre-installed : 32GB / 96GB (5600MHz) |
| Storage | 2 x M.2 2280 PCIe 4.0 NVMe SSD slots, max 4TB Pre-installed : 1TB / 2TB |
| Wireless | WiFi-6 |
| Bluetooth |
Bluetooth 5.2 |
| Video Output |
HDMI (2.0) x 1 (4K@60Hz) DisplayPort x 1 (4K@144Hz) Thunderbolt 4 x 1 (4K@144Hz) |
| Audio Output |
HDMI 2.0 , 3.5mm Audio Jack |
| Ports & Buttons |
1 x HDMI (2.0) 1 x DisplayPort (1.4) 1 x Thunderbolt 4 Type-C 2 x RJ45 2.5 Gigabit Ethernet port 4 x USB 3.2 Gen2 Type-A ports (10 Gbps) 1 x 3.5mm CTIA |
| Power | 19V/6.32A adapter (120W) |
| TDP | 28W (115W max) |
| Operating System | Windows 11 Pro |
|
Dimensions |
123 x 112 x 43.2 mm |
