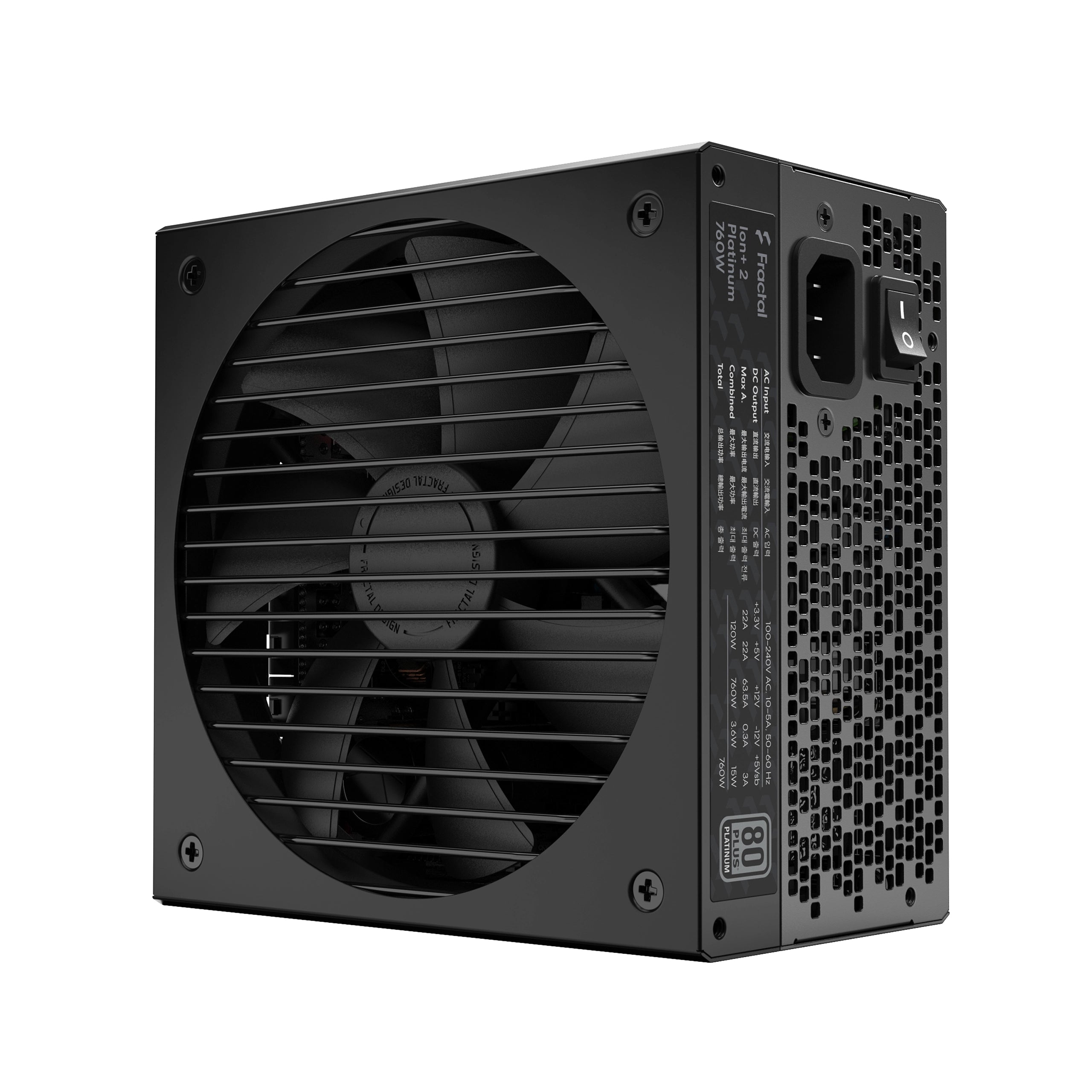

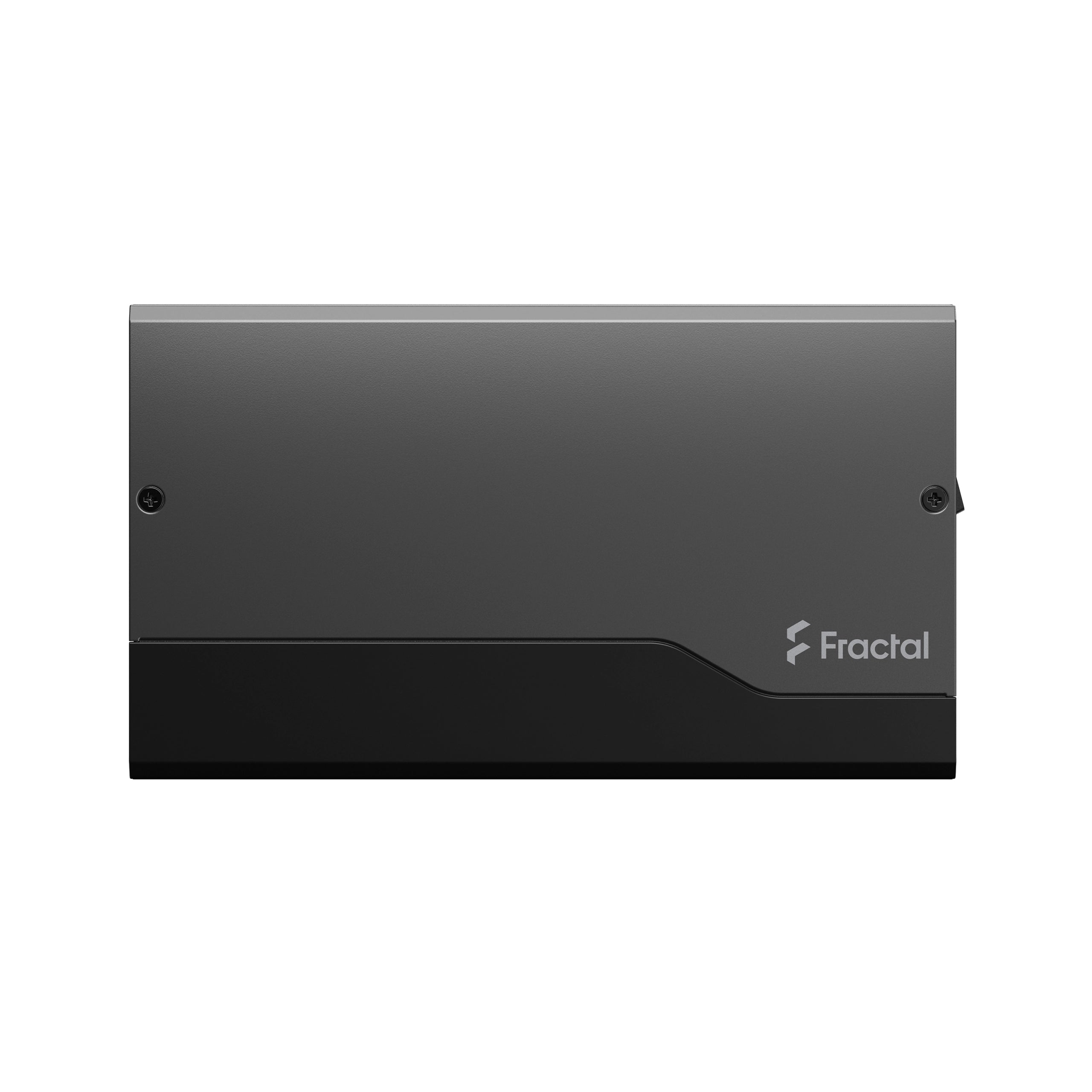

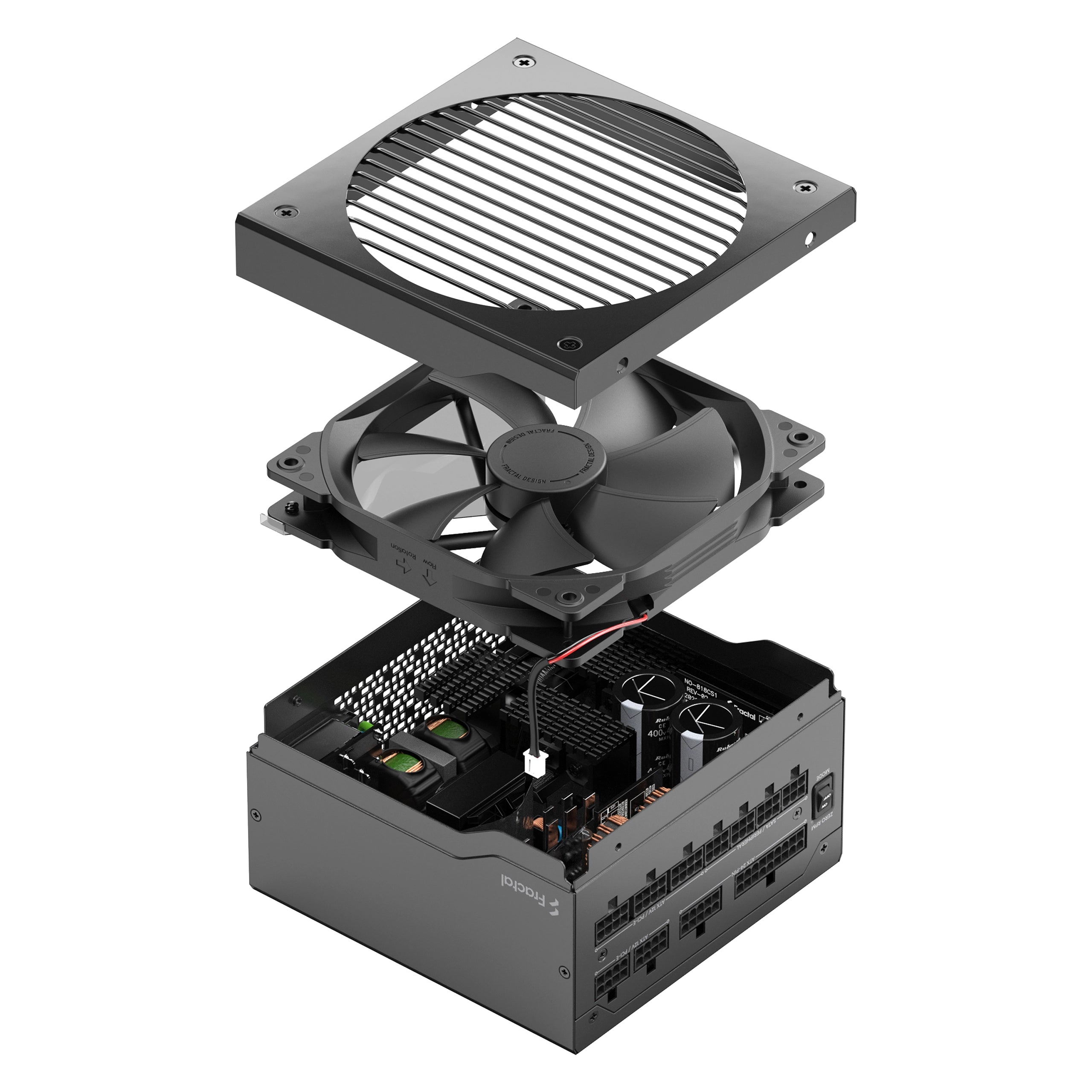

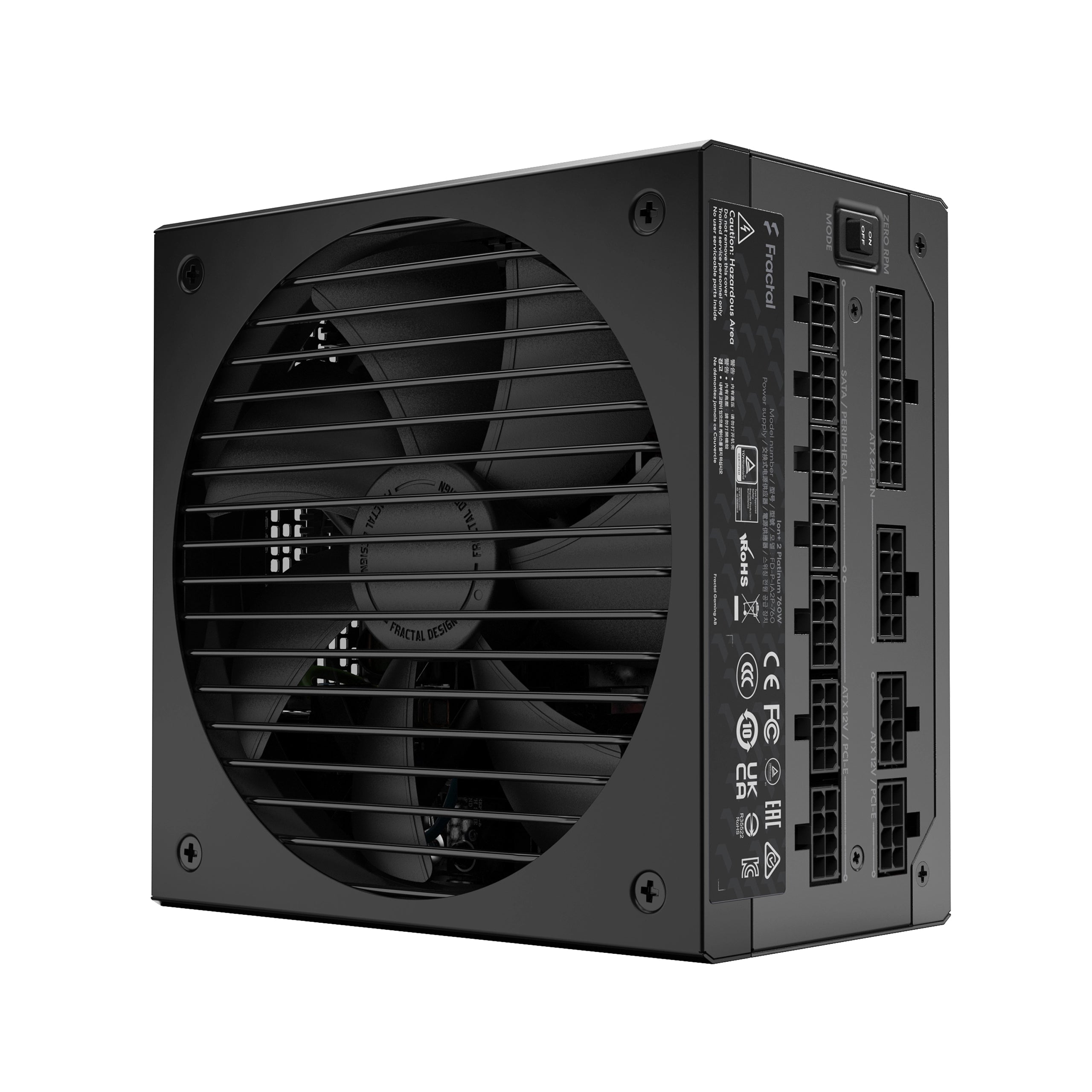

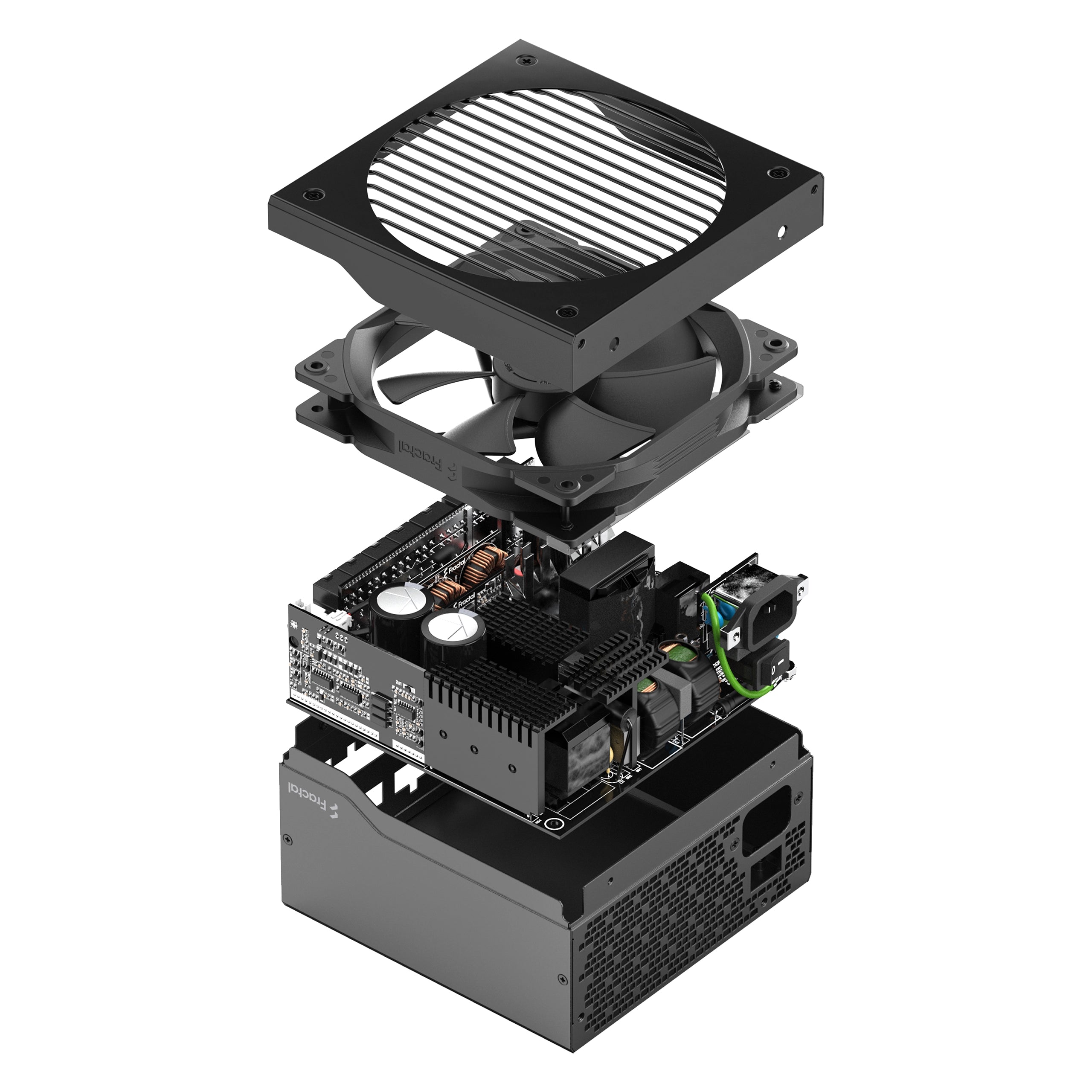

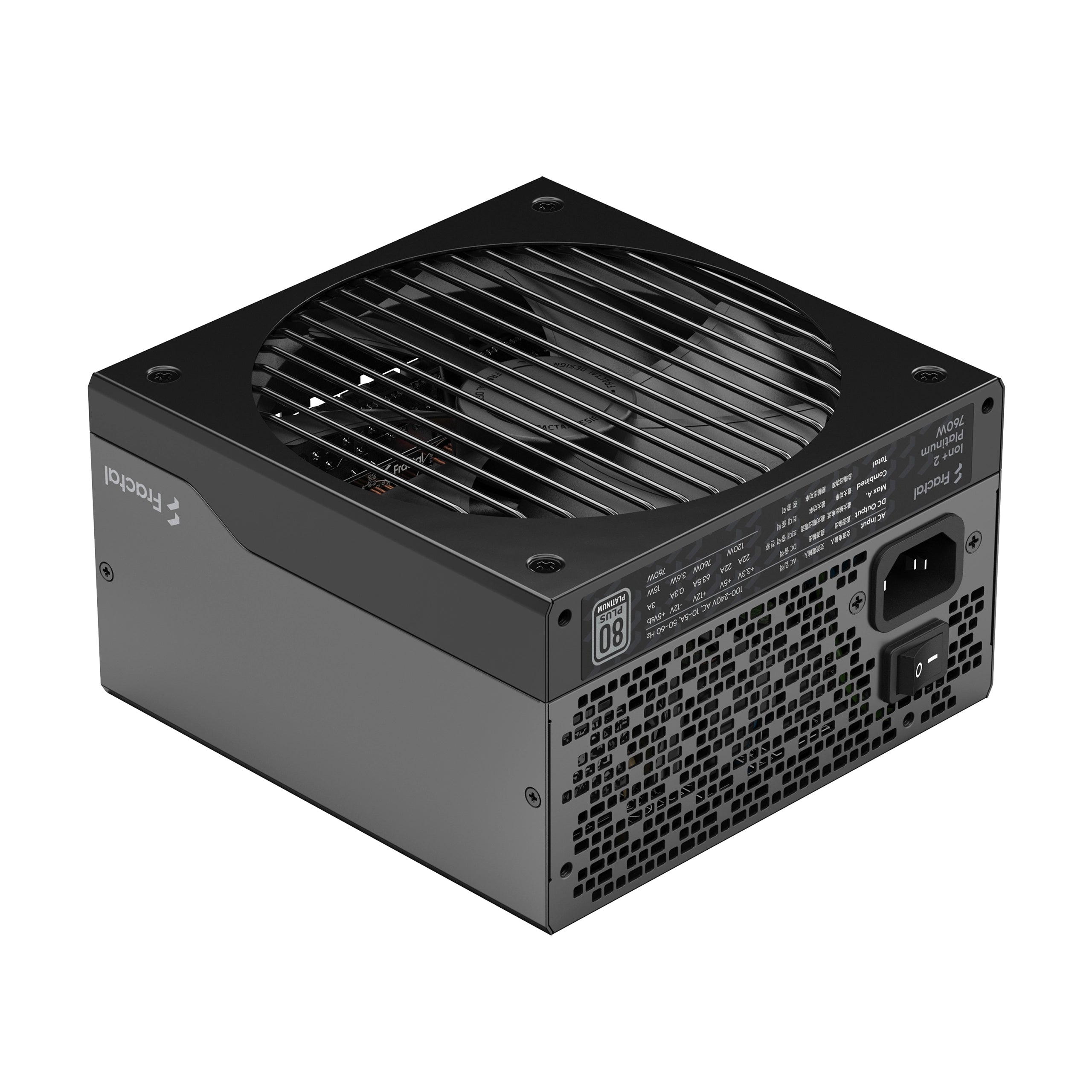

Fractal Design ION+ 2 Platinum 860W Fully Modular PSU

Specifications

• 80PLUS® certification
  Platinum
• Modular cables
  Fully modular
• Fan type
  140 mm FDB bearing Fractal Design Dynamic series fan
• Maximum operating temperature (full load)
  50°C
• Semi-passive operation
  Yes, user selectable (Zero RPM)
• Capacitors
  Japanese
• Life expectancy
  100,000 hours
• PSU specification compliance
  ATX12V 2.52; EPS12V 2.92
• Cable type
  Modular 24-pin cable: Black UltraFlex™ wires in braided sleeve Other modular cables: Flat black UltraFlex™ wires
• Input voltage
  100-240V C
• Input frequency
  50-60 Hz
• Input current
  10A/5A
• Protection features
  Over voltage protection, Under voltage protection, Overpower protection, Short circuit protection, Over current protection, Over temperature protection
• Standby efficiency
  ErP 2013 (<0.45W @230. VAC, 45 mA load on +5Vsb)
• Sleep state compliance
  C6/C7
• Approvals & certifications
  CE, FCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, KC+KCC
• Warranty
  10 Years

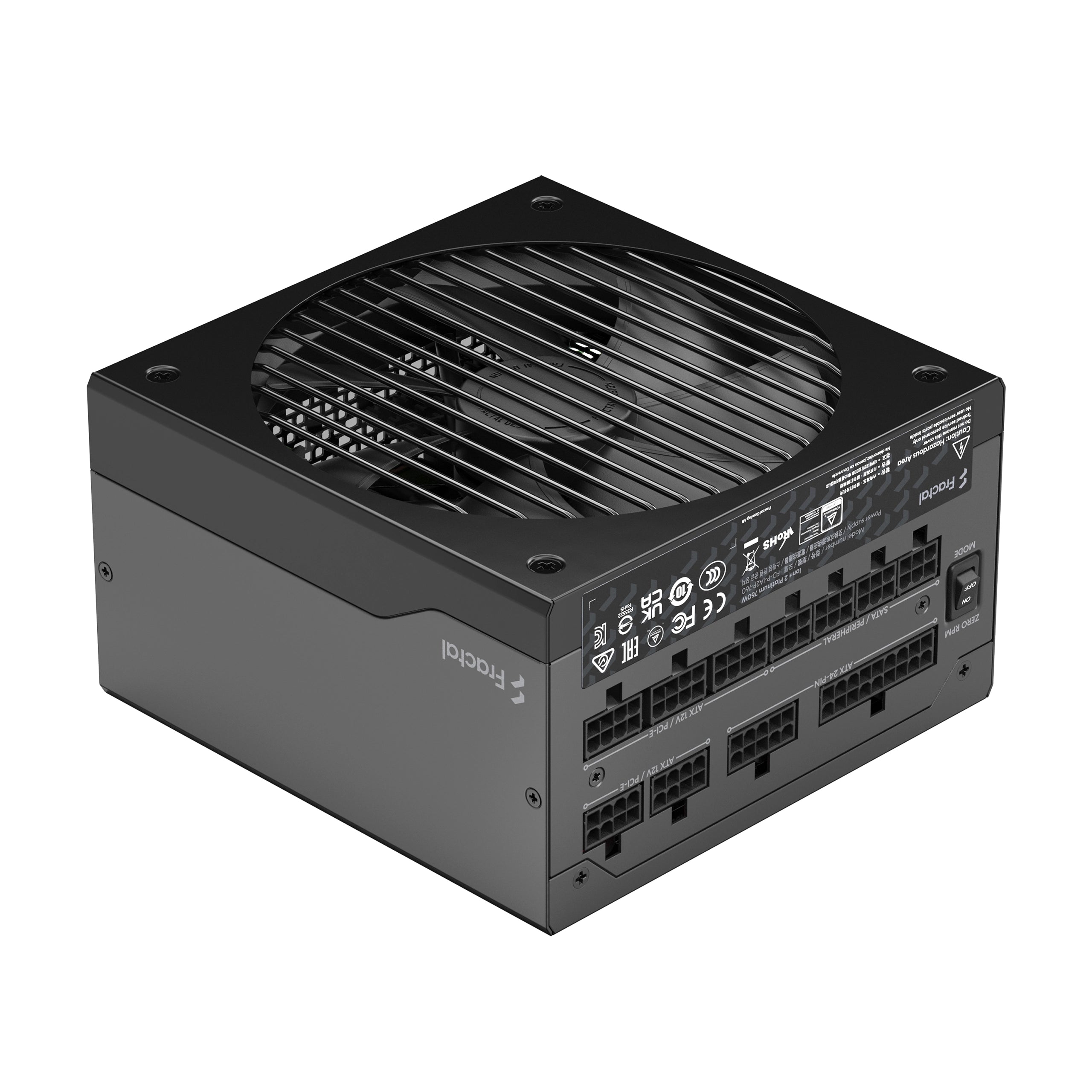

Connectors

• ATX 24-pin
  1
• ATX12V 4+4 pin / EPS12V 8-pin
  2
• PCIe 6+2 pin
  6
• SATA
  10
• Peripheral
  4

Cable Configuration (length in mm between connectors)

• ATX 20+4 pin
  600 mm
• ATX 12V 4+4 pin
  700 mm
• EPS12V 8-pin
  600 mm
• PCIe 6+2 pin
  550 + 120 mm
• SATA
  400+150+150+150 mm & 650+150mm
• Peripheral
  400+150+150+150 mm

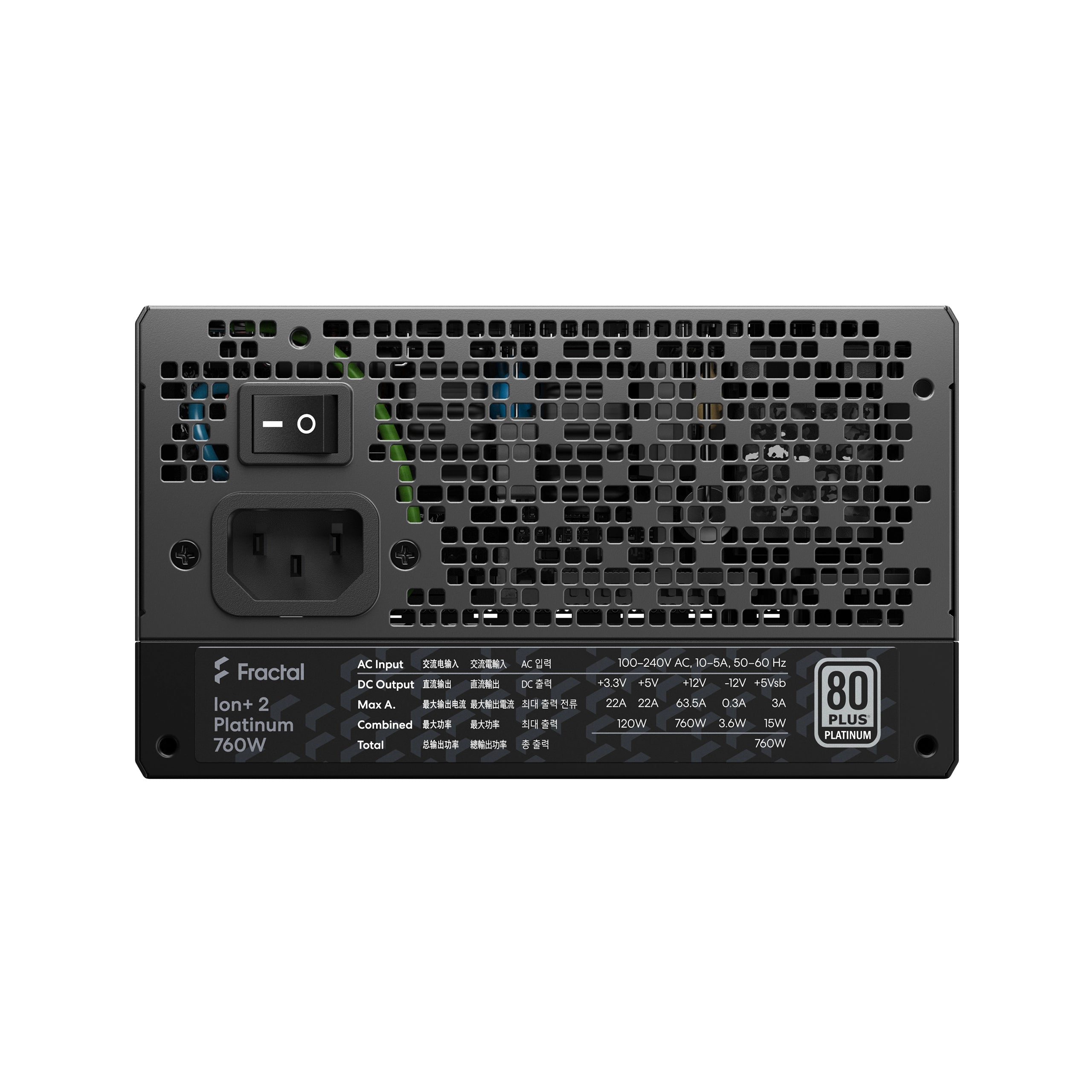

DC Output

• 3.3V
  22A
• 5V
  22A
• 3.3V and 5V combined
  120W
• 12V
  71.6A
• -12V
  0.3A
• +5Vsb
  3A
• Total Power
  860W

Other

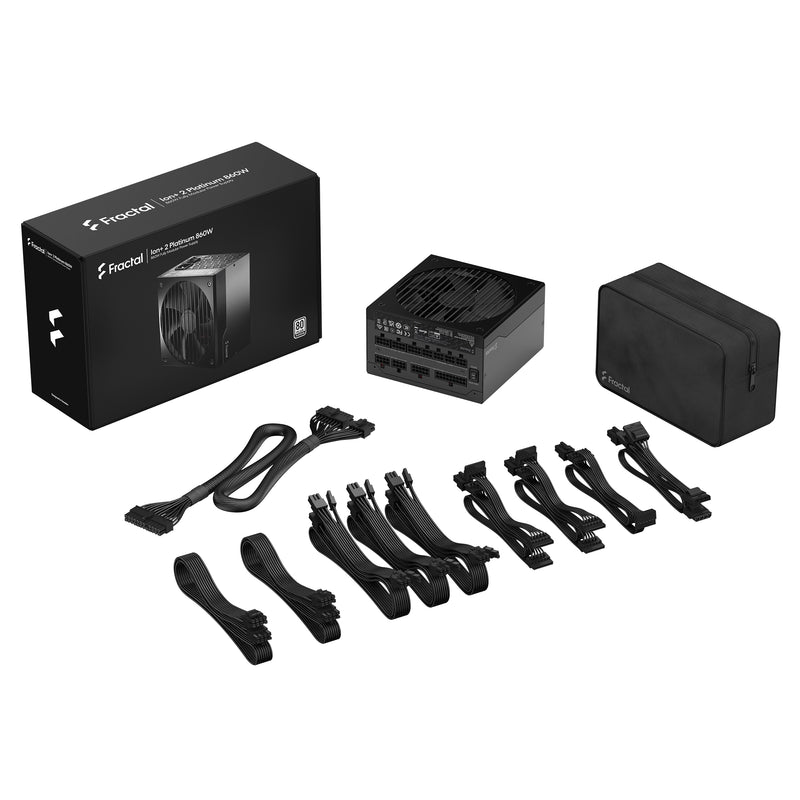

• Package contents
  Power Supply, Power Supply storage bag, Modular cable kit in storage bag, User guide, AC Power cord, Velcro cable ties and mounting screw pack, Included in packaging is a red note as well
• Unit dimensions (LxWxH)
  150 x 150 x 86 mm
• Net weight (unit only)
  2.53 kg
• Package dimensions (LxWxH)
  325 x 210 x 110 mm
• Package weight
  3.06 kg
• EAN
  7340172702887
• UPC
  843276102883
• JAN
  4537694282734
• Product code
  FD-P-IA2P-860
