ERGOTRON HX Wall Mount Monitor Arm |Heavy Monitor Mount (45-478-216)

• GTIN: 00698833054521
• Part Number: 45-478-216
• Product Weight: 5.3 kg
• Shipping Weight: 6.3 kg
• Description: HX Wall Mount Monitor Arm

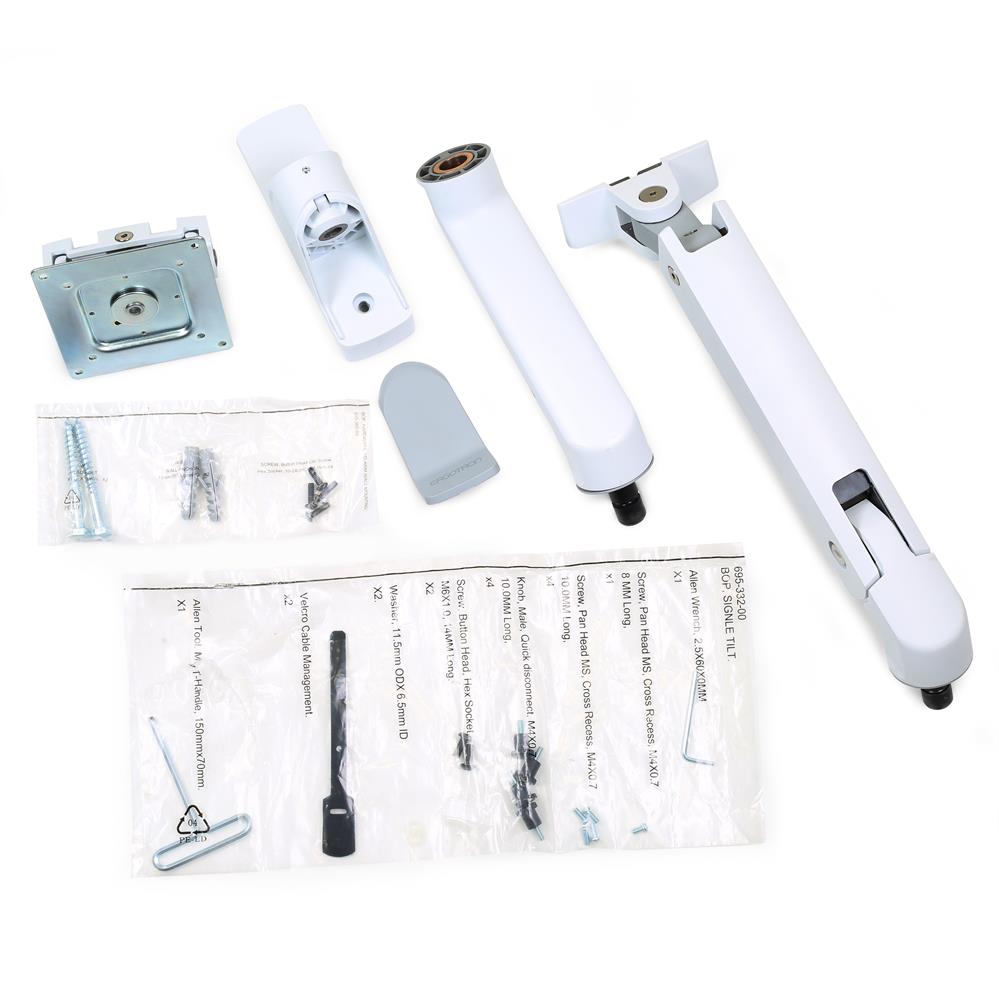

• Includes arm, extension, monitor pivot, wall mount, mounting hardware
• Mounting Considerations: Attaches directly to solid vertical surfaces. When attaching to a wall stud, a Wall Track accessory is required (31-016-182, 31-017-182, 31-018-182 or 31-039-182). To attach an HX arm to Wall Track, also order the Track Mount Bracket (97-091)
• Portrait/landscape rotation with lockout
• Streamlined cable management routes cables under arm and within extension
• § Weight Capacity: 20–42 lbs (9.1–19.1 kg). Note: Display depth > 6" (15 cm) may affect the arm’s weight capacity. For a curved monitor, consider the arc’s depth to determine compatibility. For a display weighing 28–42 lbs (12.7–19.1 kg) with a depth of 6"–12" (15–30 cm), the accessory HX Heavy-Duty Tilt Pivot (98-540-216) is required
• To use an HX arm with the ultra-wide, curved Samsung 49" Odyssey G9 Monitor, also order the accessory HX Heavy-Duty Tilt Pivot (98-540-216)

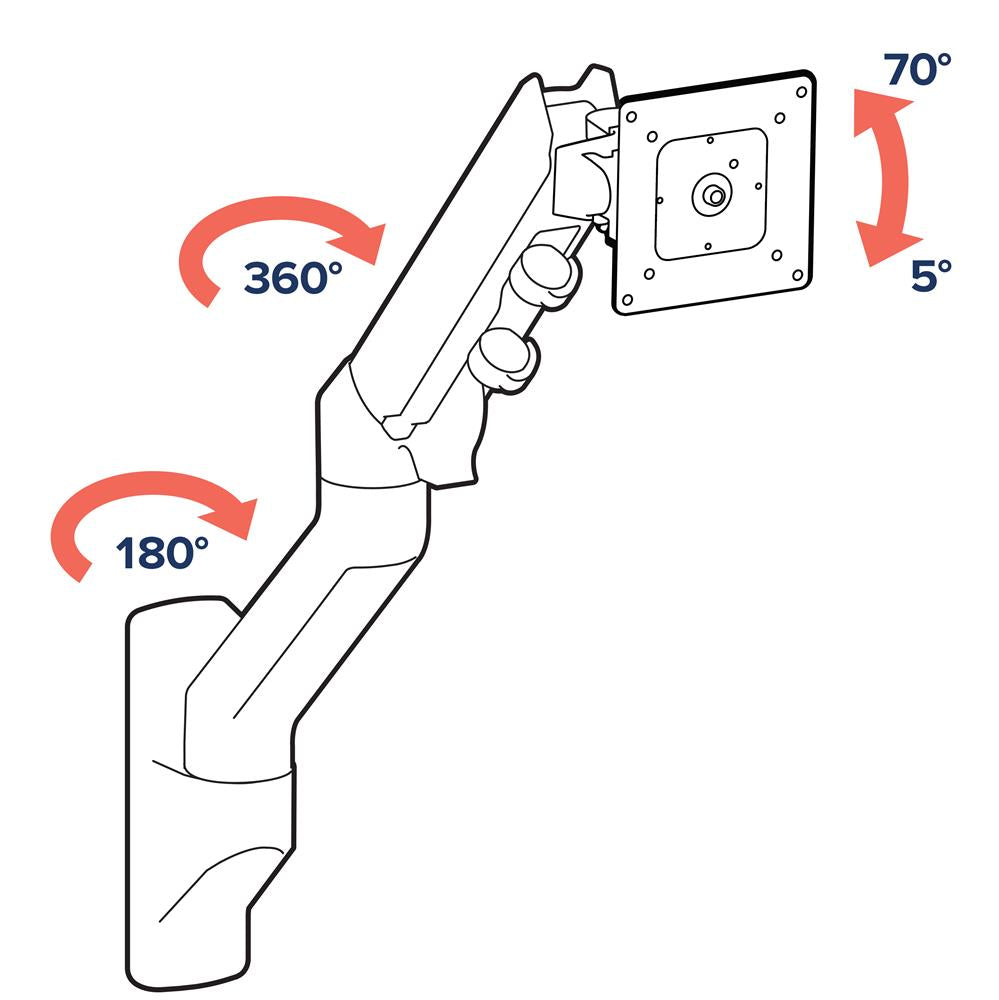

• * Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base
• ‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm
• † Tilt Range: 70° backward, 5° forward
• This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
• Shipping Dimensions: 12" x 19.2" x 7" (30.5 x 48.8 x 17.8 cm)
• Warranty: Ten years

Samsung G9支架 | 支架最舒適 的 monitor arm | 螢光幕 支架 | 節省桌面空間 monitor stand | 曲面顯示器 支架 | 電競 顯示器 monitor arm

Ergotron HX壁掛式監視器支臂, 45-478-216 (亮白)

選擇一款靈活的顯示器支臂，滿足您的需求。利用HX Wall Monitor Arm 您可輕鬆調整重達19.1 kg 的大型顯示器，同時簡潔的產品設計仍可進一步增強工作空間舒適度。利用一個雙顯示器或三顯示器弧形桿套件增加顯示屏數量，提高工作效率。利用一個將旋轉範圍控制在180°以內的旋轉止塊可確保顯示器始終位於工作區域內。
>提示：若想在支臂上安裝超曲屏三星49”Odyssey G9，必須加裝這款HX 重型角度轉軸配件98-540-216
產品配置:

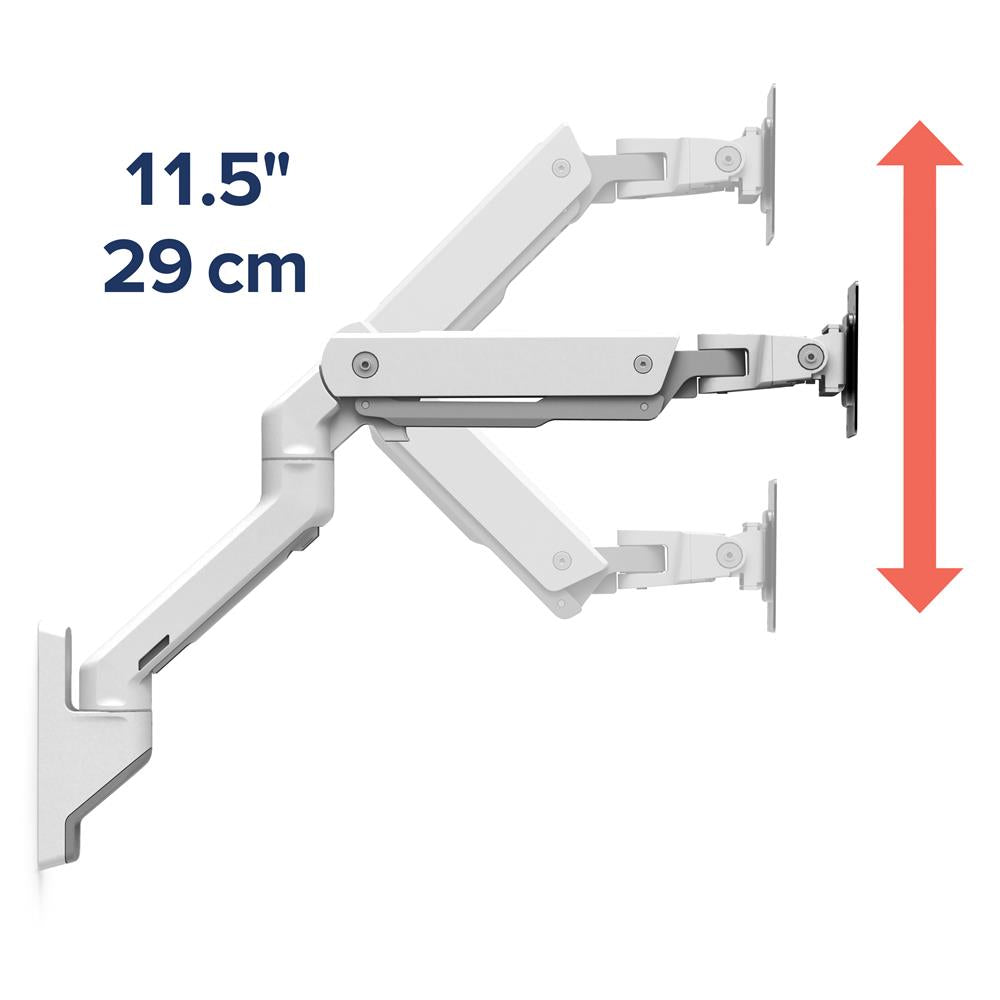

螢幕尺寸 承受重量 昇降 傾斜 ≤42" 20–42 lbs 9.1–19.1 kg § 11.5" 29.2 cm 75° †
擺動 旋轉 Vesa 保養 180° 360°  MIS-D/E/F ‡ 10 Years
優點:
使用舒适 全面监测移动，提高人体工学舒适度 旋转止块 利用底座上的一个旋转止块可避免撞击立体墙 节省空间 将屏幕定位在最佳视角，提供更多宝贵的工作空间 造型优美 流线型外观增强您的工作区域 外观整洁 线缆保持隐藏在支臂和延伸件内 品质设计 已通过 10000 个循环测试，为数千次移动提供有效保障
