描述
Description

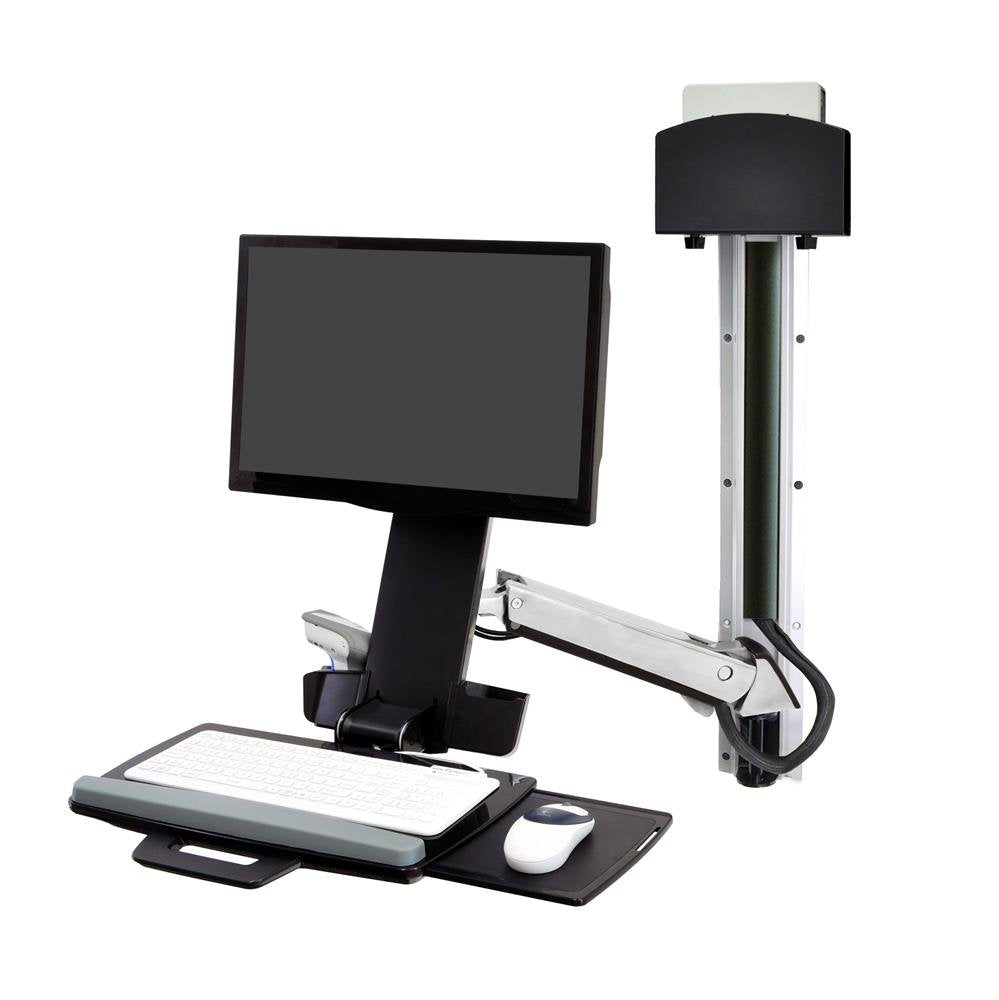

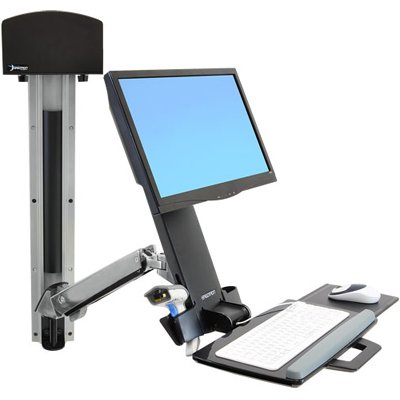

Ergotron 45-273-026 comes with Small Black CPU Holder. This complete system provides easy re-positioning of your entire workstation - move your display, keyboard, mouse and barcode scanner in a single motion.
Durable polished aluminum construction! Work sitting or standing with the arm’s ergonomic 25" (64 cm) LCD height adjustment range. A unique cable management system conceals and organizes cords, making cleaning easy.
Technical Drawing
Technical Specifications
 |
 |
 |
 |
 |
 |
 |
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 24" |
Up to 29 lbs 13.2 kg |
25" 63.5 cm |
30° | 360° | 360° | MIS-D |
Product Information
| Part Number | 45-273-026 |
| Description | StyleView Sit-Stand Combo System with Small CPU Holder (polished aluminum) |
| Includes |
|
| Exterior | Durable, easy-to-clean exterior composed of aluminum, high-grade plastic |
| Weight Capacity | Display = 6–18 lbs (2.7–8.2 kg) or up to 25 lbs (11.4 kg) with tilt and lift lock-out features engaged; keyboard, mouse and barcode scanner = 4 lbs (1.8 kg); CPU = 50 lbs (22.7 kg) |
| Lift Range | LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (64 cm) |
| Monitor up/down Tilt | +25°/-5° |
| CF Technology | Patented CF lift-and-pivot motion technology provides premium 25-inch (64 cm) LCD height adjustment, portrait to landscape rotation and 30° tilt |
| Mounting Standards | VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm) |
| Scanner | Integrated mouse and barcode scanner holder provide easy access |
| Keyboard Tray |
|
| CPU Size Range | 1-3/8" to 3-3/4" (35 to 95 mm) wide; accommodates most small form factor and ultra small form factor CPUs |
| CPU Holder | Includes fasteners for locking the holder’s width |
| Extender | Optional Extender (45-261-026) increases range of motion for even greater reach |
| Notebook Tray | Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200) |
| Product Weight | 36.8 lbs (16.7 kg) |
| Shipping Dimensions | 37.1" x 22.1" x 11.1" (942 x 561 x 282 mm) |
| Shipping Weight | 47 lbs (21.4 kg) |
| Warranty | Five (5) years |
Benefits
-
Flexible, open-architecture design is scalable for future computer equipment
-
Comfortable, ergonomic data entry - work sitting or standing with 20" (51 cm) single-motion lift adjustment
-
Five-inch (12.7 cm) independent LCD height adjustment ergonomically accommodates individual users
-
Easy-to-clean features promote superior infection control
-
Barcode scanner holder provides easy access to hand-held scanner
-
Extend LCD and keyboard up to 39.75" (101 cm) from wall; fold equipment back out of the way when not in use. With keyboard in storage position, system depth is as little as 12" (30 cm)
-
Ergonomic back-tilt keyboard tray ensures wrists remain in a neutral position during data entry; keyboard tray pulls out when needed and stows inside worksurface
-
Maintains the relative position of screen and keyboard throughout full range of motion
-
Clean, concealed and neat routing of cables through the expansive cable management system
