描述
| MODEL | ELC-LMT240-ARGB |
|---|---|
| CPU SOCKET | Intel® LGA 1200/2066/2011-3/2011/1366/1156/1155/1151/1150 AMD® AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1 |
| TDP (W) | 330W |
| COLD PLATE MATERIAL | Copper Base |
| RADIATOR MATERIAL | Aluminum |
| RADIATOR DIMENSION | 274 x 120 x 27 mm |
| PUMP BEARING | Ceramic Bearing |
| PUMP MTBF | 50,000 hrs |
| PUMP RATED VOLTAGE (V) | 12V |
| PUMP RATED CURRENT (A) | 0.4 A [ or 0.53A if not connected to 3 pin ARGB connector (5V/D/G) ] |
| PUMP RATED CURRENT - RGB LED (A) | 0.18A (5V) |
| FAN DIMENSION (MM) | 120 x 120 x 25 mm |
| FAN SPEED (RPM) | 500~1600 rpm |
| FAN RATED VOLTAGE (V) | 12V |
| FAN AIR FLOW (CFM) | 22.5~72.1 CFM |
| FAN STATIC PRESSURE (MM-H2O) | 0.2~1.98 mm-H2O |
| FAN RATED CURRENT (A) | 0.17A |
| FAN RATED CURRENT RGB LED (A) | 0.36 A (5V) |
| FAN MAXIMUM NOISE (DBA) | 14~27 dBA |
| FAN MTTF (HOURS) | 50,000 hrs |
| FAN CONNECTOR | 4 pin PWM connector 3 pin ARGB connector (5V/D/G) |
| FAN SCREW | 6#32 |
| THERMAL GREASE | Dow Corning® TC-5121C |

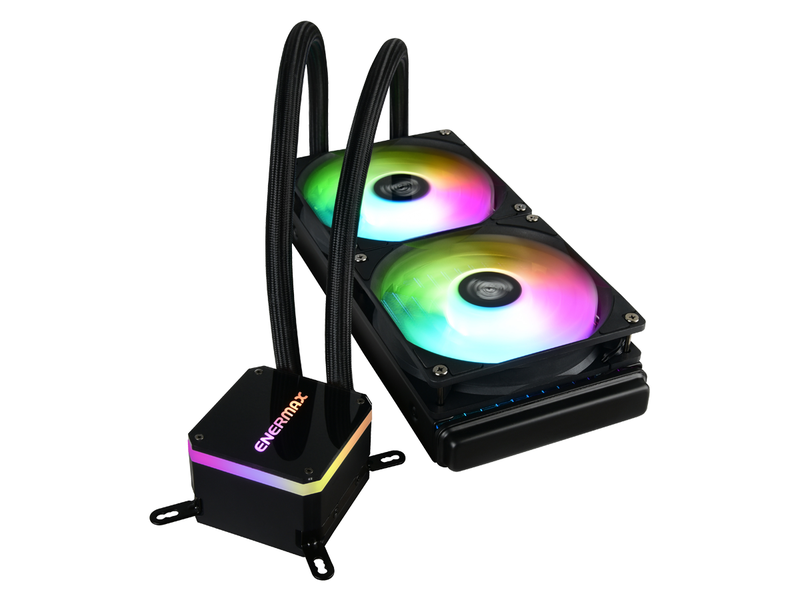

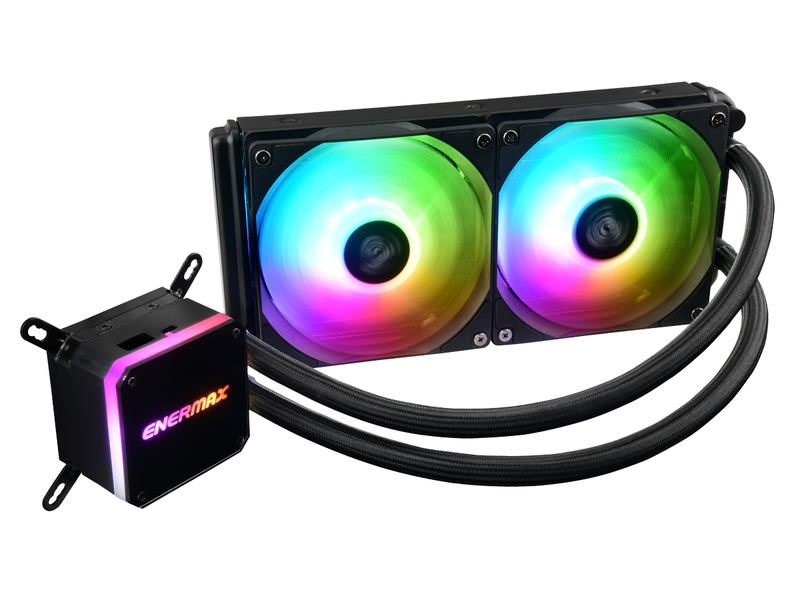

Patented Dual-Chamber Design water block
Patented Dual-Chamber Design isolates the pump from the heat to prolong the cooler’s lifetime
Central Coolant Inlet (CCI) design and patented Shunt-Channel Technology (SCT)
Patented Dual Chamber Design water block has a Central Coolant Inlet (CCI) structure, combined with the Shunt-Channel Technology (SCT) on the cold plate, it is able to inject the coolant at the hottest spot to prevent heat surges and shorten the coolant flow path, resulting in faster heat transfer

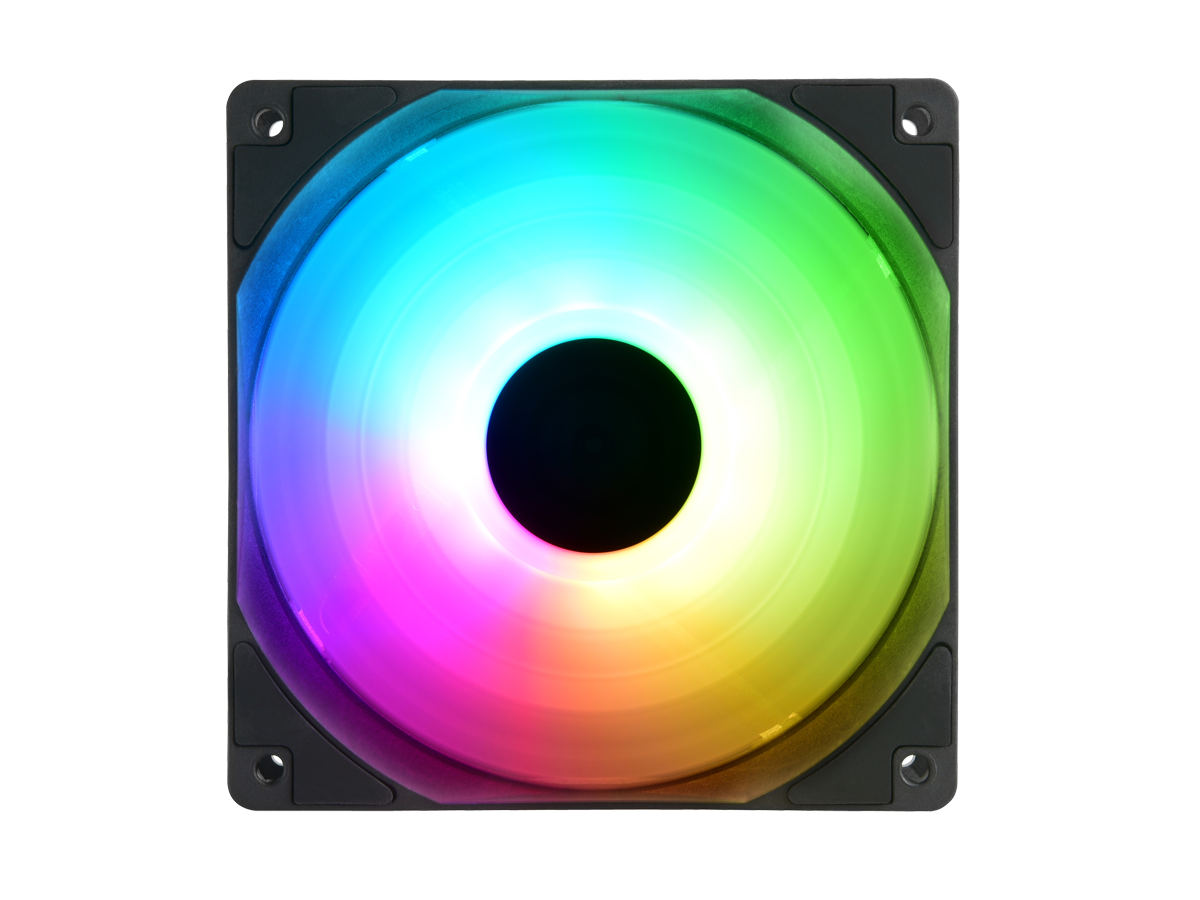

The luminous addressable RGB fan and Aurabelt™ water block display gorgeous lighting effects with 16.8 million colors
Addressable RGB lighting synchronization
LIQMAX III ARGB is designed to synchronize with motherboards featuring an addressable RGB header (3 pin assignment is 5V/D/G). User can program preferred lighting effects via motherboard software

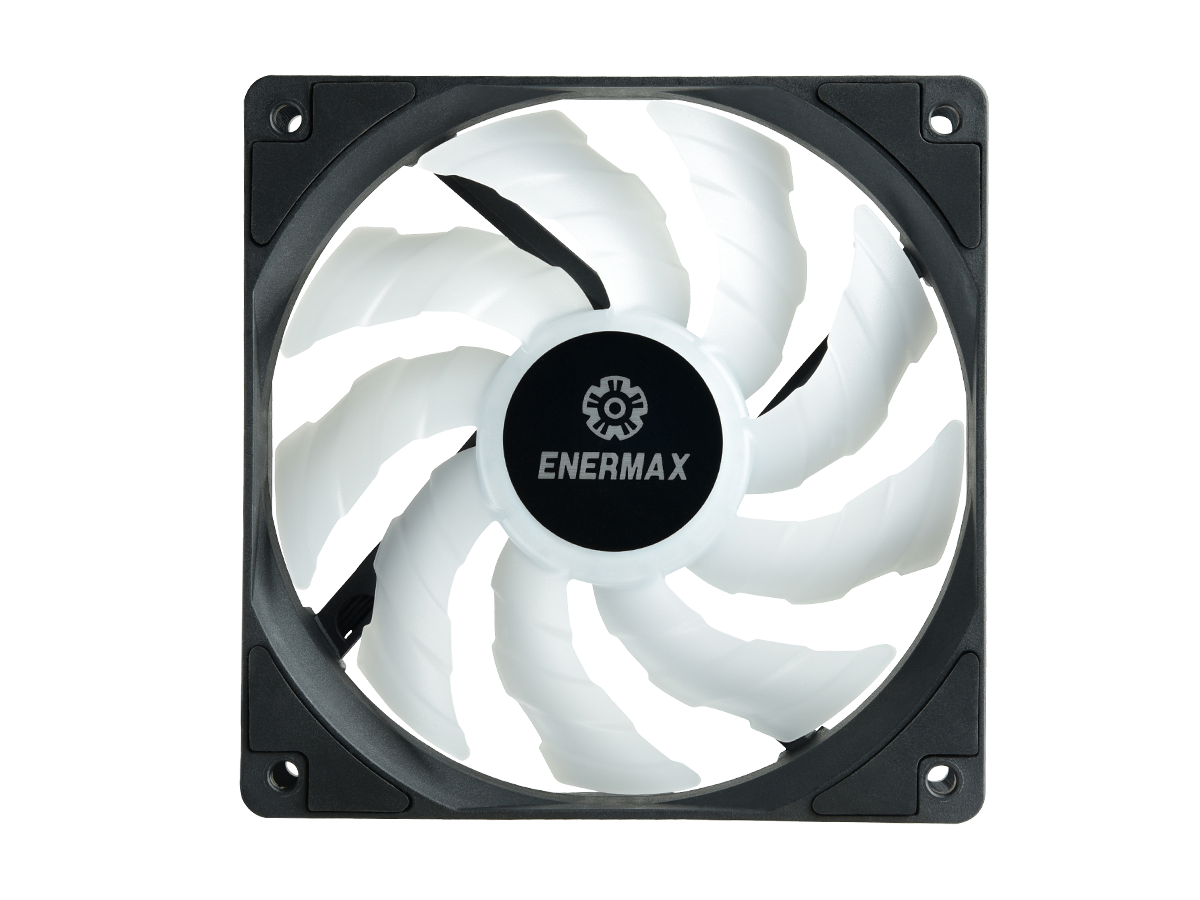

Exclusive dual-convex blades
Exclusive dual-convex blade creates down force air pressure (max. 1.98mmH2O) and high-volume air flow (max. 72.1CFM)
Anti-vibration rubber pads minimize noise during operation
Premium 400mm weaved tubing is perfect for mainstream system builds

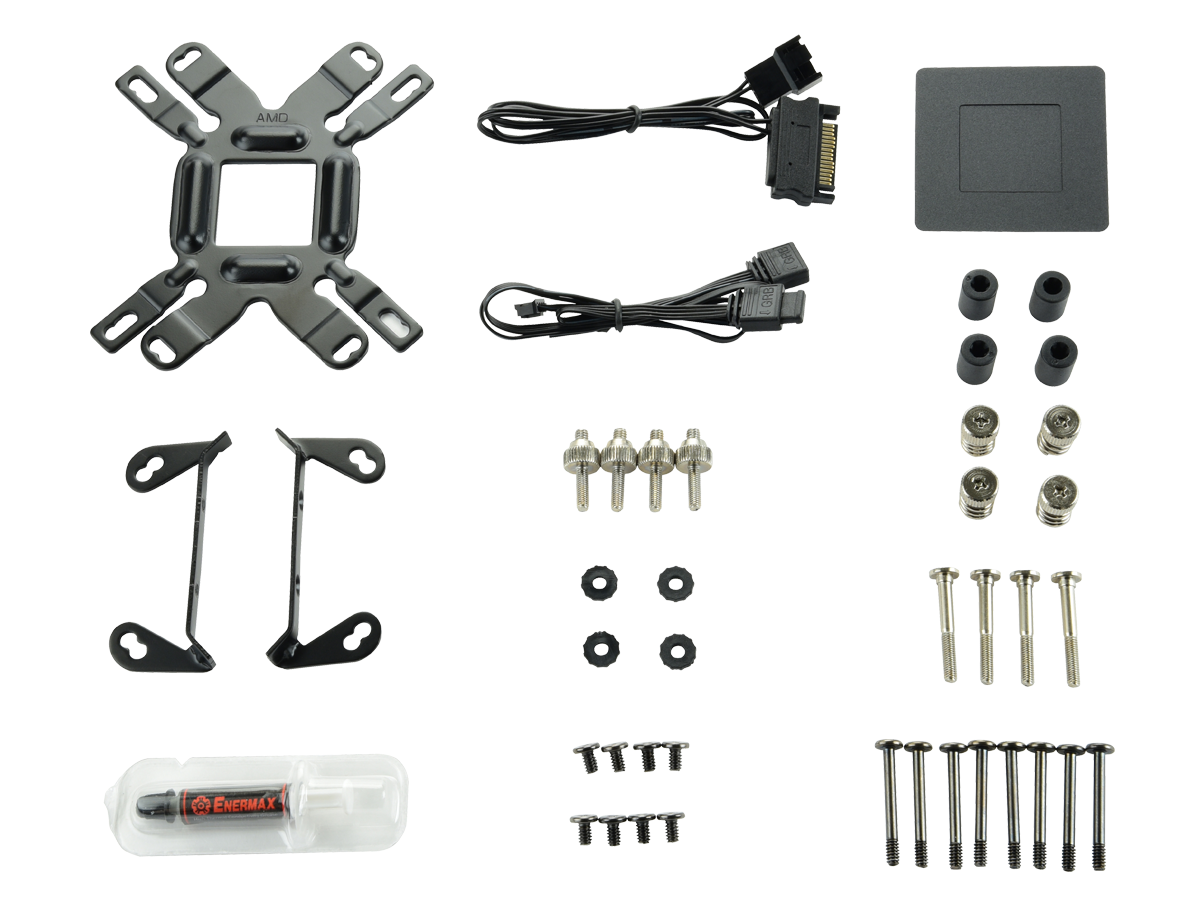

Universal Intel® and AMD® CPU cooler with quick-and-easy mounting system (Excluding TR4/ SP3 socket)
Dimension
