Technical Specifications
Overview | ||
---|---|---|
ELC-LMT120-RGB | ELC-LMT240-RGB | |
Intel® compatible Sockets | LGA 1200, LGA 115x, 1366, 2011(-3) Square ILM, 2066 | |
AMD® compatible Sockets | FM1, FM2(+), AM2(+), AM3(+), AM4 | |
Cold Plate Material | Copper | |
Weight without Fan | 0.690 kg | 0.795 kg |
Thickness including Fan | 53mm | |
Thermal Design Power (TDP) | 260W | 330W |
Thermal Grease | Dow Corning® TC-5121 2g | |
RGB Connector | 4 pin (12V/G/R/B) | |
RGB Sync. Compatibility | Asrock, Asus, MSI, Gigabyte | |
Lighting Modes | – | |
Pump | ||
Bearing Type | Ceramic bearing | |
MTBF | 50,000h | |
Motor Speed | 3.100RPM | |
Rated Voltage | 12V | |
Rated Current | 0.4A [or 0.49A if not connected to 4 pin RGB connector(12V/G/R/B)] | |
LED Type | 5050 RGB | |
Rated Current LED | 0.18A | |
Pump Power Connector | 3 pin (GND/12V/Tacho) | |

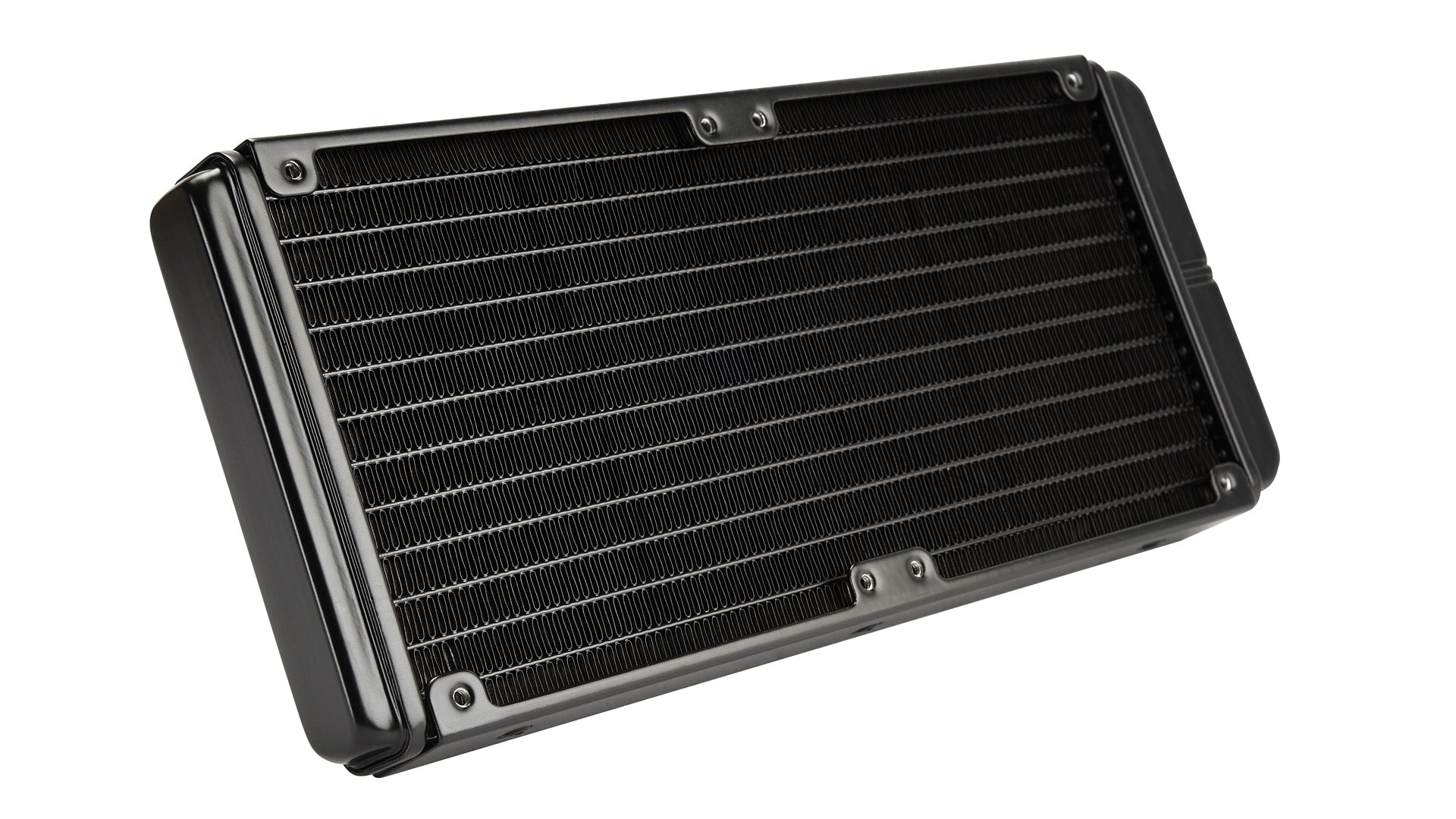

Radiator | ||
Dimensions | 154 x 120 x 27mm | 274 x 120x 27mm |
Material | Aluminium | |
Tubes | ||
Length | 400mm | |
Material | Rubber (Polyamide) | |
Fan | ||

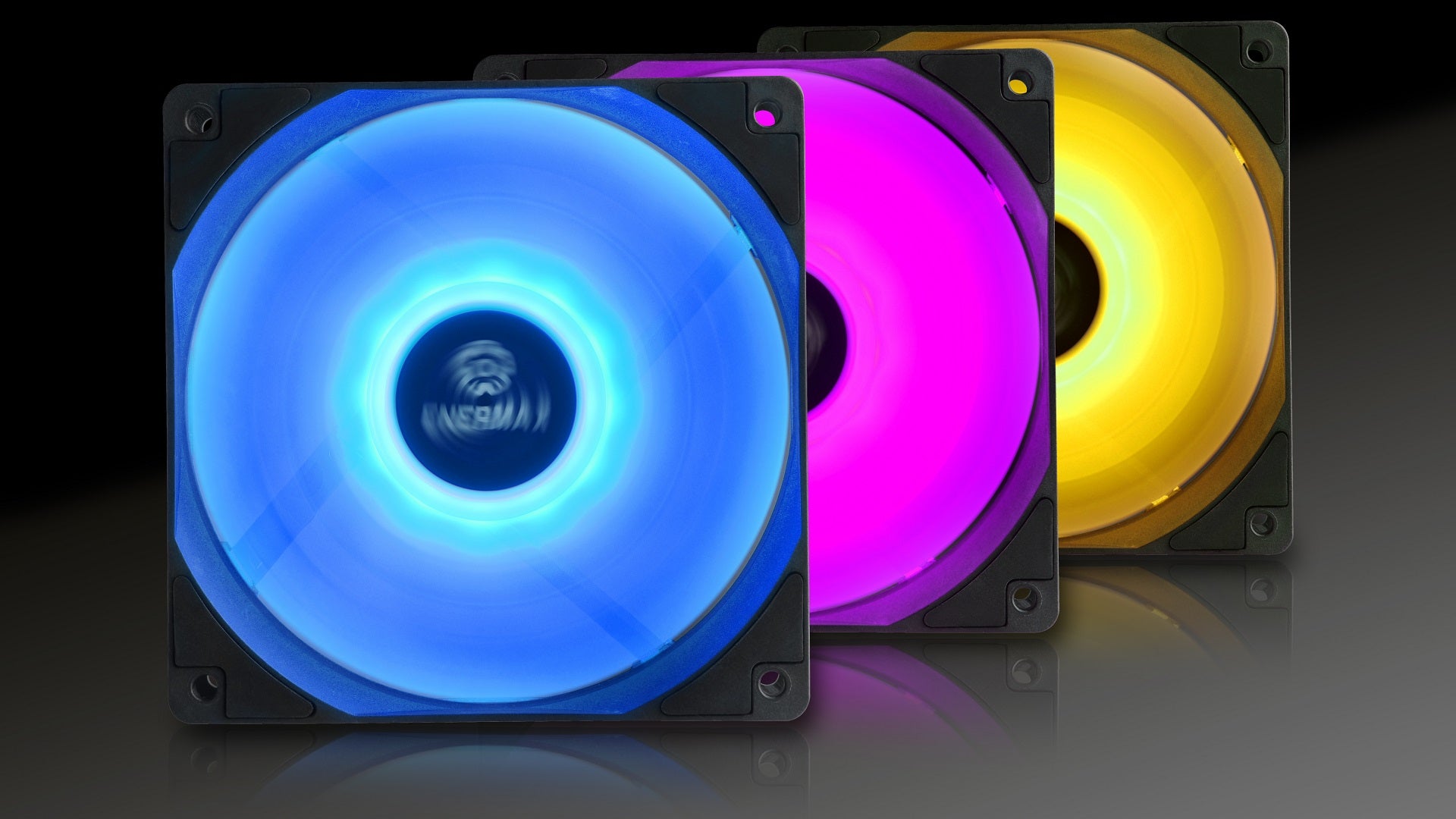

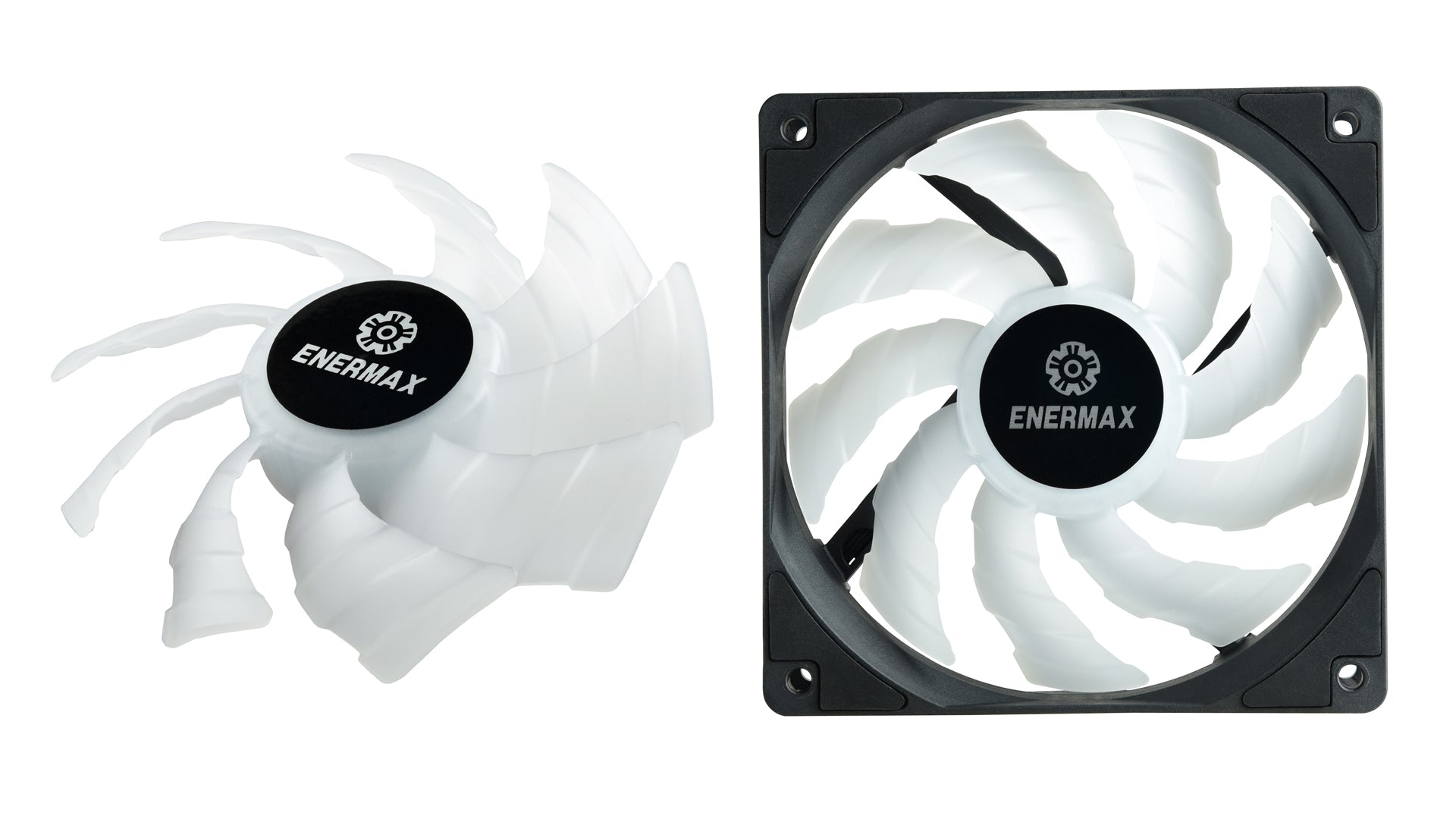

Fan Model | Dual-Convex RGB Fan | |
Bearing Type | – | |
MTBF | 50,000h | |
Fan Dimensions | 120 x 120 x 25mm | |
Fan Speed | 500 – 1,600RPM | |
Rated Voltage Fan | 12V | |
Rated Current Fan | 0.17 A | |
Rated Voltage LED | 12V | |
Rated Current LED | 0.36 A | |
Fan Power Connector | 4 pin PWM (GND/12V/Tacho/PWM) | |
Quantity | 1 | 2 |
Noise Level | 14 – 27dB(A) | |
Air Flow | 22.5 – 72.1CFM | |
Static Pressure | 0.2 – 1.98mm-H2O | |
Included in the delivery | Liquid cooler, 12 cm Dual-Convex RGB PWM fan, universal mounting kit for Intel® and AMD® sockets, Dow-Corning® Thermal Grease (TC-5121), RGB sync cable, SATA to 4 pin PWM power cable, installation guide | Liquid cooler, 2x 12 cm Dual-Convex RGB PWM fan, universal mounting kit for Intel® and AMD® sockets, Dow-Corning® Thermal Grease (TC-5121), PWM fan Y-cable, RGB sync cable, SATA to 4 pin PWM power cable, installation guide |
Dealer Information | ||
---|---|---|
ELC-LMT120-RGB | ELC-LMT240-RGB | |
Product Dimensions | 154 x 120 x 53mm | 274 x 120 x 53mm |
Product Weight | 0.690 Kg | 0.795 Kg |
Product Box Dimensions | 254 x 215 x 137mm | 317 x 205 x 137mm |
Product Box Gross Weight | TBA | TBA |
Master Carton Dimensions | 539 x 300 x 460mm | 435 x 342 x 440mm |
Master Carton Gross Weight | 12.55kg | 11.65kg |
Master Carton Pieces | 8 | 6 |
EAN-Code | 4713157724250 | 4713157724410 |
