商品說明

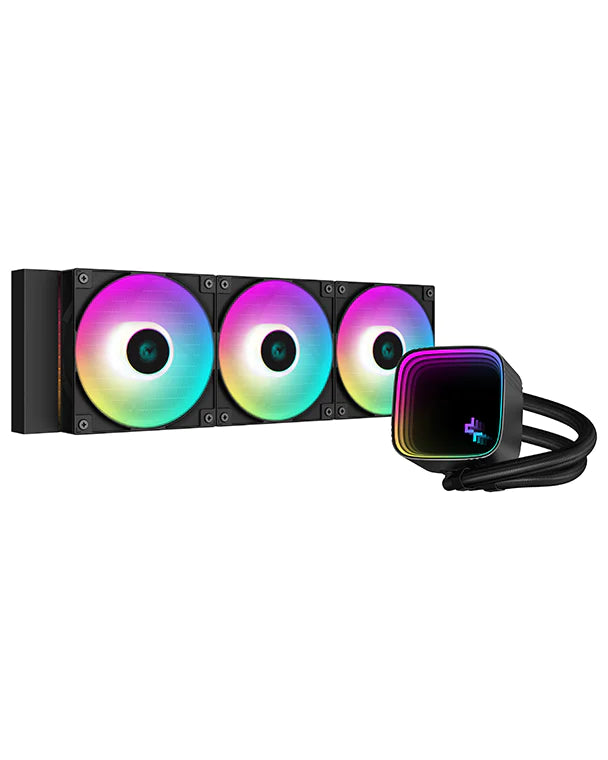

DEEPCOOL LS系列 SE版
-冷頭採用無限鏡設計
-已附送強效風扇 5V ARGB FAN 85.85 CFM , ≤32.9 dB(A)
-DEEPCOOL 自家第4代高性能水泵設計, 優化微水路，確保冷液高效流動, 強勁高轉三相驅動馬達，轉速高達3100 RPM, 大尺寸加厚底座，無縫貼合CPU
-冷頭採用無限鏡設計
-已附送強效風扇 5V ARGB FAN 85.85 CFM , ≤32.9 dB(A)
-DEEPCOOL 自家第4代高性能水泵設計, 優化微水路，確保冷液高效流動, 強勁高轉三相驅動馬達，轉速高達3100 RPM, 大尺寸加厚底座，無縫貼合CPU
LS520 SE
240mm Liquid CPU Cooler
A NEW ERA OF DeepCool
Built on our 4th Generation high-performance water pump design that maximizes cooling performance featuring:
1Optimized microchannels ensure
efficient coolant flow.
efficient coolant flow.
2Powerful three-phase drive
motor up to 3100 RPM.
motor up to 3100 RPM.

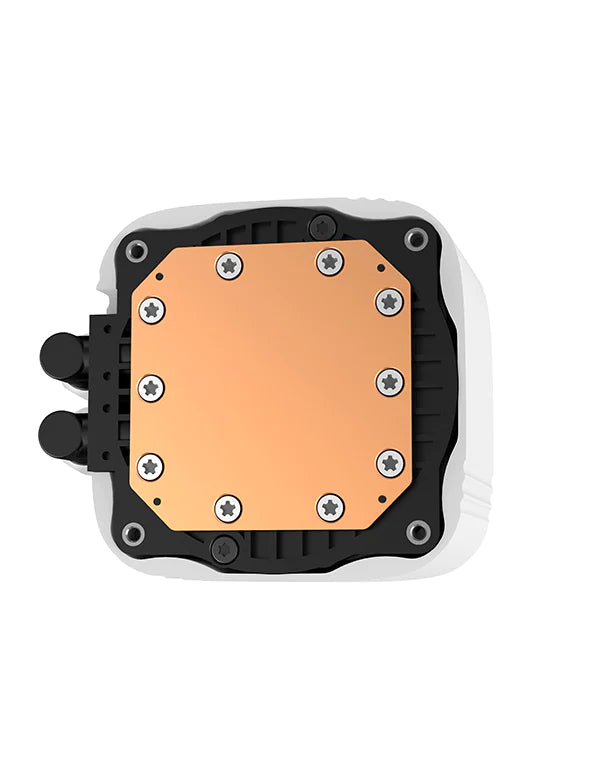

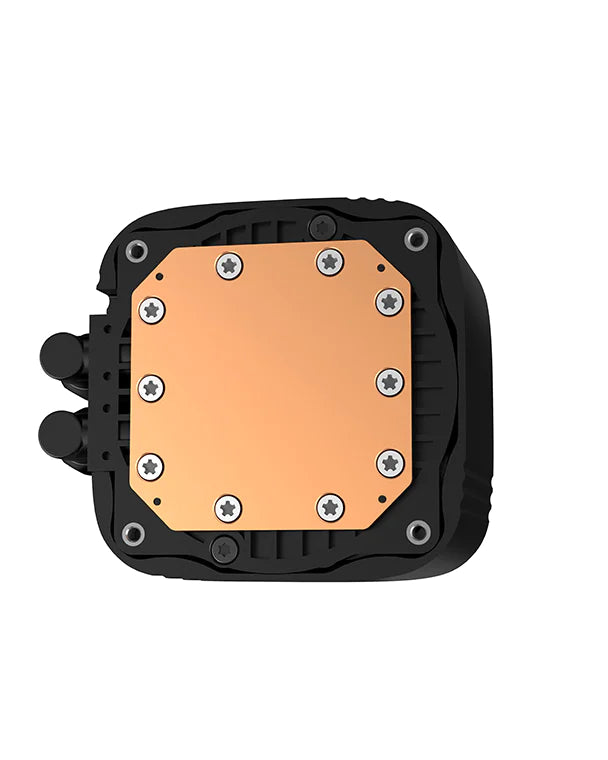

3Thick solid copper coldplate
with a seamless match.
with a seamless match.

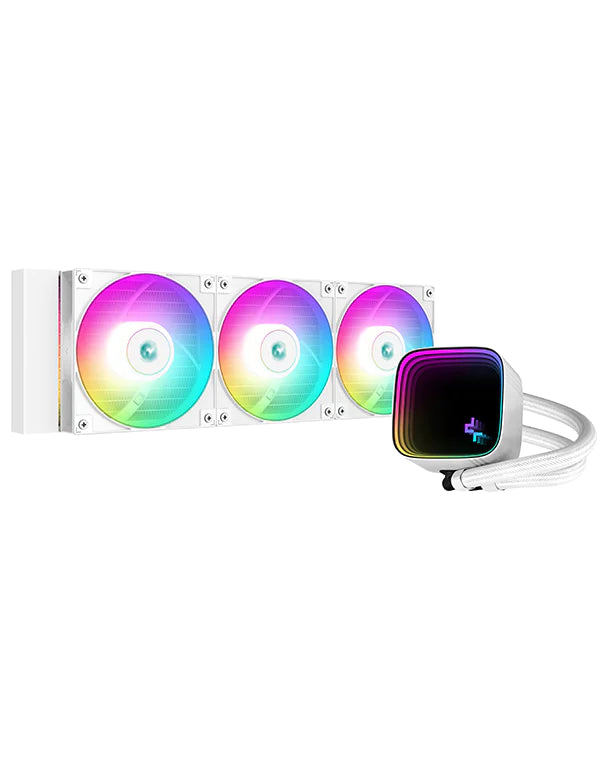

RADIANT REFLECTIONS
A mirror-plated top cover with a narrow frame captures an infinite reflection of 16 RGB LEDs for a vibrant visual effect. The smooth aluminum housing adds a premium finishing touch and a lustrous shine.
EFFICIENCY AT ITS FINEST

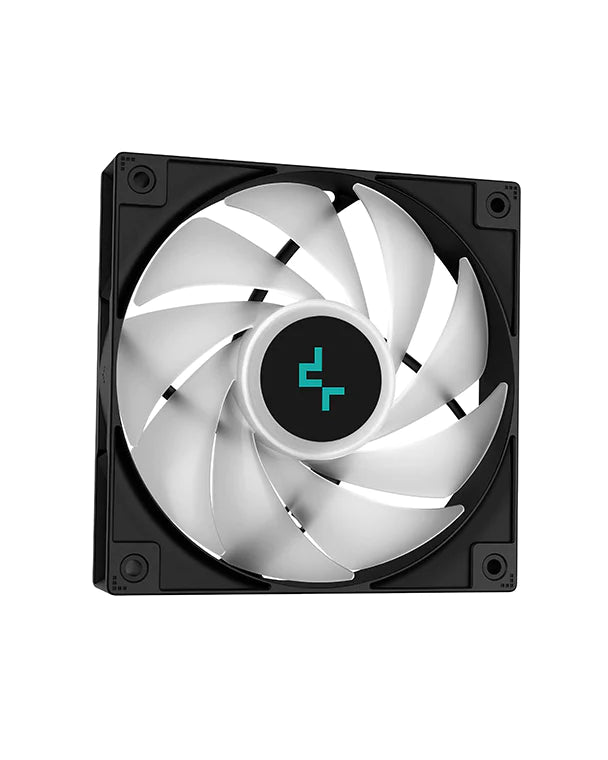

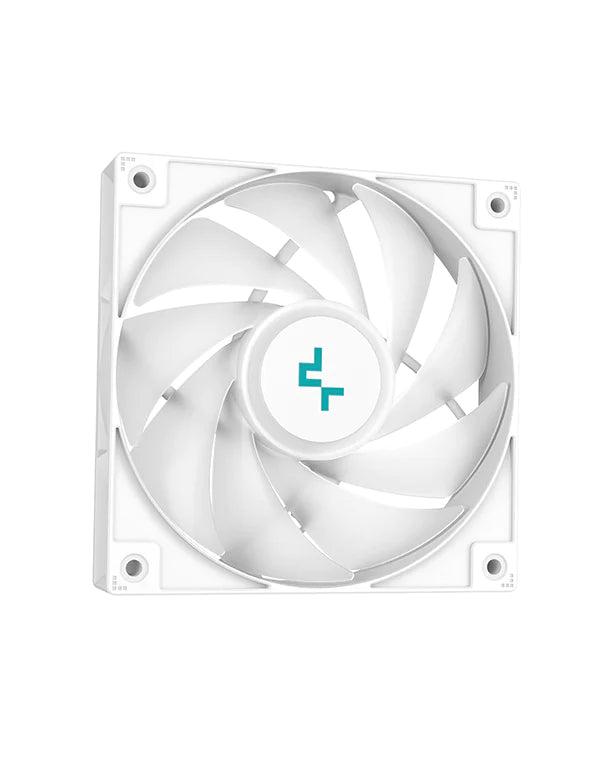

Keep your cool with 120mm ARGB PWM fans that beat the heat with maximum static pressure and powerful airflow. An included low-speed adapter reduces maximum noise by up to 10dB for ultimate silence.
500~2250 RPM
Dynamic PWM Range
85.85 CFM
Supreme Airflow
3.27 mmAq
Air Pressure
≤32.9 dB(A)
Full Load Noise
SYNC UP YOUR SETUP
Easily control and coordinate your cooler's RGB lighting effects via compatible motherboards and controllers for full customization.

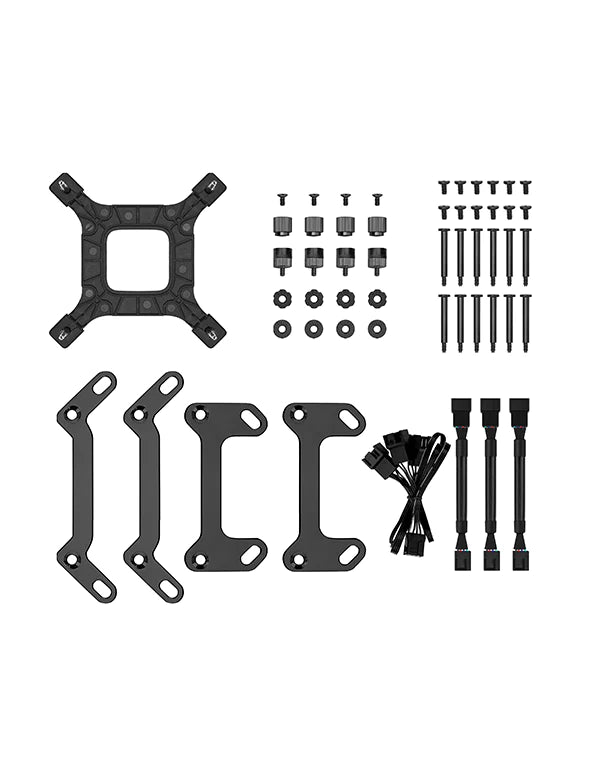

QUICK INSTALLATION
Sturdy mounting brackets are included for both Intel and AMD sockets that are simple and easy to install.
INTEL
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Application For
Intel
LGA1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Spec
| Net Weight | 1346 g |

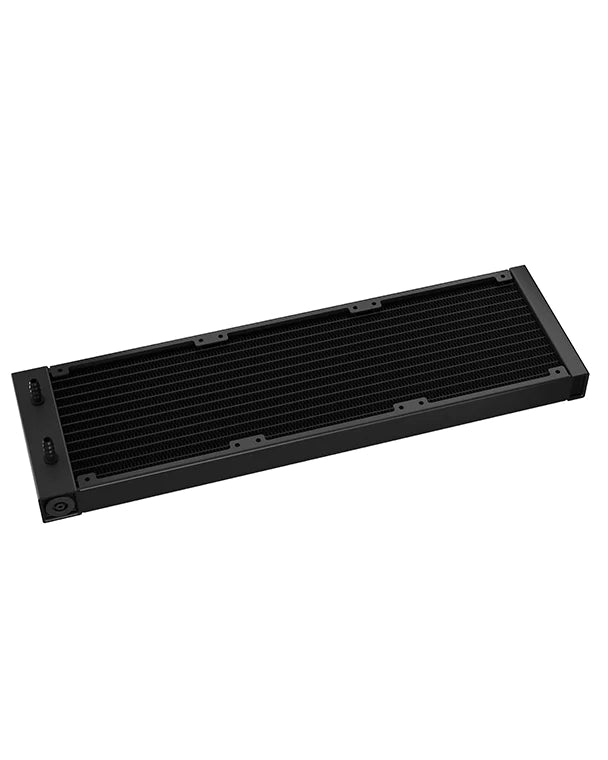

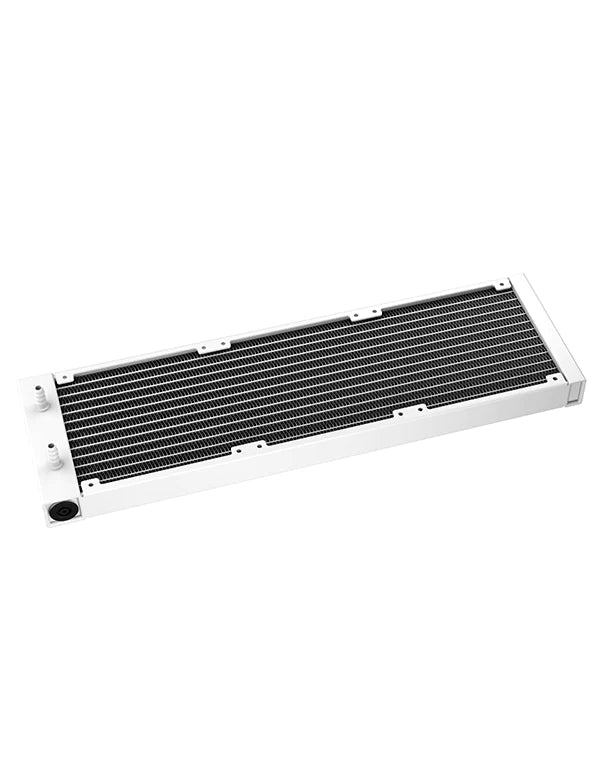

| Radiator Dimensions | 282×120×27 mm |
| Radiator Material | Aluminum |
| Tube length | 410 mm |
| Pump Dimensions | 85×73×55 mm |
| Pump Speed | 3100 RPM±10% |
| Pump Noise | 19 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.38 A |
| Pump Power Consumption | 4.56 W |
| Fan Dimensions | 120×120×25 mm |
| Fan Speed | 500~2250 RPM±10% |
| Fan Airflow | 85.85 CFM |
| Fan Air Pressure | 3.27 mmAq |
| Fan Noise | ≤32.9 dB(A) |
| Fan Speed (with LSP) | 500~1600 RPM±10% |
| Fan Airflow (with LSP) | 60.85 CFM |
| Fan Air Pressure (with LSP) | 1.65 mmAq |
| Fan Noise (with LSP) | ≤28.2 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.25 A |
| Fan Power Consumption | 3.0 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 2.7 W（PUMP）/ 2.1 W（FAN×2） |
| EAN | 6933412727996 |
| P/N | R-LS520-WHAMMM-G-1 |
Product Dimension
