Flexible Traffic Control Bandwidth Control and Session Limit enables the administrators to flexibly manage network bandwidth to optimize usage.	Internet Access Management Strategy Standardize users’ online behavior and easily specify the internet access rights and strategies of employee via IP/MAC/URL Filtering and Access Control List (ACL).
Multi-Wan Load Balancing Intelligent load balancing function distributes data streams according to the bandwidth proportion of each WAN port to raise the utilization rate of multi-line broadband allowing one device to satisfy various internet requirements.	Compact Desktop Design Durable metal casing and desktop/wall-mounting design suited for different environments.









Specifications

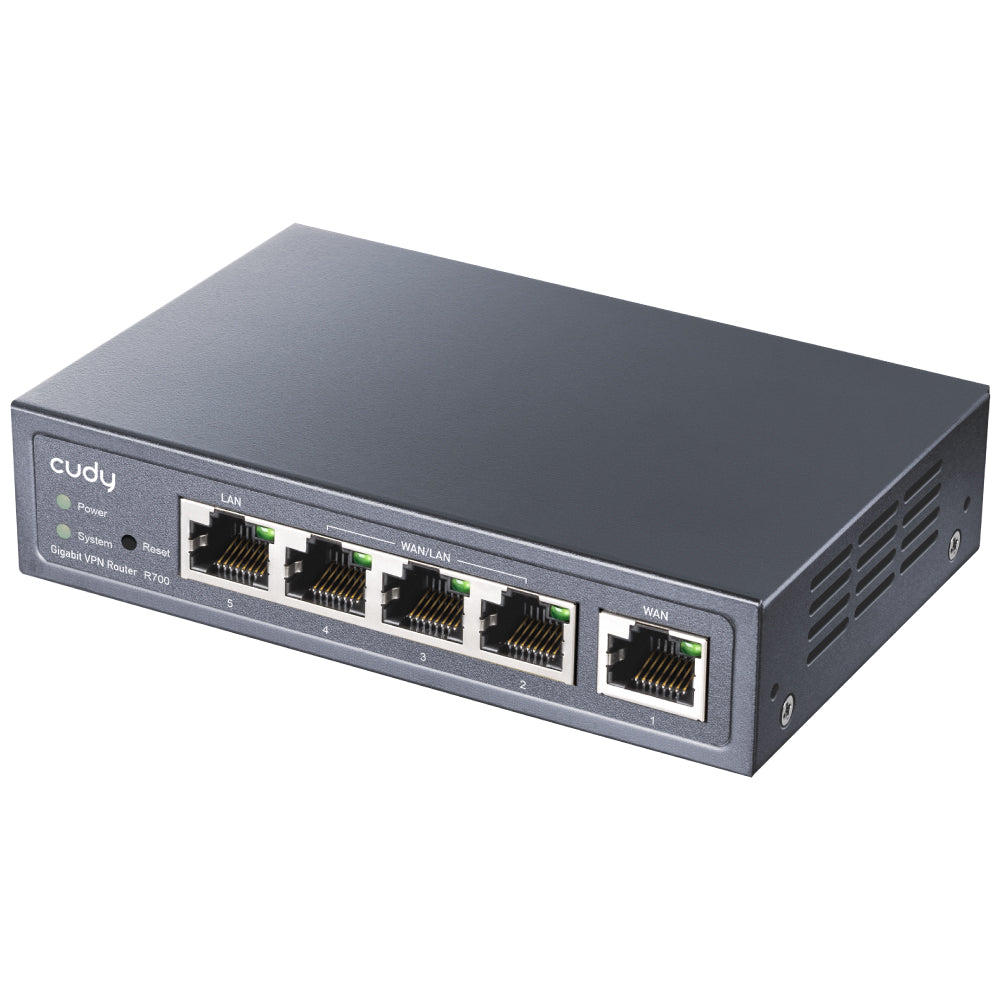

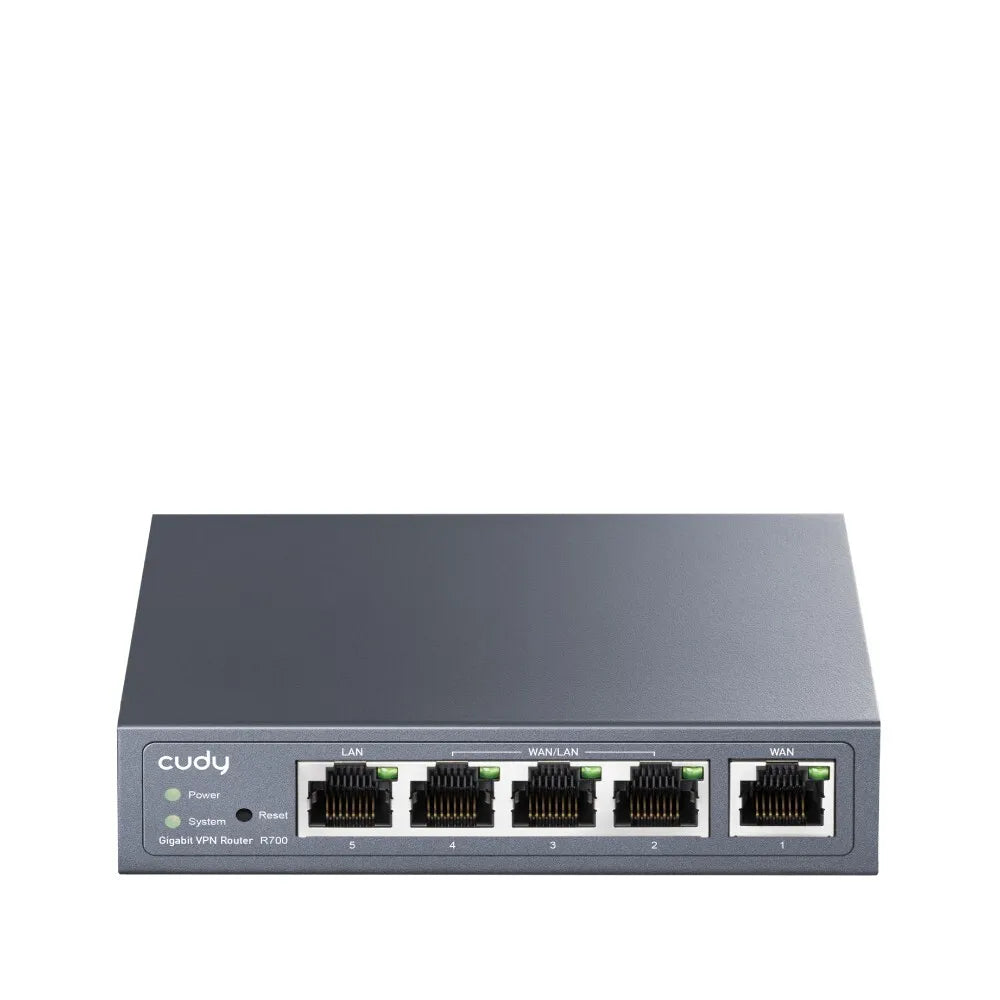

Product Model	R700
Standards and Protocols	IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1q TCP/IP, DHCP, ICMP, NAT, PPPoE,HTTP, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard, Zerotier
Interface	1 Gigabit WAN port 3 Gigabit LAN/WAN ports 1 Gigabit LAN ports
Network Media	10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m) 1000BASE-T: UTP category 5e, 6 cable (Max 100 m)
Button	Reset Button

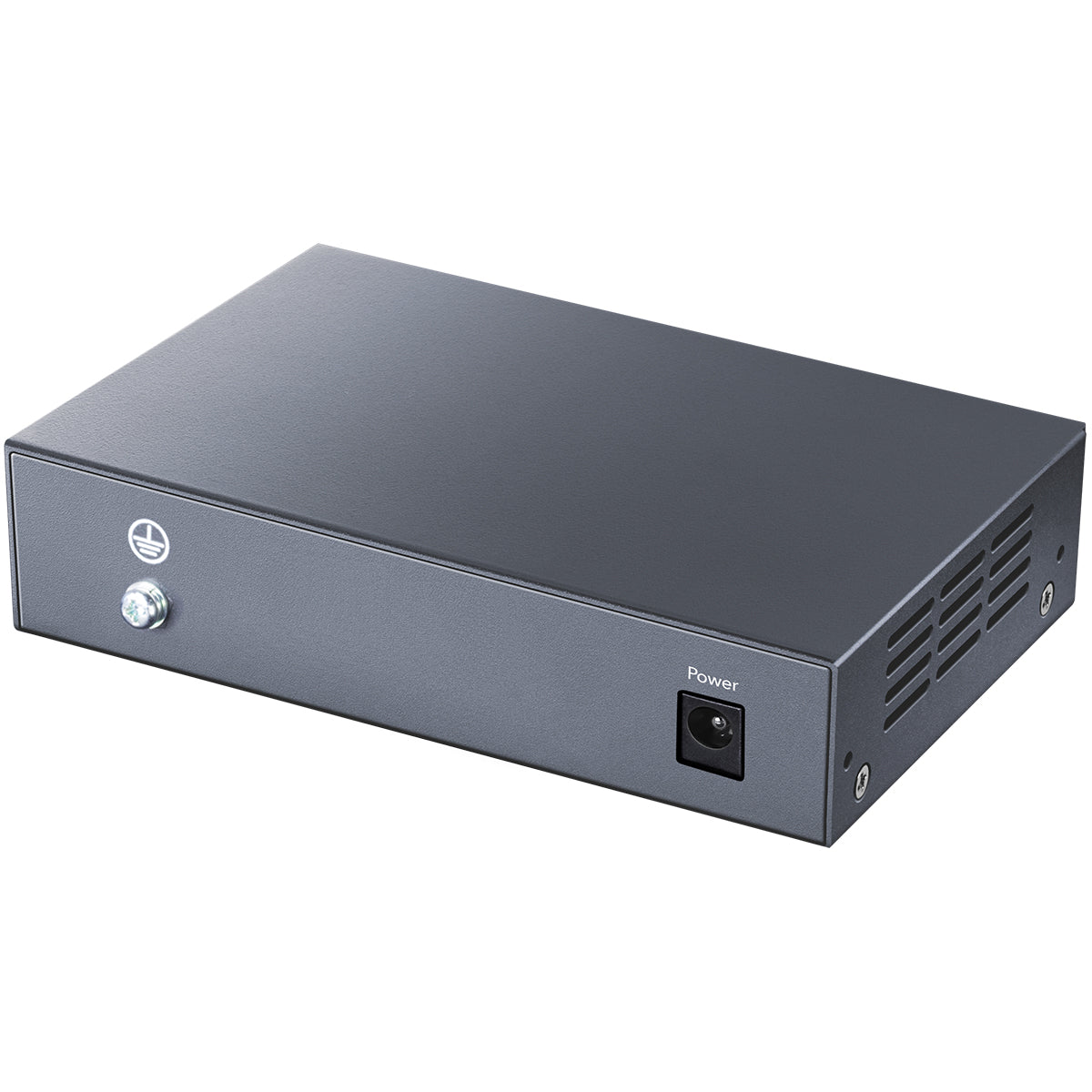

Power Supply	External 12V/1A DC Adapter
Flash	16 MB NOR Flash
DRAM	128 MB DDR
LED	PWR, SYS, WAN (Link/Act), LAN (Link/Act)
Dimensions ( W x D x H )	119×85×28 mm
