Specifications

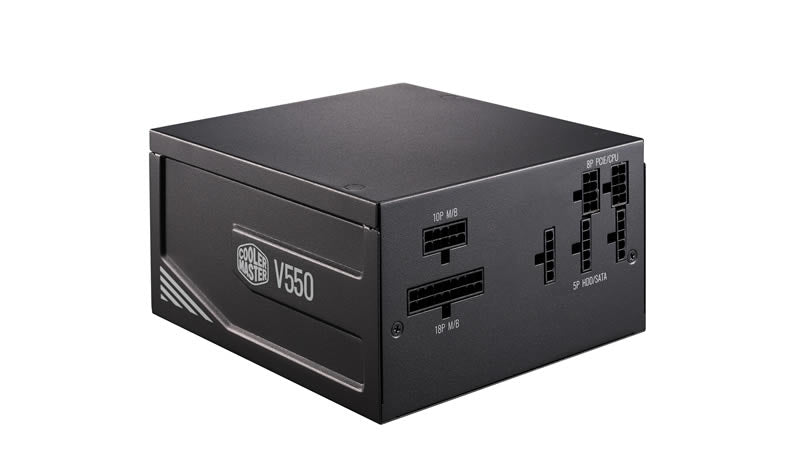

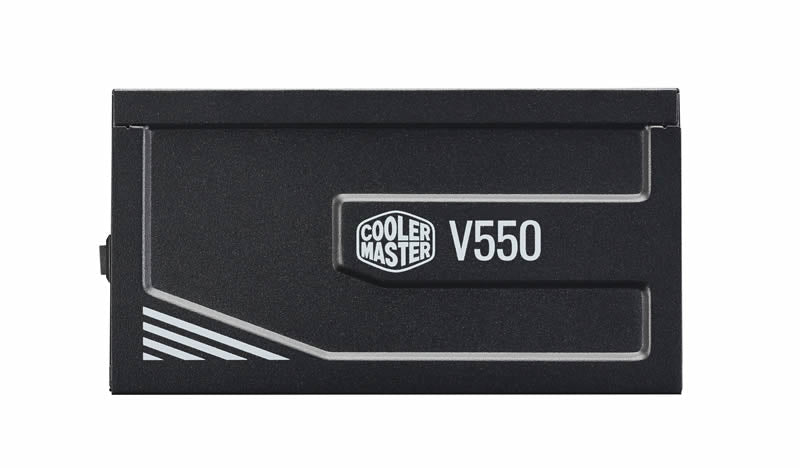

| Product Name | V550 Gold |

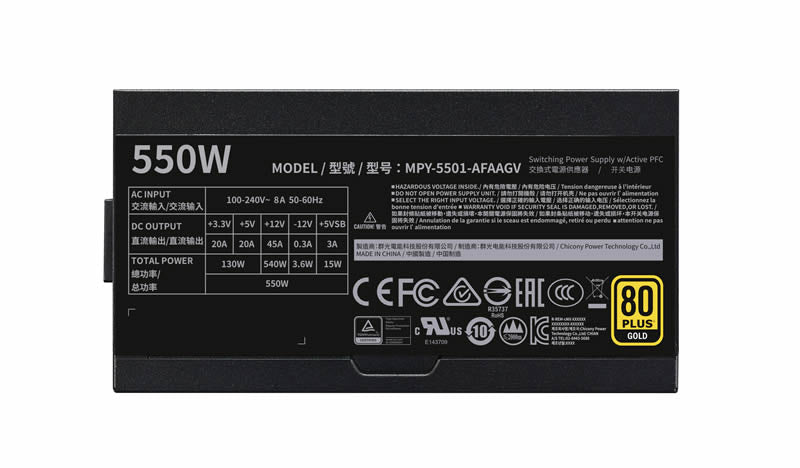

| Model | MPY-5501-AFAAGV |
| ATX Version | ATX 12V |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 8-4A |
| Input Frequency | 50-60Hz |
| Dimensions | 160 (L) x 150 (W) x 86 (H) mm |

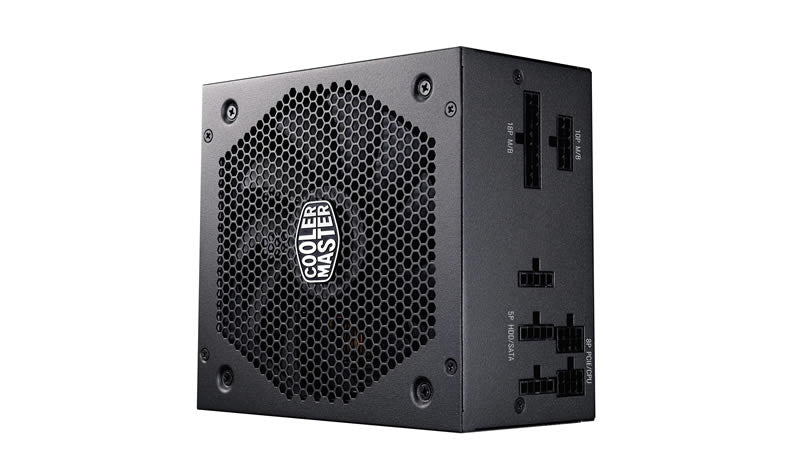

| Fan Size | 135mm |
| Fan Bearing | FDB |
| Fan Speed | 1161 RPM |
| Noise @ 20% | 0 dBA |
| Noise @ 50% | 18.3 dBA |
| Noise @ 100% | 24.9 dBA |
| Efficiency | 90% Typical Load |
| 80 PLUS Rating | 80 PLUS Gold |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0~50°C |
| Power Good Signal | 100-500ms |
| Hold Up Time | 17ms |
| MTBF | >100,000 hours |
| Protections | OVP/OPP/SCP/OCP/UVP/OTP |
| Regulatory | CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB |

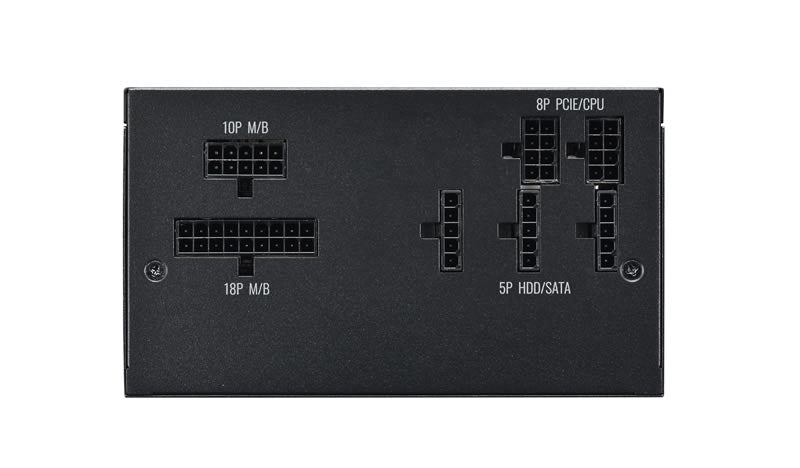

| ATX 24 Pin Connector | 1 |
| EPS 4+4 Pin Connector | 1 |
| SATA Connector | 8 |
| Peripheral 4 Pin Connector | 4 |
| FDD Connector | 1 |
| PCI-e 6+2 Pin Connector | 2 |
