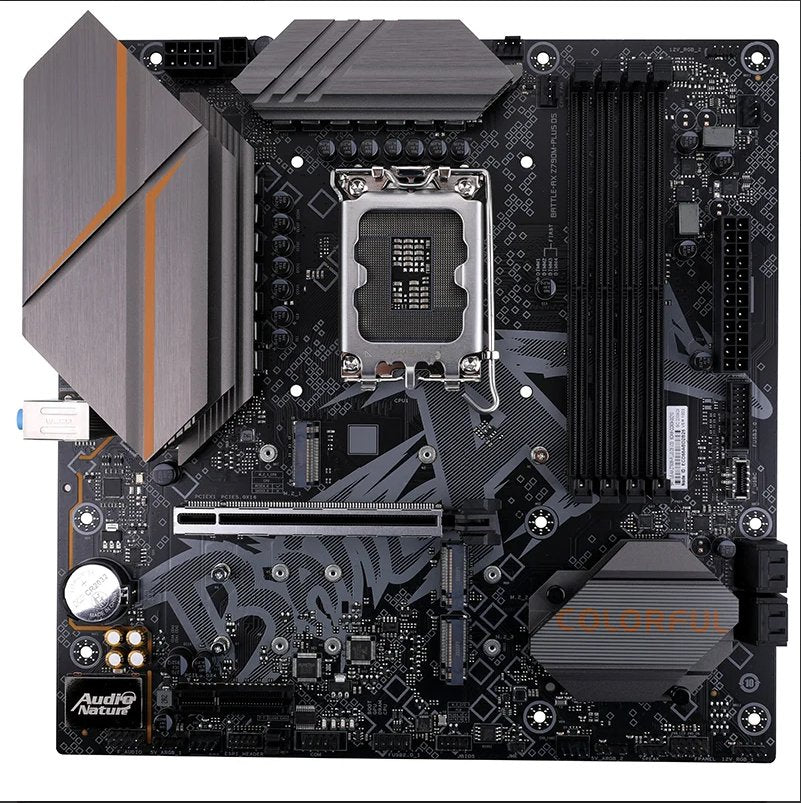

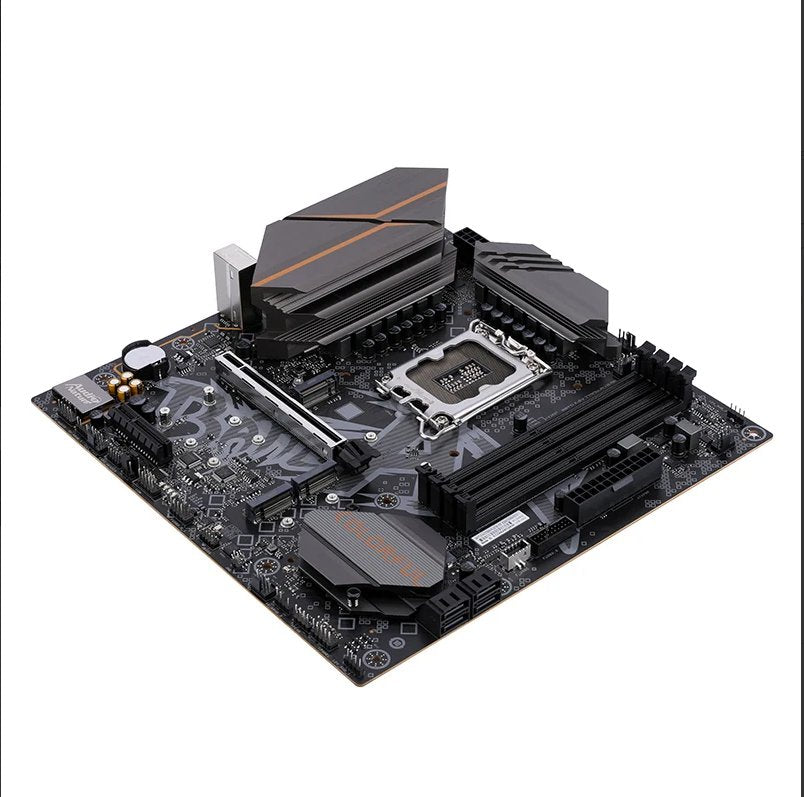

Product Series BATTLE-AX series
Chipset Intel Z790
Processor Support the 13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor
(* Please visit for the latest memory compatibility list)
Memory 4 DDR5 memory sockets are provided, which can support up to 128 GB of memory (a single socket can support up to 32 GB of memory)
- Support DDR5-6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory
- Intel is supported ® Extreme Memory Profile (XMP) memory technology
- supports dual channel memory technology
(* Please visit for the latest memory compatibility list)
SATA Ports 3 M.2 slots and 6 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA or M.2 NVMe hard disk devices
- M.2_1 slot: support 2242/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel)
- M.2_2/M.2_3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)
(* See the official BIOS user guide of Colorful for the steps to create a RAID disk array)

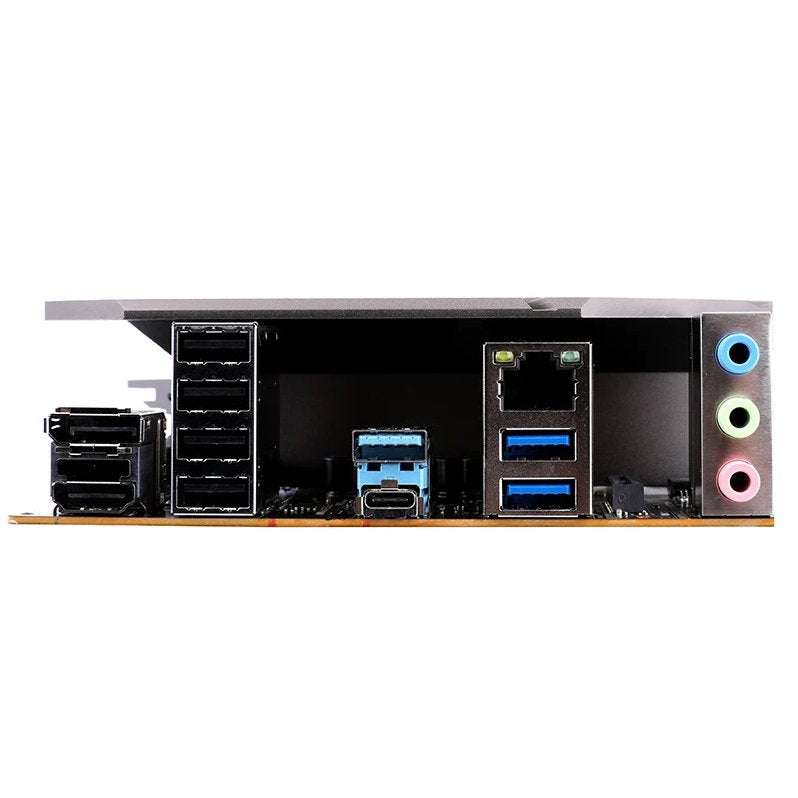

Board I/O Rear I/O:
- 4×USB 2.0 interfaces
- 1×USB 3.2 Gen 2 Type-C interface
- 1×USB 3.2 Gen 2 Type-A interface
- 2×USB 3.2 Gen 1 Type-A interfaces; 4×USB 2.0 interfaces
- 1×DP 1.2 interface, supporting a maximum resolution of 4K 60Hz
- 1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution
- 1×2.5G network interface
- 3×audio interfaces
On board:
- 1×USB 2.0 pin
- 1×USB 3.2 Gen 1 pin
- 1×USB 3.2 Gen 1 Type-C slot
- 1×CPU fan pin
- 3×system fan pins
- 1×water cooling pump pin
- 2×5V 3-pin ARGB pins
- 2×12V 4-pin RGB pins
- 1×front audio pin
- 1×front panel pin
- 1×spraker pin
- 1×CMOS clearing key
- 1×serial port contact pin
- 1×BIOS burner pin
- 1×POST card pin
- 1×ME write protection jumper
- 1×RGB light effect control jumper
Expansion Slots 1×PCIe 5.0 x16 slot
1×PCIe 3.0 x4 slot
BIOS 128M UEFI, support multiple languages
Power Management Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot
Hardware Monitor CPU fan speed is controllable, system fan speed is controllable(Fan1 supports independent control and Fan2 and Fan3 share control), CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
LAN RTL8125 2.5Gbit LAN
Audio 5.1-Channel High Definition audio CODEC
Configuration M-ATX
245 x 245 mm
