Model Name
XD6 (W-1-PK)/XD6S (W-1-PK)
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX5400 ultimate AX performance : 574+4804 Mbps
Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) (1024QAM) : up to 500 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
Antenna
internal antenna x 6
Transmit/Receive
2.4GHz 2x2
5GHz 4x4
Processor
1.5 GHz tri-core processor
Memory
XD6
256 MB Flash
512 MB RAM
XD6S
128 MB Flash
512 MB RAM
Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4 G Hz / 5 GHz

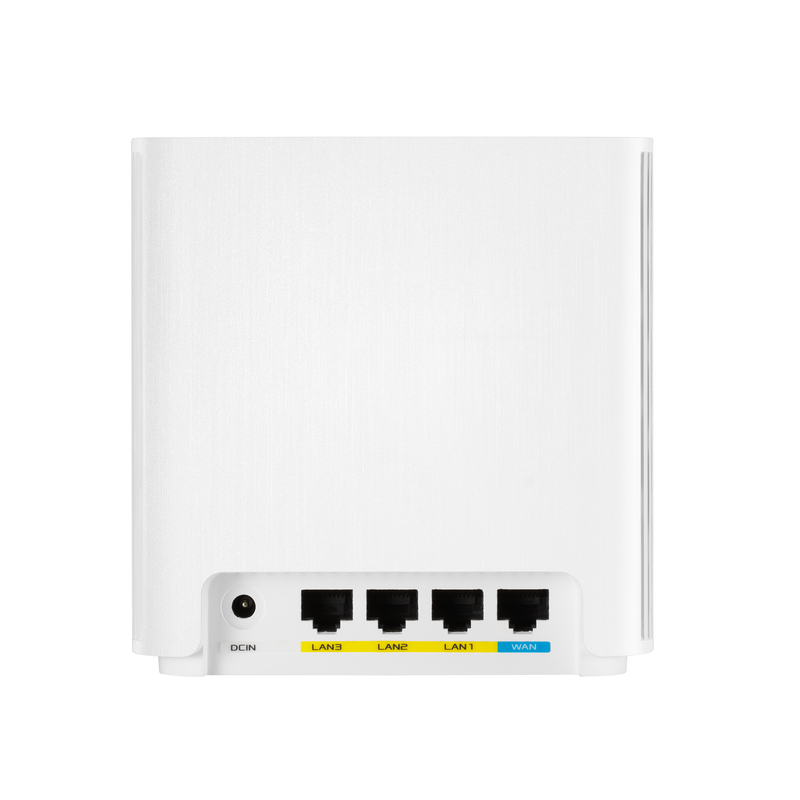

Ports

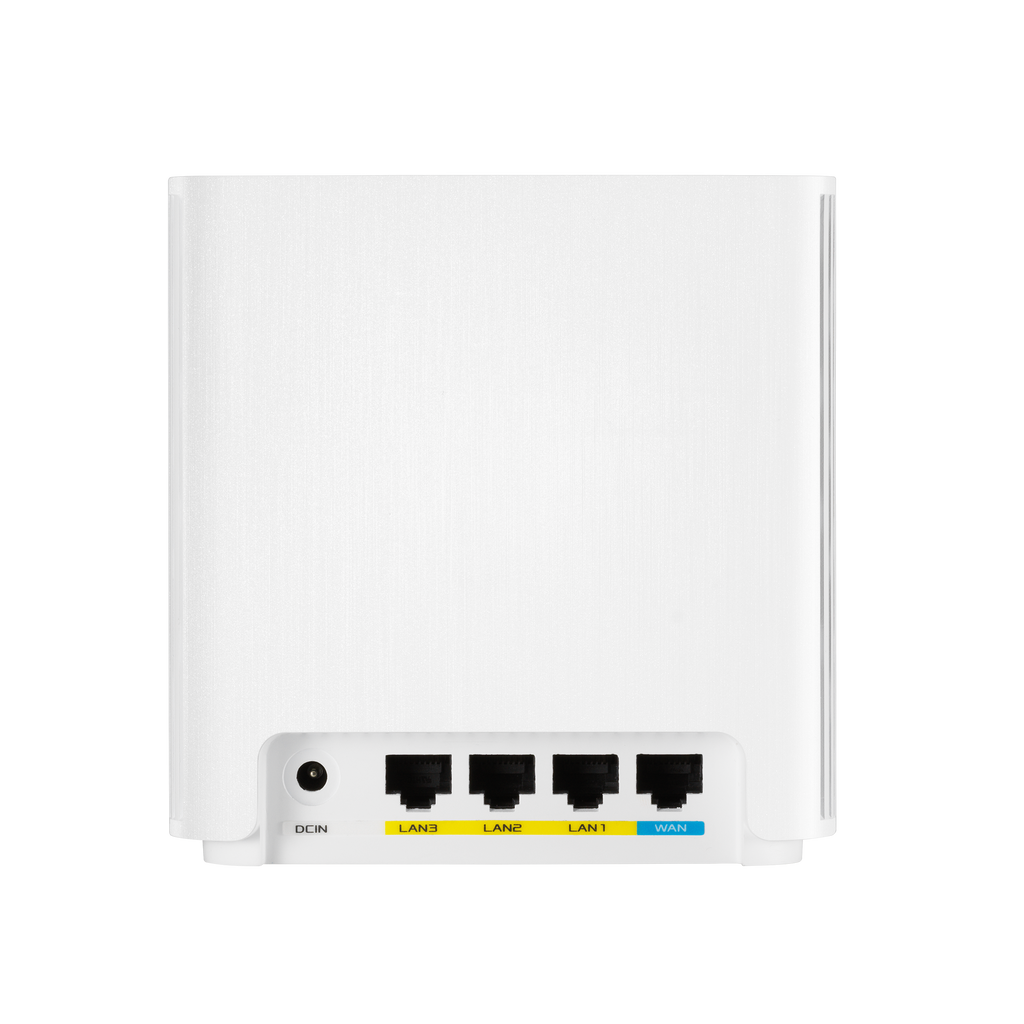

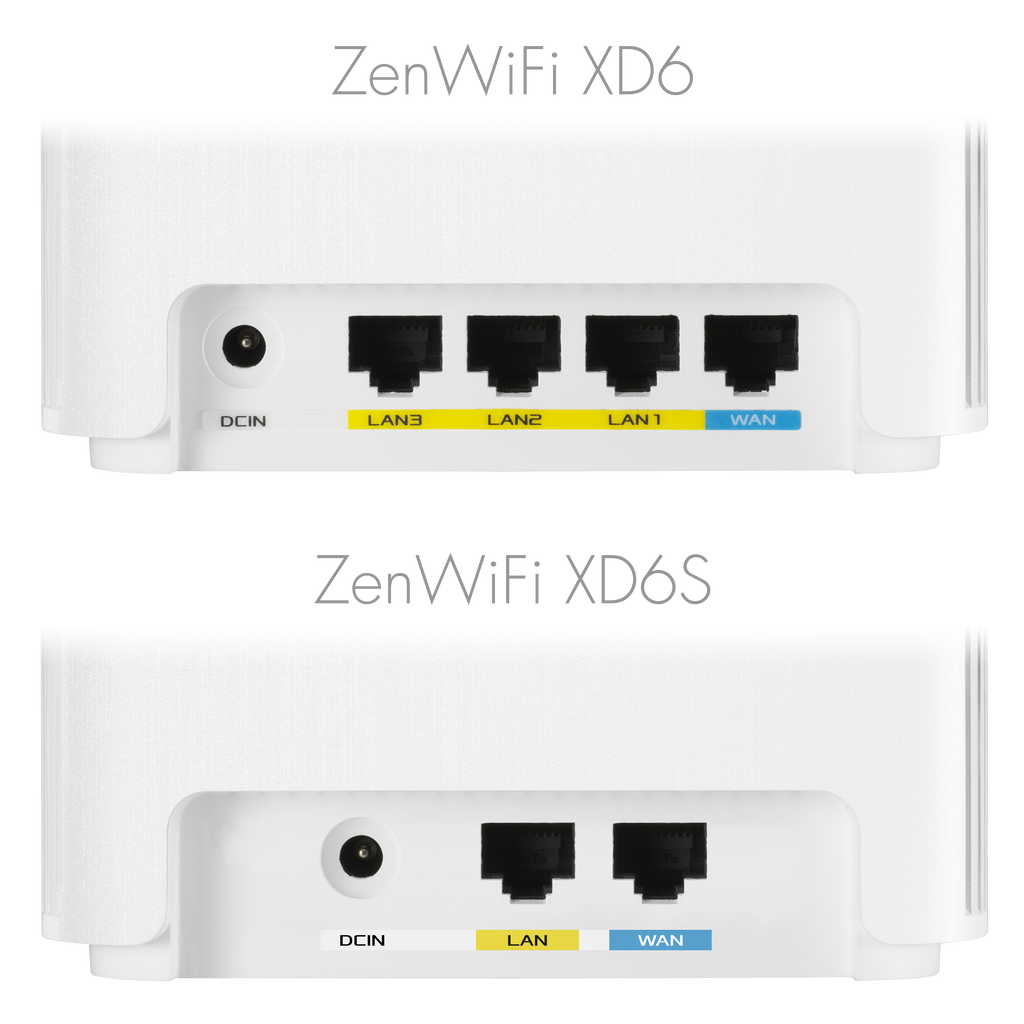

XD6: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
XD6S: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 1
Button
WPS Button, Reset Button
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2 A current
Package content

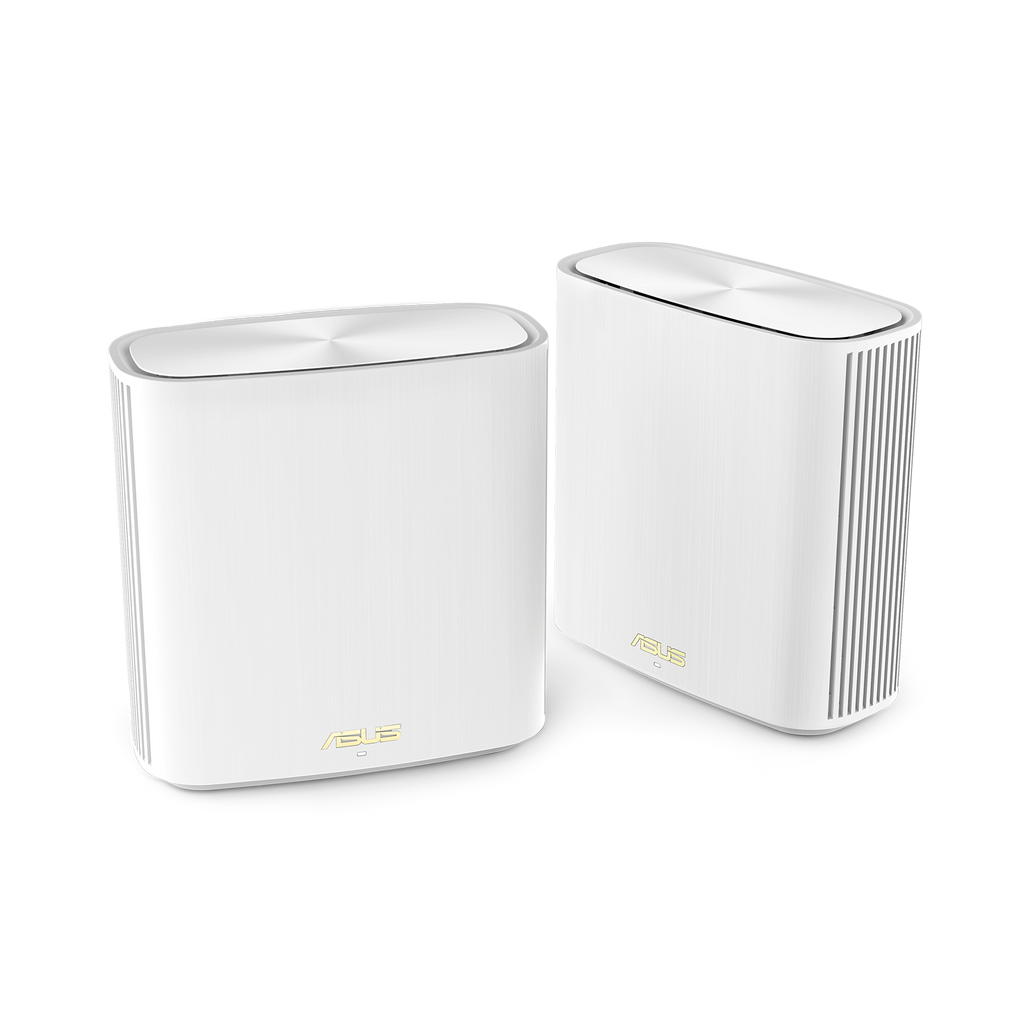

ZenWiFi XD6
RJ-45 cable
Power adapter
Warranty card
Quick start guide
ZenWiFi XD6S
RJ-45 cable
Power adapter
Wall mount kit
Warranty card
Quick start guide

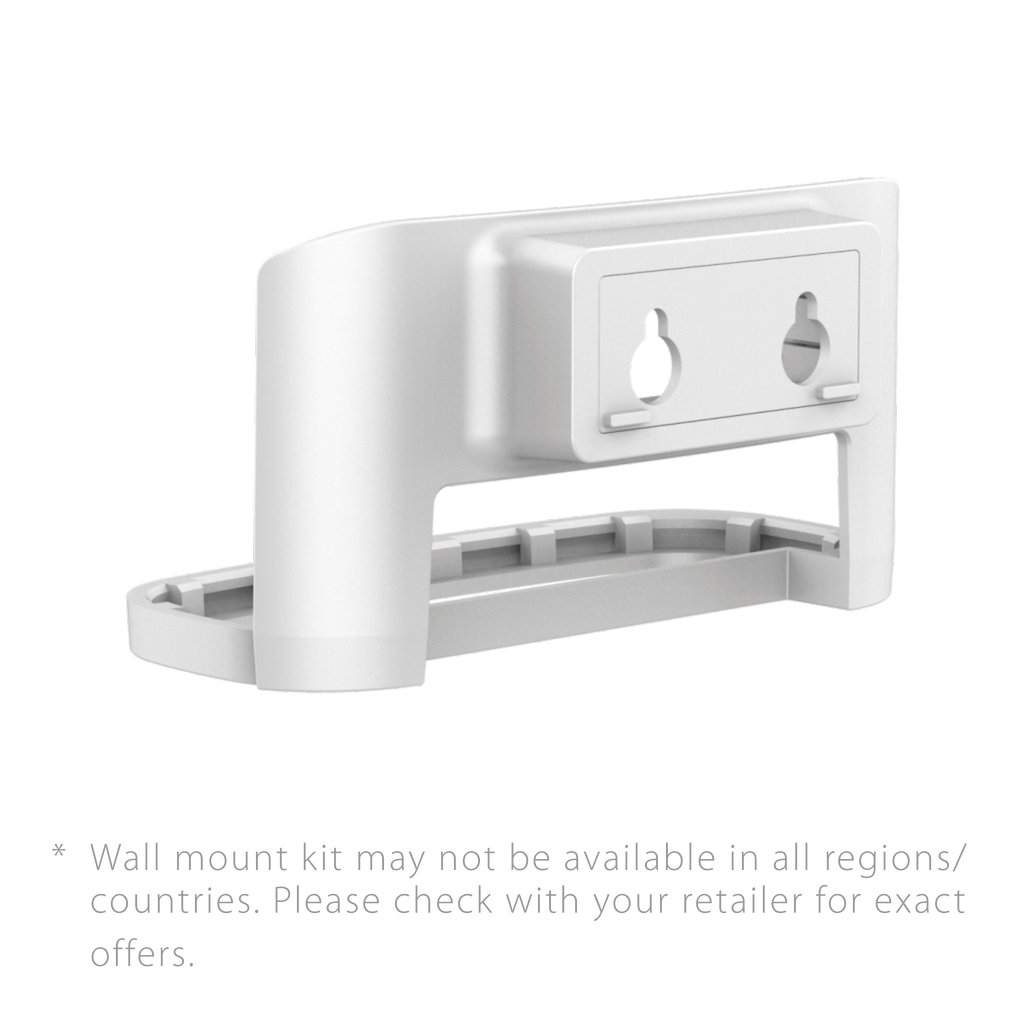

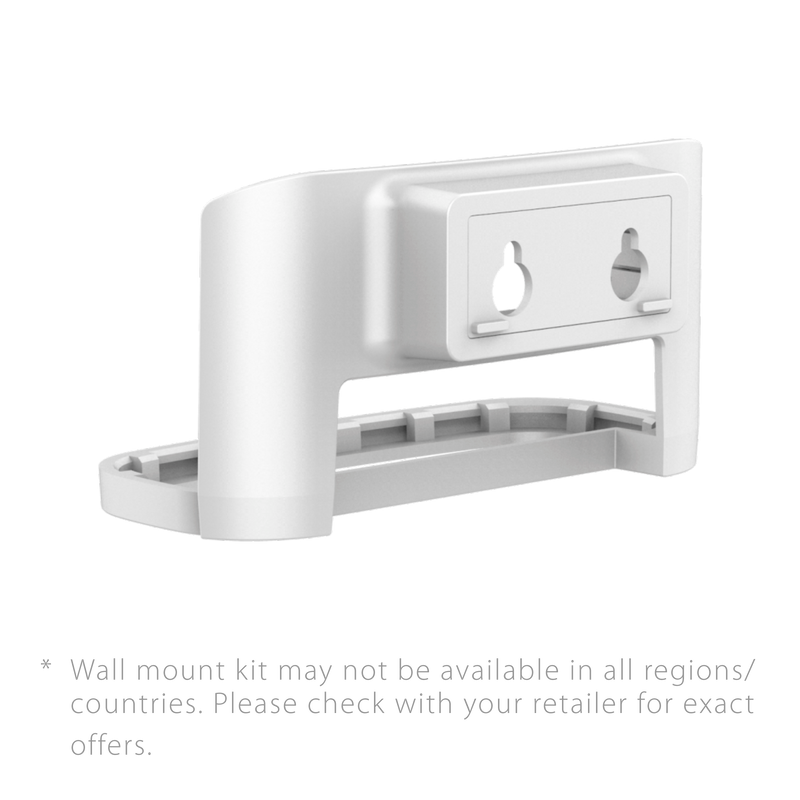

*Wall mount kit may not be available in all regions/ countries. Please check with your retailer for exact offers.
Product Weight (g)
XD6: 435 g
XD6S: 425 g
Remark
Content may vary in different regions and packages.
AiMesh
AiMesh : Yes
Primary AiMesh router : Yes
AiMesh node : Yes
Router APP
ASUS Router APP : Yes
Game
Game Boost/acceleration : No
WTFast : No
Alexa
Support Alexa skill : Yes
AiProtection
AiProtection : AiProtection Pro
Router Security Assessment : Yes
Malicious site blocking : Yes
Two-Way IPS : Yes
Infected Device Prevention and Blocking : Yes
Parental Control
Parental Control : Yes
Parental Control Customized Internet schedule : Yes
Traffic Control
Adaptive QoS : Yes
Bandwidth Monitor : Yes
Bandwidth limiter : Yes
Maximum Bandwidth limiter rule : 32
Traditional QoS : Yes
Maximum Traditional QoS rule : 32
Traffic Monitor : Yes
Real-time traffic monitor : Yes
Wired Traffic Monitor : Yes
Wireless Traffic Monitor : Yes
Traffic Analyzer : Yes
Website history : Yes
Wireless
IPv6 : Yes
MU-MIMO : Yes
UTF-8 SSID : Yes
Guest Network : Yes
Maximum Guest Network rule : 9
Guest Network Connection time limit : Yes
Guest Network Encryption : WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS : Yes
Wi-Fi MAC address filter : Yes
Maximum MAC filters : 64
Wireless scheduler : Yes
Airtime fairness : Yes
RADIUS Server : No
Universal beamforming : Yes
Explicit beamforming : Yes
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN : Yes
WAN Aggregation : No
3G/4G LTE dongle : No
Android tethering : No
Port forwarding : Yes
Maximum port forwarding rule : 64
Port triggering : Yes
DMZ : Yes
DDNS : Yes
Let's Encrypt : Yes
LAN
DHCP Server : Yes
IGMP snooping : Yes
IPTV : Yes
LAN Link Aggregation : No
Manually assign IP address : Yes
Maximum manually assign IP address rule : 64
VPN
VPN Client L2PT : Yes
VPN Client OVPN : Yes
VPN Client PPTP : Yes
VPN Server IPSec : Yes
VPN Server OVPN : Yes
VPN Server PPTP : Yes
VPN Fusion : No
USB application
HDD hibernation : No
Safely Remove disk : No
AiCloud : No
Download master : No
AiDisk : No
Media Server : No
Time Machine : No
Samba Server : No
FTP Server : No
Shared Folder privileges : No
Administration
Operating mode : Wireless router mode
Range extender mode
Access point mode
Media bridge mode
Operating system : ASUSWRT
Free OS upgrade : Yes
Firewall : Yes
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL) : Yes
SSH : Yes
Configuration backup and restore : Yes
Diagnosis tools : Yes
Feedback system : Yes
System log : Yes
Product Dimensions with antennas (L*W*H) mm
126.4 x 59.05 x 129.7 mm
