網路標準
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6
-
Product Segment
AX5400 ultimate AX performance
-
Coverage
Large homes
-
傳輸速率
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 300 Mbps
802.11n (1024 QAM) : up to 500 Mbps
802.11ac (1024 QAM) : up to 4333 Mbps
802.11ax (2.4GHz) : up to 574 Mbps
802.11ax (5GHz) : up to 4804 Mbps
-
天線規格
External antenna x 4
-
Transmit/Receive
2.4 GHz 2 x 2
5 GHz 4 x 4
-
處理器
1.5 GHz tri-core processor
-
系統記憶體
256 MB Flash
512 MB RAM
-
Wi-Fi Technology
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
-
運作頻率
2.4 GHz / 5 GHz
-
Encryption
WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
-
Firewall & Access Control
Firewall: SPI intrusion detection, DoS protection
Access control:Parental control, Network service filter, URL filter, Port filter
-
管理程式
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log
-
VPN Support
IPSec Pass-Through
PPTP Pass-Through
L2TP Pass-Through
IPSec server
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client
-
WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
-
Utilities
Router setup wizard; Firmware restoration; Device discovary; printer setup utility
-
Ports
RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 4
USB 3.2 Gen 1 x 1
-
Features
Range Boost
Router app
Link Aggregation
- 802.3ad
MU-MIMO
Smart Connect
Traffic Analyzer
Adaptive QoS
AiProtection Pro
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz x 3
VPN server : PPTP Server, OpenVPN Server, IPSec server
VPN client : PPTP client, L2TP client, OpenVPN client
NAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay
Mac OS Backup
Enhanced media server (AiPlayer app compatible)
- Image :
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
AiCloud personal cloud service
3G/4G data sharing
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
Dual WAN
IPTV support
Roaming Assist
OFDMA
Beamforming
NVIDIA Geforce Now Cloud Gaming Optimization
Open NAT, easy port forwarding
WAN Aggregation
-
Button
WPS Button, Reset Button, Power Switch, LED on/off Button
-
LED Indicator
Power x 1
Wi-Fi x 2
WAN x 1
-
電源控制器
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current
-
作業系統支援
Windows® 10
Windows® 8
Windows® 7
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
-
規格
275.5 x 184.4 x 165 mm (WxDxH) with antenna
275.5 x 184.4 x 65 mm (WxDxH) without antenna
-
重量
740 g
-
包裝內容

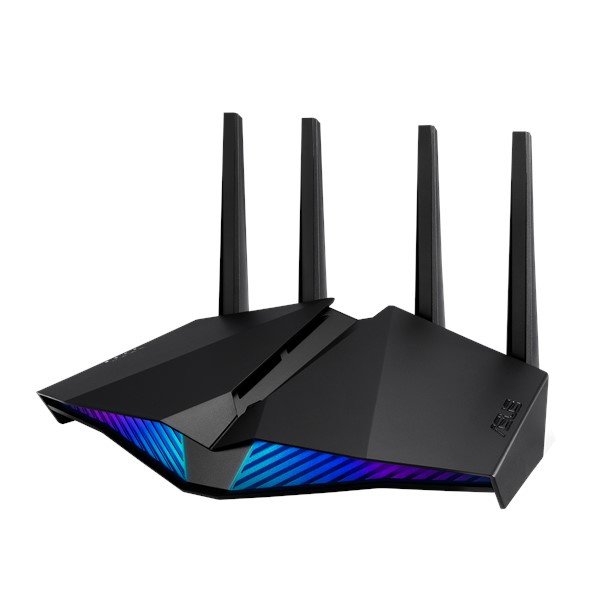

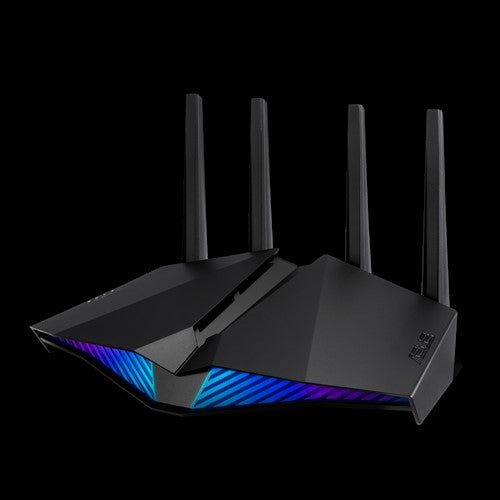

RT-AX82U WiFi router, RJ-45 cable, Power adapter, Quick Start Guide, Warranty card
-
Operation mode
Wireless router mode
Access point mode
Media bridge mode
