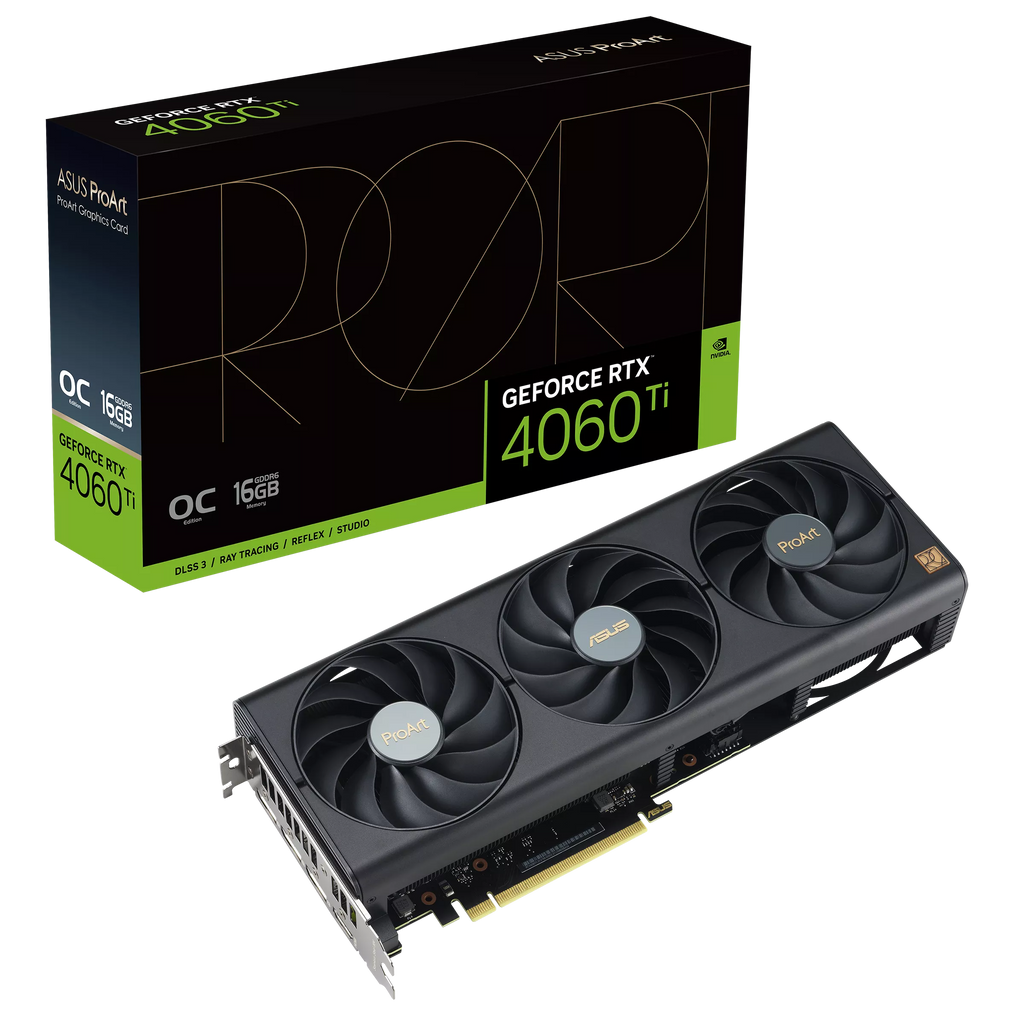

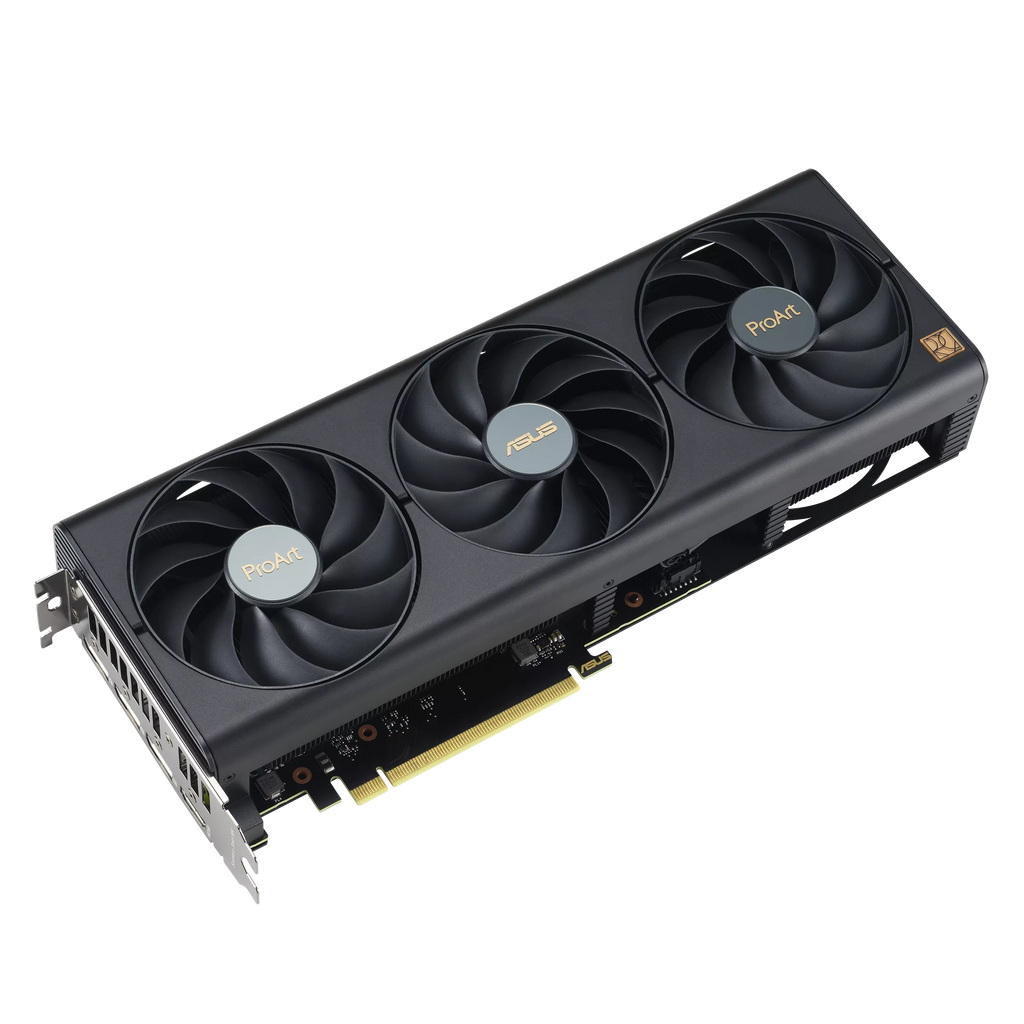

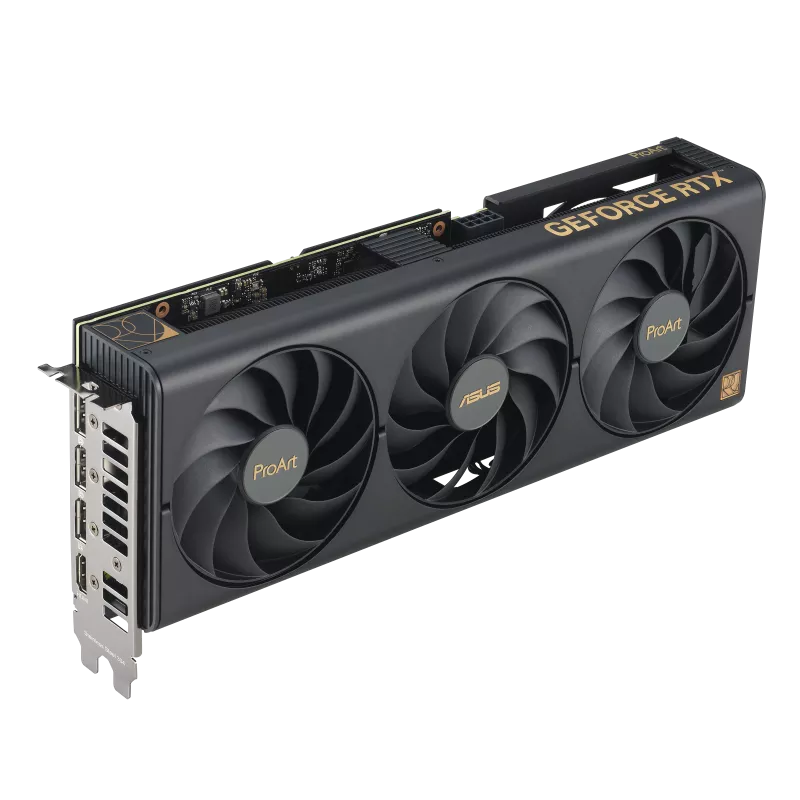

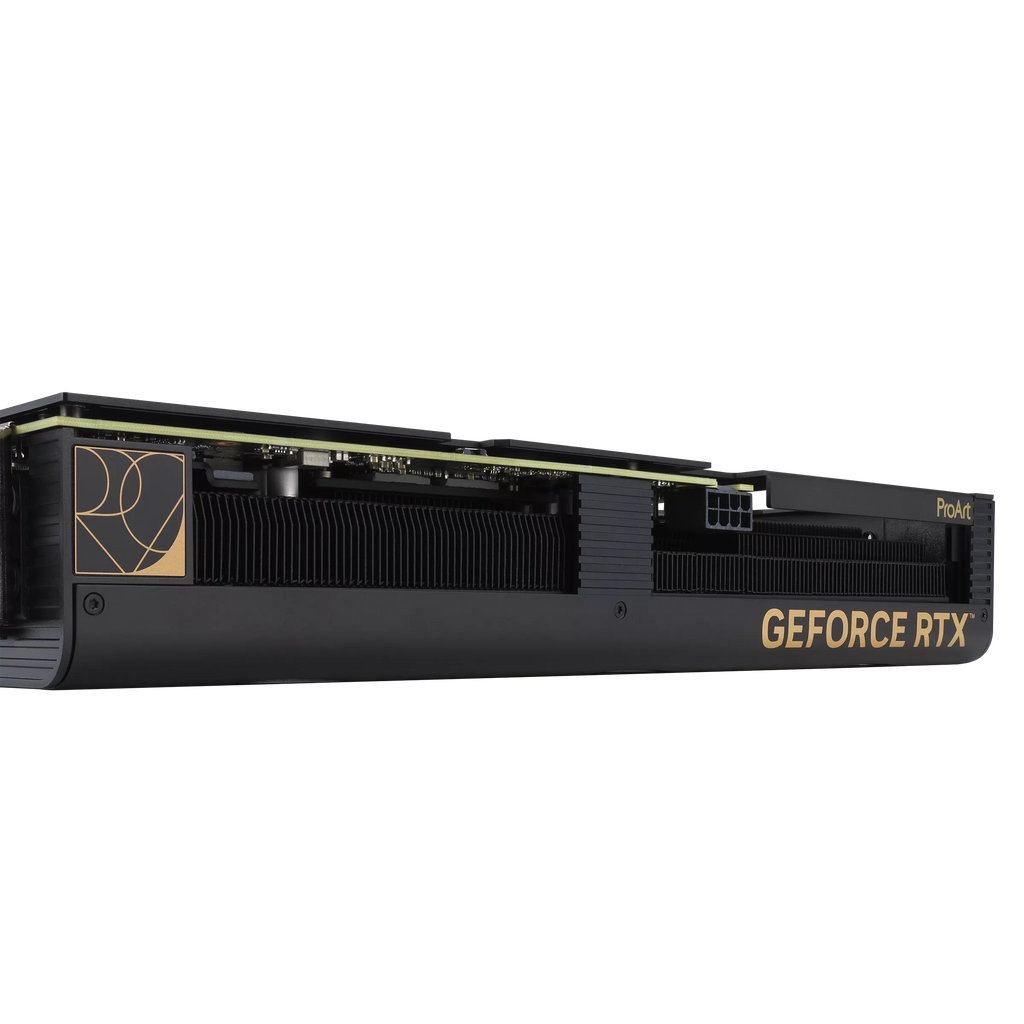

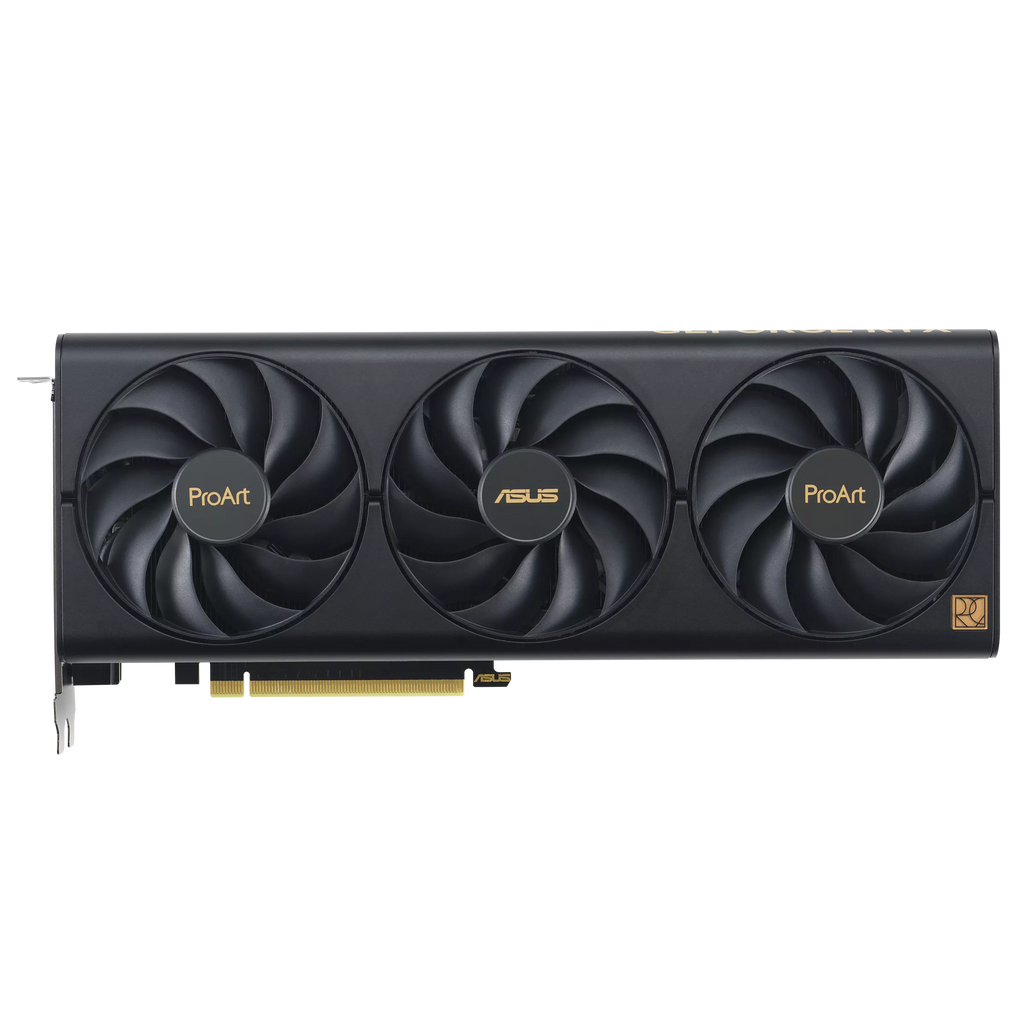

ProArt GeForce RTX™ 4060 Ti OC edition 16GB GDDR6

ProArt GeForce RTX™ 4060 Ti OC edition 16GB GDDR6 bring elegant and minimalist style to empower creator PC builds with full-scale GeForce RTX™ 40 Series performance.

• NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores: Up to 2x ray tracing performance
• OC edition: 2685 MHz (OC mode)/ 2655 MHz (Default mode)
• Axial-tech fans scaled up for 21% more airflow
• 2.5-slot design: allows for greater build compatibility while maintaining premium cooling
• Dual ball fan bearings last up to twice as long as conventional designs
• 0dB technology lets you enjoy light gaming in relative silence
• Auto-Extreme precision automated manufacturing for higher reliability
• GPU Tweak III profile Connect enables creators to seamlessly optimize system performance and cooling for every app

Model

PROART-RTX4060TI-O16G

Graphic Engine

NVIDIA® GeForce RTX™ 4060 Ti

Bus Standard

PCI Express 4.0

OpenGL

OpenGL®4.6

Video Memory

16GB GDDR6

Engine Clock

OC mode : 2685 MHz

Default mode : 2655 MHz (Boost)

CUDA Core

4352

Memory Speed

18 Gbps

Memory Interface

128-bit

Resolution

Digital Max Resolution 7680 x 4320

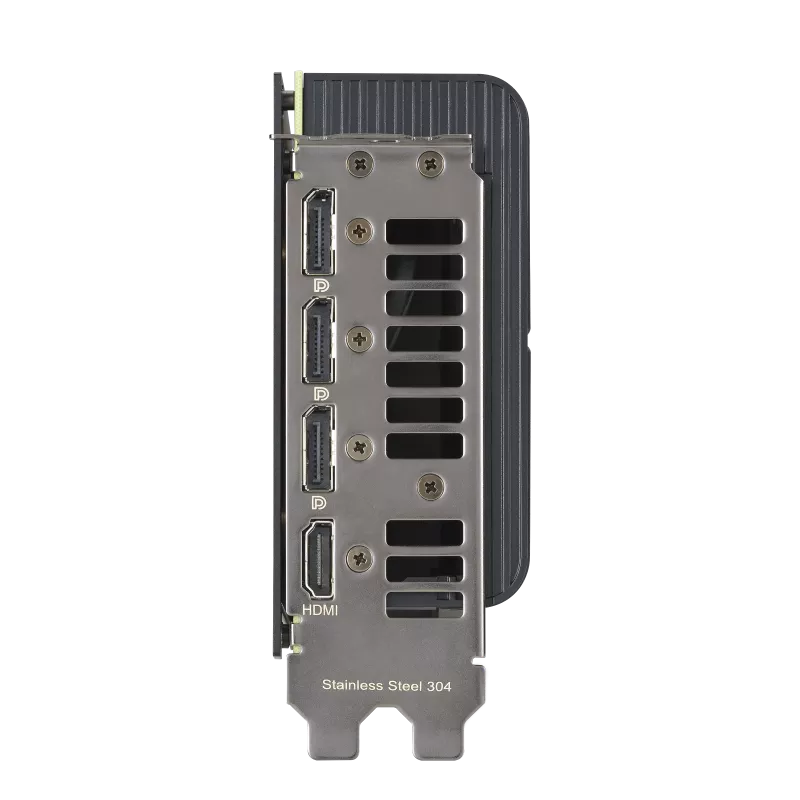

Interface

Yes x 1 (Native HDMI 2.1a)

Yes x 3 (Native DisplayPort 1.4a)

HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

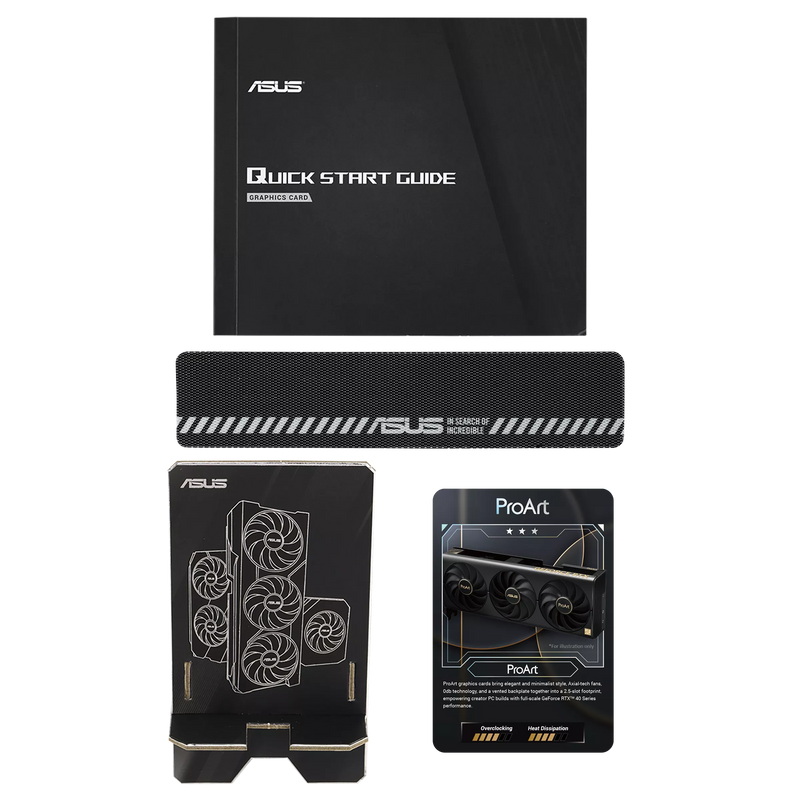

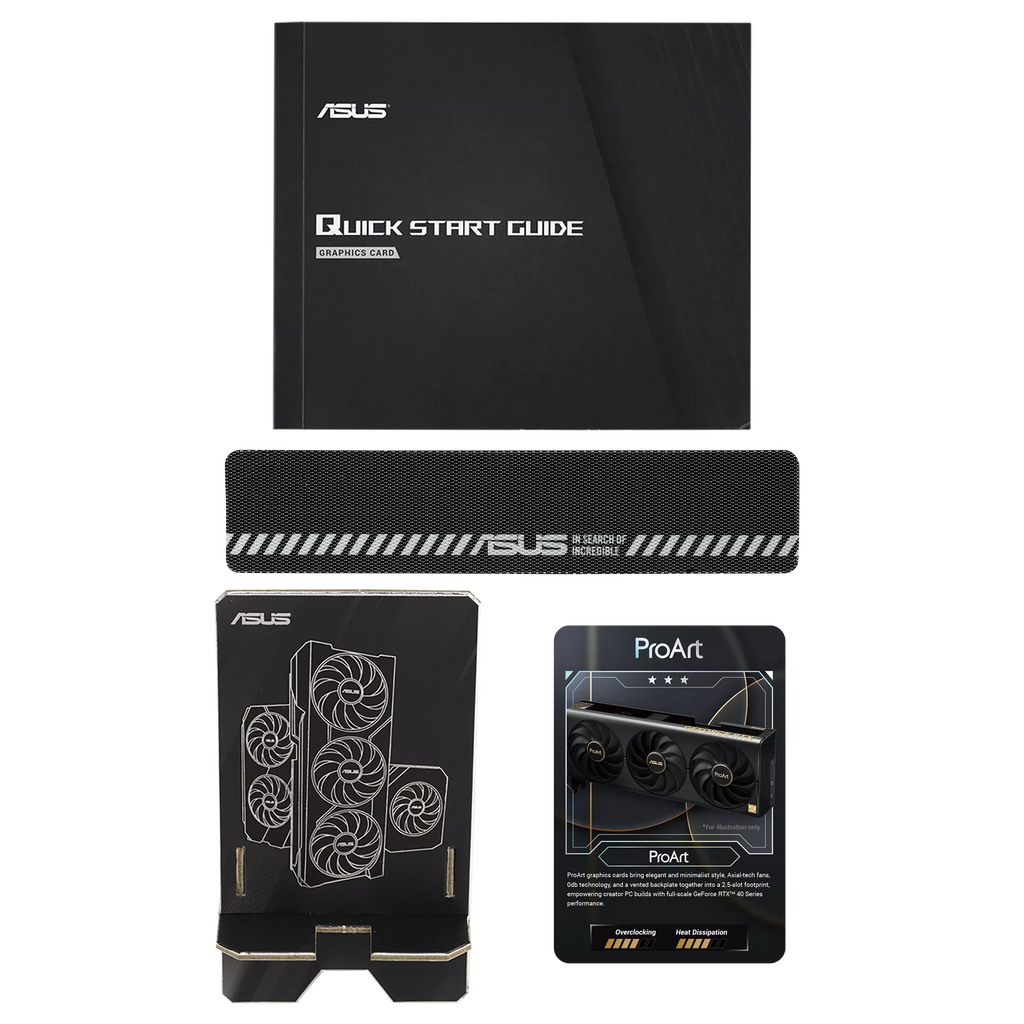

Accessories

1 x Collection Card

1 x Speedsetup Manual

1 x ASUS Velcro Hook & Loop

1 x Thank you Card

Software

ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

300 x 120 x 50 mm

11.81 x 4.72 x 1.97 inches

Recommended PSU

650W

Power Connectors

1 x 8-pin

Slot

2.5 Slot

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
