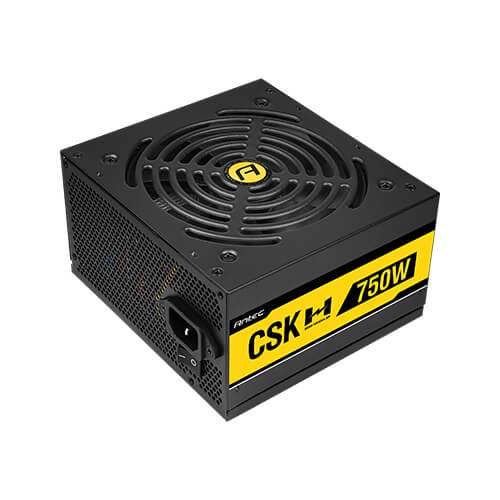

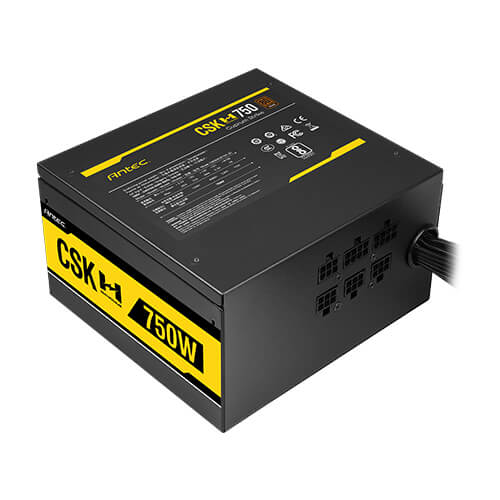

CUPRUM STRIKE
CSK 750H SEMI-MODULAR
描述
Antec’s new generation Cuprum Strike Bronze power supply is crafted for quality, efficiency, and performance. Featuring 80 PLUS® BRONZE certification, a quiet 120mm fan, CSK Bronze includes Antec’s 3-year warranty. The CircuitShield™ suite of industrial-grade protections ensure that the power delivered to your system is safe and reliable in any environment.
Better Looking Builds

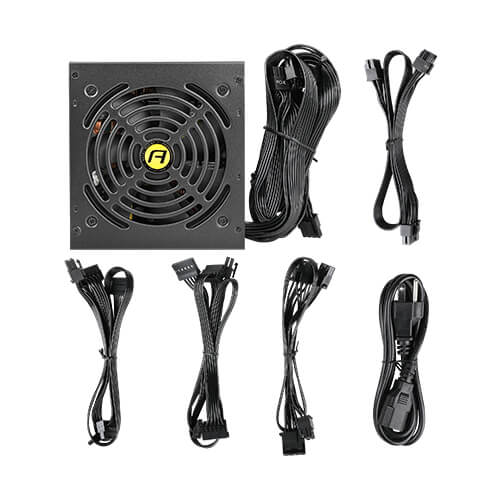

The semi-modular cabling system lets you use the cables you need, allowing your build to save space and reduce clutter, and improving the airflow.

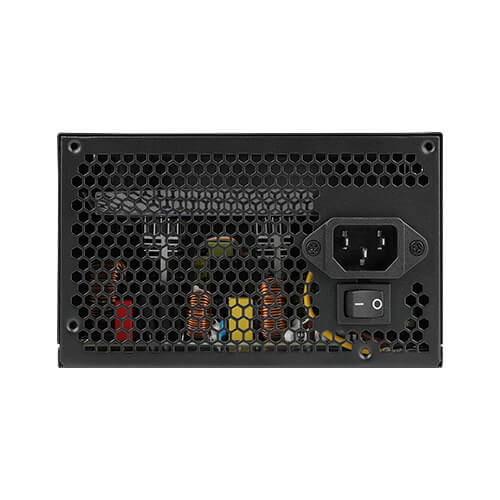

Input / Output
3-Year Warranty
We stand by the quality and safety of the CSK Bronze Power Supplies, offering a 3-year parts and labor warranty and unlimited access to our incomparable technical support and customer service.

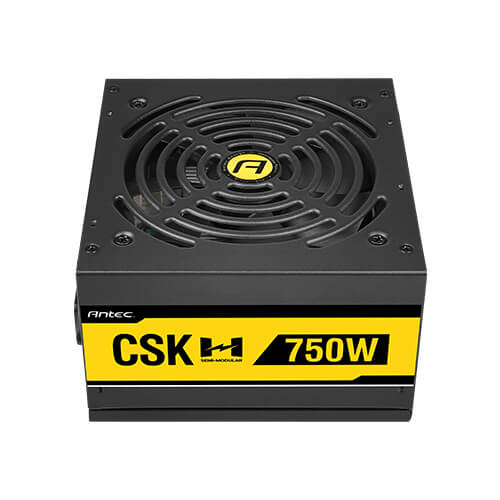

120 mm Silent Fan
The 120 mm silent fan is ideal for quite computing and is designed for longer lifetime, guaranteeing hours of operation.
Connectors
Cable Qty & length
SPECIFICATIONS
| Product Name | CSK750H |
| Model Name | X5000A257HC-20 |
| Type | ATX 12V 2.31 |
| Modular | Semi Modular |
| Dimension | 140(L) x 150(W) x 86(H) |
| Warranty | 3 years |
| Input Voltage | 100-240 VAC |
| Input Current | 10A-5A |
| Input Frequency Range | 50Hz-60Hz |
| PFC | Active PFC |
| Power Good Signal | 100-500ms |
| Efficiency | 88% Typically |
| Protection | OCP / OVP / UVP / SCP / OPP / NLO / OTP |
| Output Capacity | 750W |
| Operation Temperature | 0~40°C |
| Regulatory | cTUVus / TUV / CB / RCM / CE / CCC / FCC / KC |
| Fan | 120mm Silence Fan |
| Certifications | 80 Plus Bronze |
| Connector | 1 x MB 24(20+4) Pin |
| 2 x 8(4+4) Pin EPS 12V | |
| 4 x 8(6+2) Pin PCI-E | |
| 8 x SATA | |
| 3 x Molex | |
| UPC# | 0-761345-11766-1 CSK750H 0-761345-11767-8 CSK750H AU 0-761345-11768-5 CSK750H EC 0-761345-11769-2 CSK750H GB 0-761345-11770-8 CSK750H JP |
| Net Weight | 1.77 kg |
| Gross Weight | 2.19 kg |
