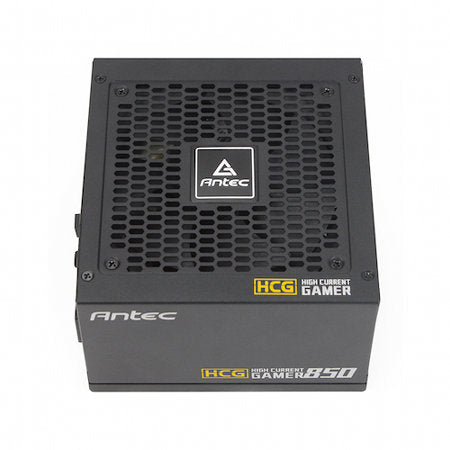

ModelHCG850 Gold
Type | ATX 12V 2.4 |

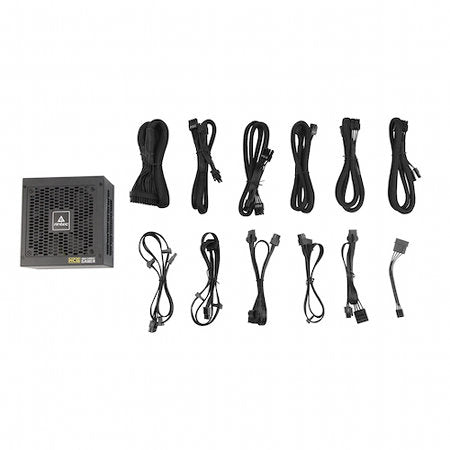

Modular | Fully Modular |
Dimension (W x L x H) | 140(L)*150(W)*86(H) mm |
Warranty | 10 years |
Input Voltage | 100-240 VAC ±10% |
Input Current | 12A-6A |
Input Frequency Range | 50Hz-60Hz |
PFC | Active PFC (>0.9 typical) |
Power Good Signal | 100-500ms |
Efficiency | 92% Typically |
Protection | OCP/OVP/UVP/SCP/OPP/OTP/SIP/NLO |
Output Capacity | 850W |
Operation Temperature | 0~40°C |
Regulatory | cTUVus/TUV/CB/RCM/CE/EAC/CCC/BSMI/FCC/KR |

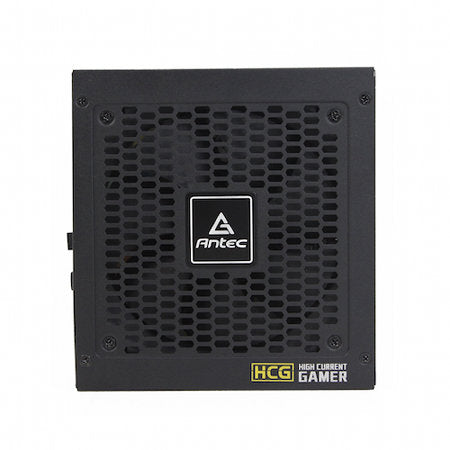

Fan | 120mm FDB Fan |
Certifications | 80 Plus Gold |

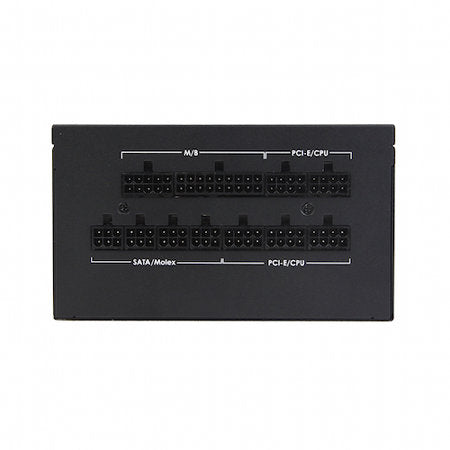

Connector | 1 x MB 24(20+4) Pin 2 x 8(4+4) Pin EPS 12V 6 x 8(6+2) Pin PCI-E 10 x SATA 5 x Molex 1 x FDD |
Net Weight | 2.46Kg |
Gross Weight | 3.77Kg |
UPC# | 0-761345-11647-3 HCG850 Gold 0-761345-11645-9 HCG850 Gold AU 0-761345-11644-2 HCG850 Gold EC 0-761345-11643-5 HCG850 Gold GB 0-761345-11642-8 HCG850 Gold JP |
