描述
Product Name | NE650G M |
Model Name | X7000A078-20 |
Type | ATX 12V 2.4 |
Modular | Fully |
Dimension | 150(L) x 140(W) x 86(H) |
Warranty | 7 years |
Input Voltage | 100-240 VAC |
Input Current | 10A MAX |
Input Frequency Range | 50Hz-60Hz |
PFC | Active PFC |
Power Good Signal | 100-500ms |
Efficiency | Up To 92% |
Protection | OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
Output Capacity | 650W |
Operation Temperature | 0 ~ 40°C |
Regulatory | cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / UKCA / ICES |
Fan | 120mm Silence Fan |
Certifications | 80 Plus Gold |

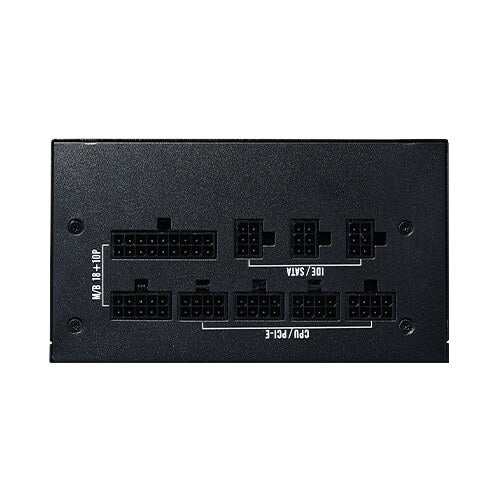

Connector | 1 x MB 24(20+4) Pin |
2 x 8(4+4) Pin EPS 12V | |
4 x 8(6+2) Pin PCI-E | |
8 x SATA | |
3 x Molex | |
1 x FDD | |
Net Weight | 1.30 kgs |
Gross Weight | 2.50 kgs |
UPC# | 0-761345-11751- NE650G M 0-761345-11752-4 NE650G M AU 0-761345-11753-1 NE650G M EC 0-761345-11754-8 NE650G M GB 0-761345-11755-5 NE650G M JP |
