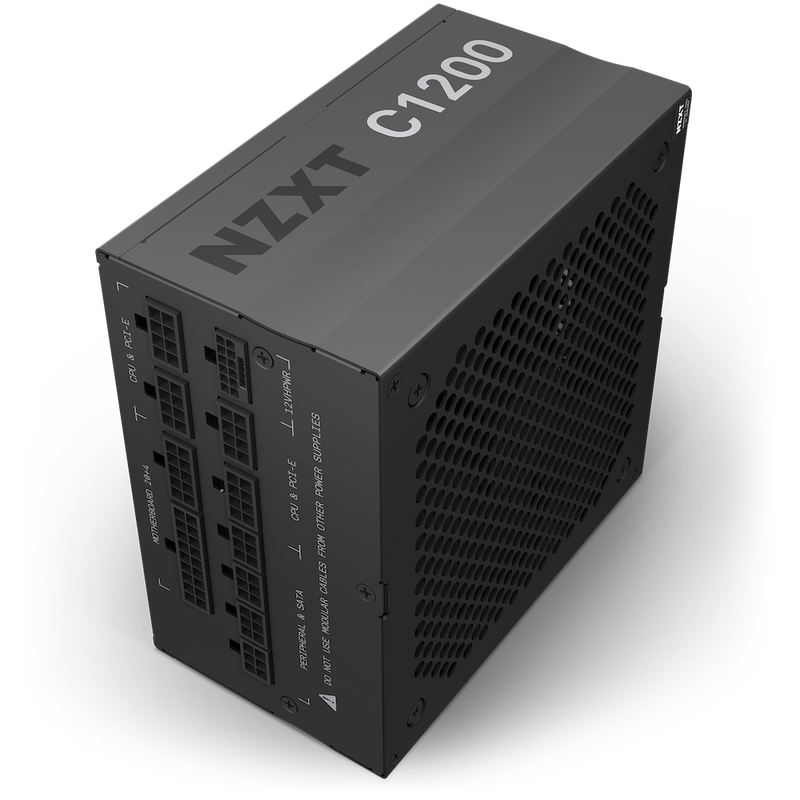

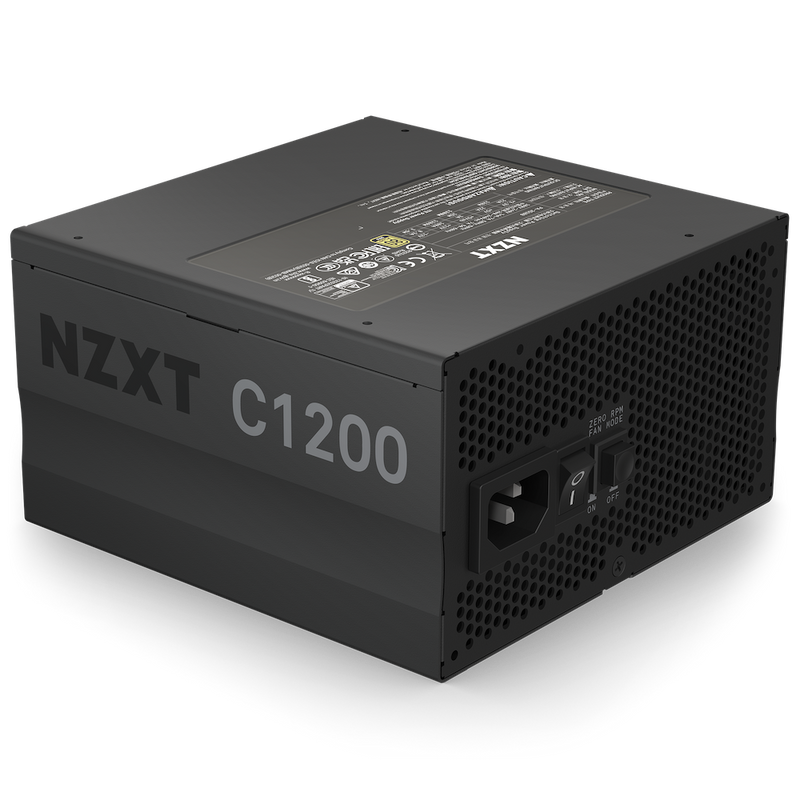

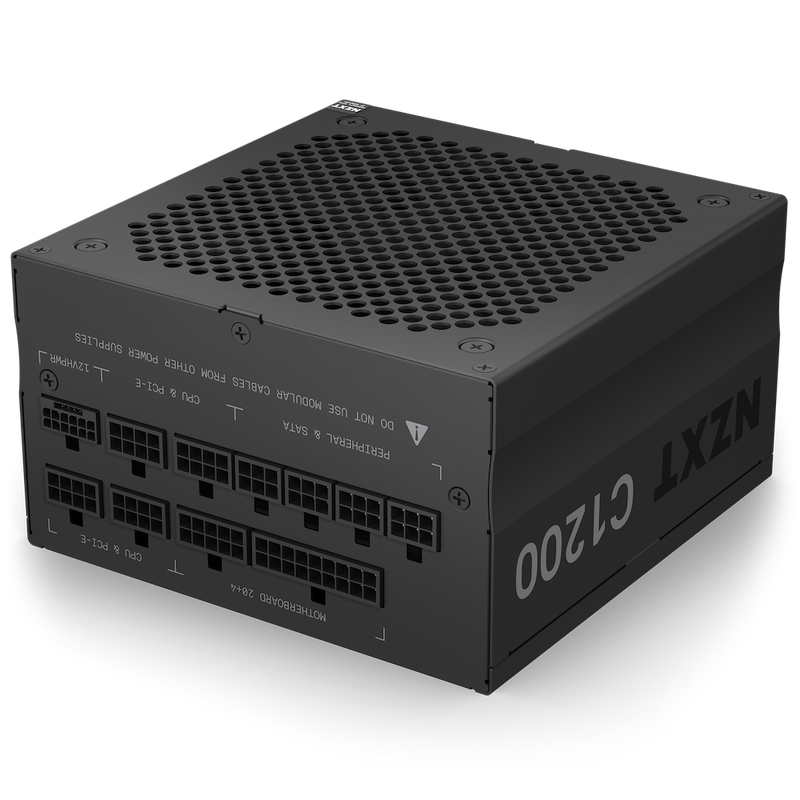

【夏日大激減】NZXT C Series C1200 1200W ATX Modular 80 PLUS GOLD

節省$200.00
NZXT貨號: PA-2G1BB-UK

價格:
銷售價格HK$1,399.00 正常價格HK$1,599.00

描述

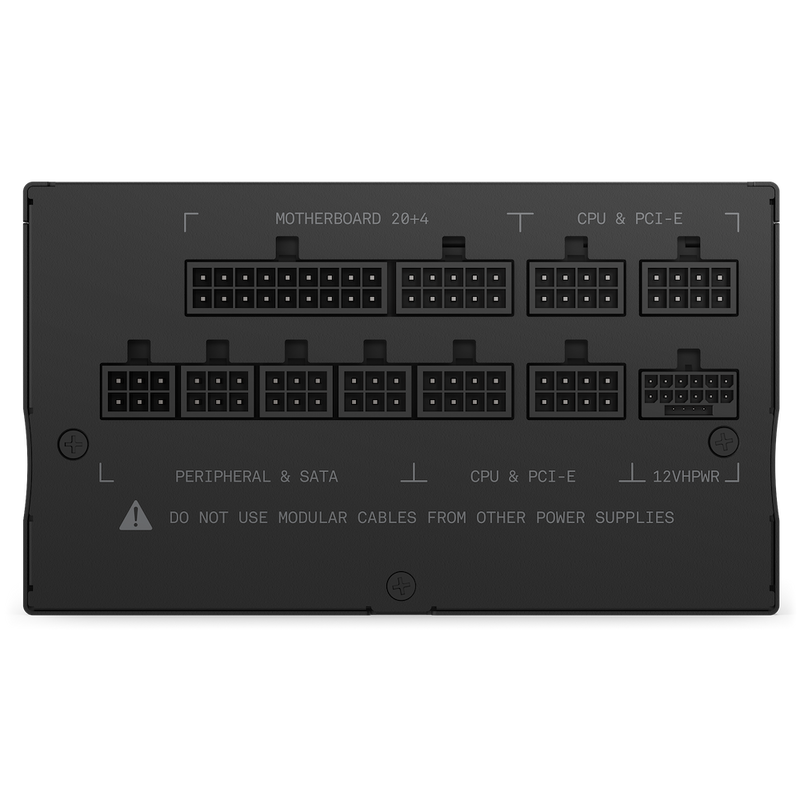

OUTPUT CONNECTORS

  • 24-pin ATX power:1

  • 4+4-pin CPU power:1

  • 8-pin CPU Cable :1

  • 6+2-pin PCIe power :2

  • 16-pin (12+4) 12VHPWR PCIe Cable:1

  • SATA power :8

  • Peripherals :4

CABLE SPECS

  • 24-pin ATX power:600 mm, Nylon sleeving

  • 4+4-pin CPU power:700 mm, Nylon sleeving

  • 8-Pin CPU Power Cable:700mm, Nylon sleeving

  • 6+2-pin PCIe power:650 + 150 mm, Nylon sleeving

  • 16-Pin (12+4) 12VHPWR PCIe Cable:650mm, Nylon sleeving

  • SATA power:500 + 150 mm

  • Peripherals:500 + 150 mm

AC INPUT RATING

  • 100 - 240Vac:14A-7A 50Hz-60Hz

DC OUTPUT RATING

  • +3.3V and +5V:22A (120W)

  • +12V:100A (1200W)

  • -12V:0.3A (3.6W)

  • 5Vsb:3A (15W)

  • Total:1200W

OPERATION

  • PF Correction:Active @0.96

  • MTBF:100,000 hours

  • Temperature:0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C)

ENERGY EFFICIENCY

  • Rating:80 Plus Gold

  • 20% loading:90.97% @115Vac

  • 50% loading:91.55% @115Vac

  • 100% loading:88.51% @115Vac

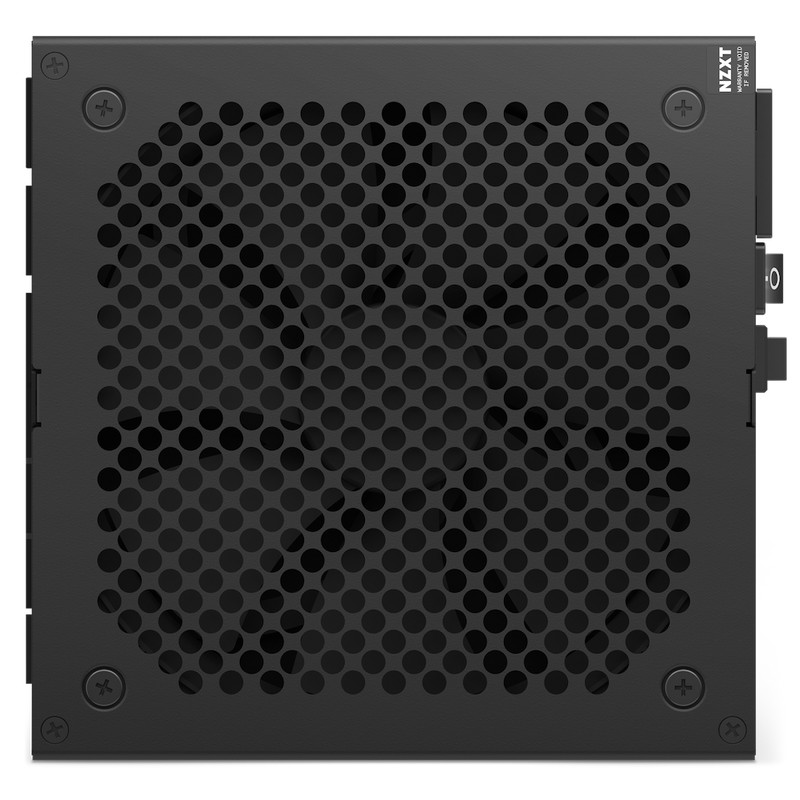

FAN SPECS

  • Dimensions:135 x 135 x 25 mm

  • Speed:0-2300 ± 10% RPM

  • Airflow:93.02 CFM (Tpy.)

  • Noise:44.5 dBA max

  • Bearing:Fluid Dynamic Bearing (FDB)

GENERAL

  • Dimensions:150 x 150 x 86mm

  • Material(s):Steel, PCB and Plastic

  • Compliance Standard:ATX12V v3.0 / EPS12V v2.92

  • Regulation & Certification:cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA

  • Warranty:10 years

  • Model Number:PA-2G1BB

UPC

  • UPC (CN):810074842549

  • UPC (US):810074842563

  • UPC (EU):810074842570

  • UPC (UK):810074842587

  • UPC (AU):810074842594

  • UPC (JP):810074842600

  • UPC (WO):810074842631

EAN

  • EAN (CN):5056547202464

  • EAN (US):5056547202488

  • EAN (EU):5056547202495

  • EAN (UK):5056547202501

  • EAN (AU):5056547202518

  • EAN (JP):5056547202525

  • EAN (WO):5056547202556
