Product Collection
Intel® NUC Kit with 12th Generation Intel® Core™ Processors
Marketing Status
Launched
Supported Operating Systems
Windows 11 Home*, Windows 11 Pro*, Windows 10 Home*, Windows 10 IoT Enterprise*, Windows 10 Pro*, Red Hat Linux*, Ubuntu 20.04 LTS*
Board Form Factor
UCFF (4" x 4")
Internal Drive Form Factor
M.2 and 2.5" Drive
# of Internal Drives Supported
3
DC Input Voltage Supported
12-20 VDC
Recommended Customer Price
Embedded Options Available
Max Memory Size (dependent on memory type)
2x HDMI 2.1 TMDS Compatible, 2x DP 1.4a via Type C
# of Displays Supported ‡
4
Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)
PCI Express Configurations ‡
PCIe x4 Gen 4: M.2 22x80 (key M)
PCIe x1 Gen 3: M.2 22x42 (key B)
PCIe x1: M.2 22x30 (key E)
22x80 NVMe (M); 22x42 SATA (B)
USB Configuration

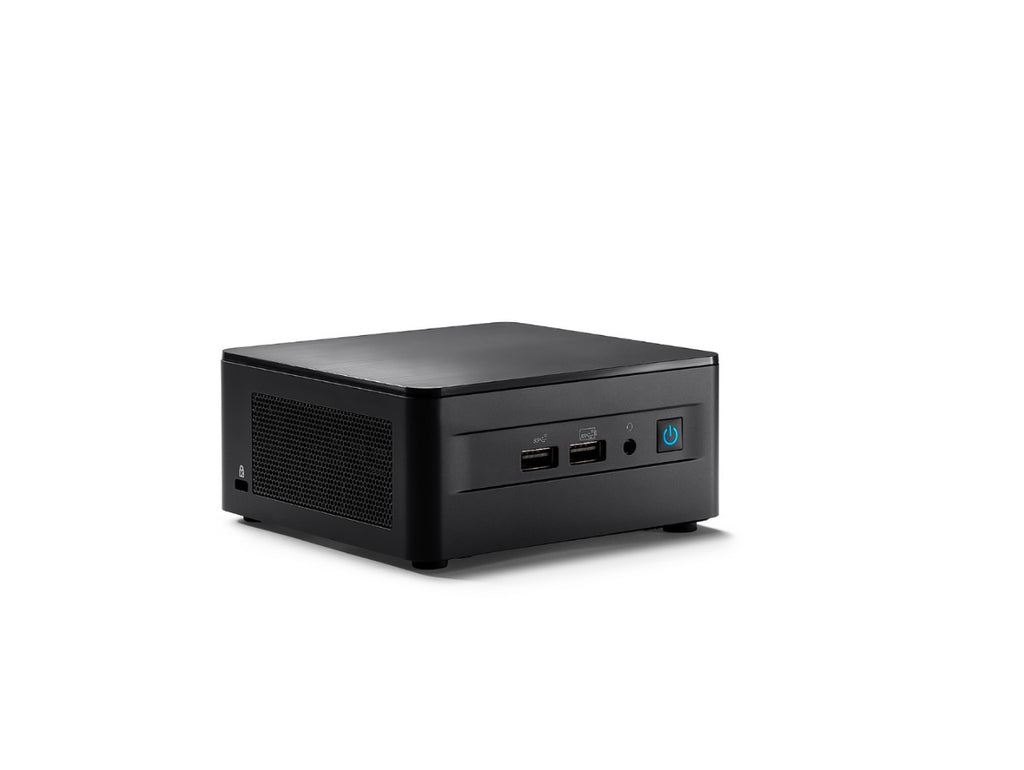

Front: 2x USB 3.2

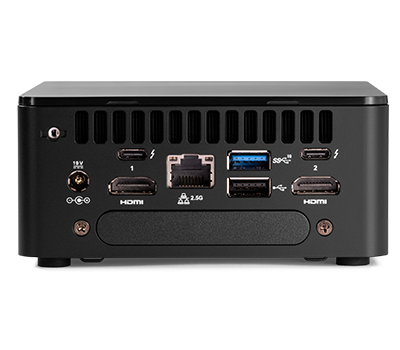

Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0
Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers)
Serial Port via Internal Header
No
Audio (back channel + front channel)
Front panel: 3.5mm headphone/mic jack
Intel® Ethernet Controller i225-V
Integrated Wireless‡
Intel® Wi-Fi 6E AX211(Gig+)
Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
Chassis Dimensions
117 x 112 x 54 [mm] (LxWxH)
Intel® Optane™ Memory Supported ‡
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Intel® ME Firmware Version
Intel® HD Audio Technology
Intel® Virtualization Technology (VT-x) ‡
Intel® Platform Trust Technology (Intel® PTT)
Intel® AES New Instructions
Yes
