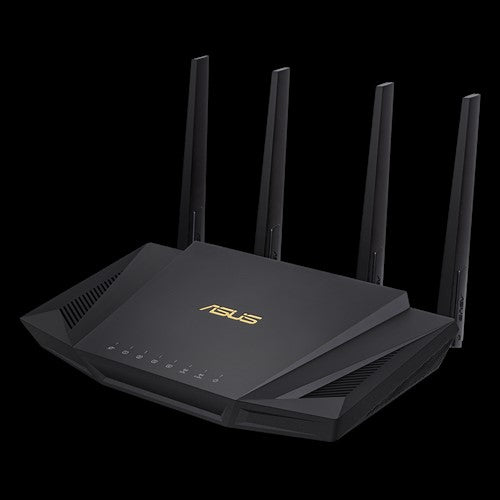

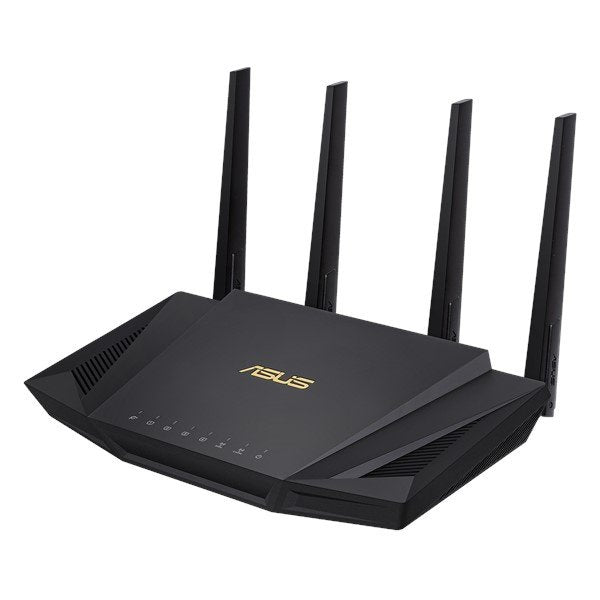

ASUS RT-AX3000 V2 Dual Band Smart Wi-Fi 6 (802.11ax) Router

• Network Standard
  IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6
• Product Segment
  AX 3000 (2402Mbps+574Mbps)
• Coverage
  Large homes
• Data Rate
  802.11a : 6,9,12,18,24,36,48,54 Mbps
  802.11b : 1, 2, 5.5, 11 Mbps
  802.11g : 6,9,12,18,24,36,48,54 Mbps
  802.11n : up to 300 Mbps
  802.11ac : up to 867 Mbps
  802.11ax (2.4GHz) : up to 574 Mbps
  802.11ax (5GHz) : up to 2402 Mbps
• Antenna
  External antenna x 4
• Transmit/Receive
  2.4 GHz 2 x 2
  5 GHz 2 x 2
• Processor
  1.5 GHz tri-core processor
• Memory
  256 MB Flash
  512 MB RAM
• Wi-Fi Technology
  OFDMA (Orthogonal Frequency Division Multiple Access)
  Beamforming: standard-based and universal
  1024-QAM high data rate
  20/40/80/160 MHz bandwidth
• Operating Frequency
  2.4 GHz / 5 GHz
• Encryption
  WPA3-PSK, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
• Firewall & Access Control
  Firewall: SPI intrusion detection, DoS protection
  Access control：Parental control, Network service filter, URL filter, Port filter
• Management
  UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log
• VPN Support
  IPSec Pass-Through
  PPTP Pass-Through
  L2TP Pass-Through
  PPTP server
  OpenVPN server
  PPTP client
  L2TP client
  OpenVPN client
• WAN Connection Type
  Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
• Ports
  RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
  USB 3.1 Gen 1 x 1
• Features
  Router app
  MU-MIMO
  Traffic Analyzer
  Adaptive QoS
  AiProtection Pro
  Parental Control
  Guest Network :
  VPN server : PPTP Server, IPSec server
  VPN client : PPTP client, L2TP client, OpenVPN client
  NAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
  Mac OS Backup
  Enhanced media server (AiPlayer app compatible)
  - Image : Jpeg
  - Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
  - Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
  AiCloud personal cloud service
  3G/4G data sharing
  Printer Server
  - Multifunctional printer support (Windows only)
  - LPR protocol support
  Download Master
  - Support bt, nzb, http, ed2k
  - Support encryption, DHT, PEX and magnet link
  - Upload and download bandwidth control
  - Download scheduling
  AiDisk file server
  - Samba and FTP server with account management
  IPTV support
  Roaming Assist
  OFDMA
  Beamforming
• Button
  WPS Button, Reset Button, Power Switch
• LED Indicator
  Power x 1
  2.4G x 1
  5G x 1
  LAN x 4
  WAN x 1
• Power Supply
  AC Input : 110V~240V(50~60Hz)
  DC Output : 19 V with max. 1.75 A current
• OS Support
  Windows® 10
  Windows® 8
  Windows® 7
  Mac OS X 10.6
  Mac OS X 10.7
  Mac OS X 10.8
• Dimensions
  224 x 154 x 160 mm (LxWxH)
• Weight
  538 g
• Operation mode
  Wireless router mode
  Access point mode
  Media bridge mode

AX3000 Dual Band WiFi 6 (802.11ax) Router supporting MU-MIMO and OFDMA technology, with AiProtection Pro network security powered by Trend Micro™, compatible with ASUS AiMesh WiFi system
Next-Gen Wi-Fi Standard - Supporting the latest Wi-Fi standard 802.11AX (Wi-Fi 6) and 160MHz bandwidth for better capacity and efficiency.
Ultra-fast Wi-Fi Speed – RT-AX3000 supports 160MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 3000Mbps — 574 Mbps on the 2.4GHz band and 2402 Mbps on the 5GHz band.
Increase Capacity and Efficiency – Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicate with multiple devices simultaneously
Commercial-grade Security - lifetime free AiProtection, powered by Trend Micro™, blocks internet security threats for all your connected smart devices.
Better Partner with Mesh System - Compatible with ASUS AiMesh Wi Fi system for seamless whole-home coverage.
