描述
-NVIDIA® GeForce RTX™ 4060
-PCI Express 4.0 interface
-8GB GDDR6 Video Memory
-Core Clock up to 2535MHz (OC)
-HDMI (2.1a) x 1, DisplayPort (1.4a) x 3
-Support up to 4 Displays
-Axial-tech fans, dual ball bearing
-2.5 slot design, 0dB technology

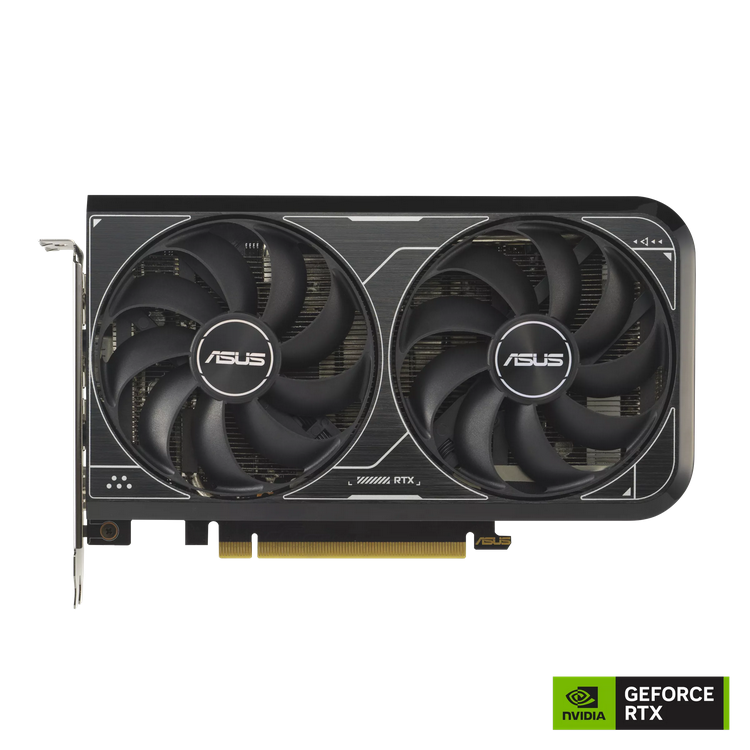

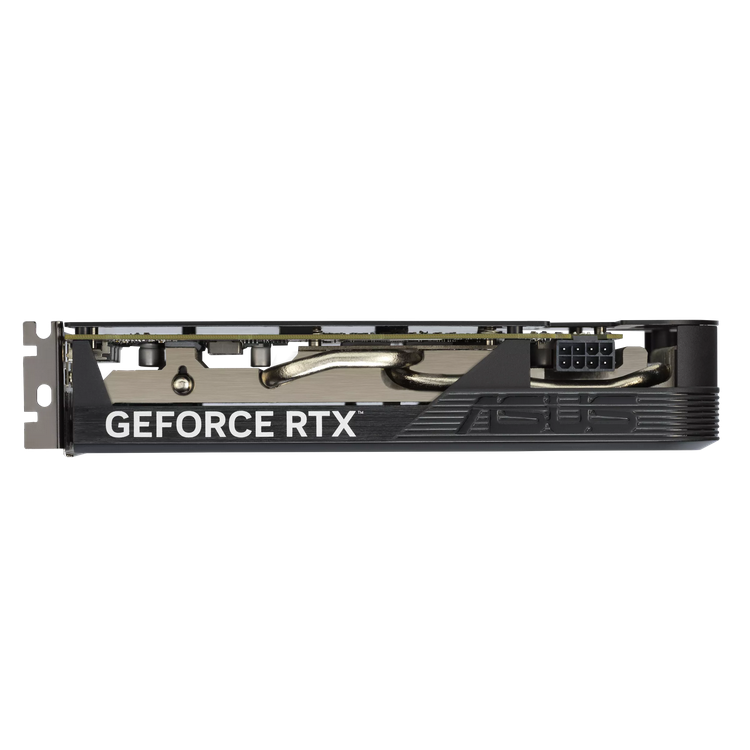

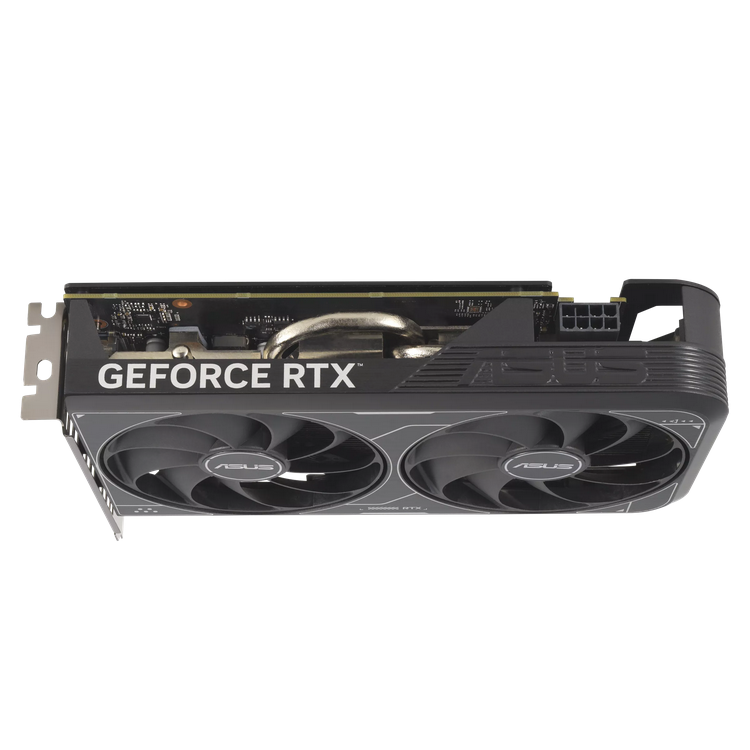

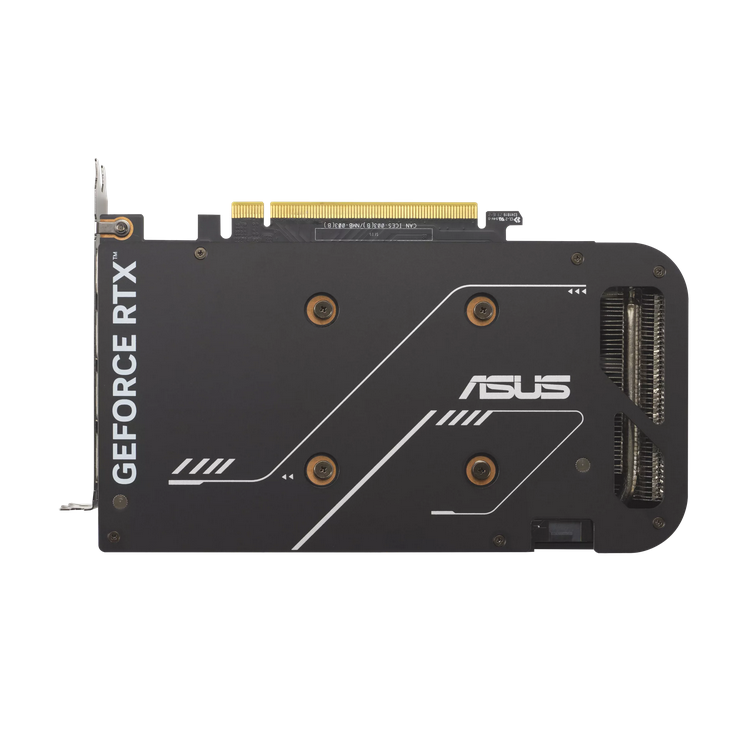

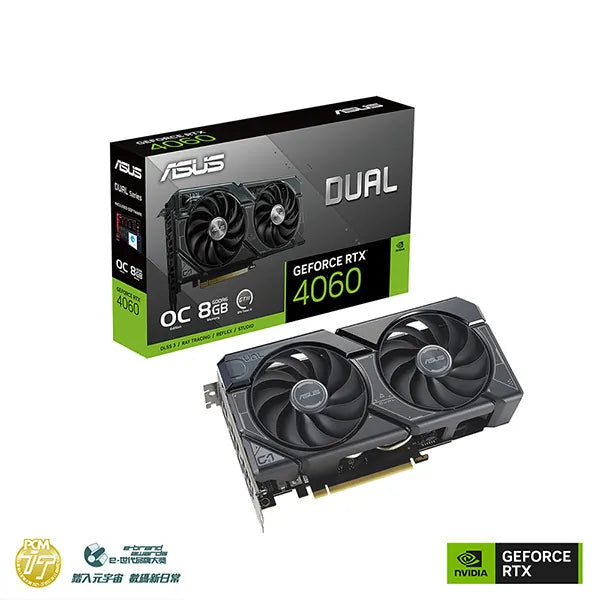

ASUS Dual GeForce RTX™ 4060 V2 OC Edition 8GB GDDR6
- AI Performance: 246 AI TOPS
- Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- OC edition: Boost Clock 2535 MHz (OC Mode)/ 2505 MHz (Default Mode)
- Axial-tech fan design features a smaller fan hub to increase airflow through the cooling array
- A 2-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs
- 0dB technology lets you enjoy light gaming in relative silence
Default mode : 2505 MHz (Boost)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
7.96 x 4.73 x 1.57 inches
2x Fans. 2x Fun.
ASUS Dual GeForce RTX™ 4060 V2 fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for maximizing airflow to the heatsink — are packed into the 20.2 cm long, 2-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3
-
New Streaming Multiprocessors
Up to 2x performance and power efficiency
-
Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3
vs. brute-force rendering -
Third-Gen RT Cores
Up to 2x ray tracing performance
-
Cutting-Edge GPUs
NVIDIA Ada Lovelace architecture
-
Realistic and
Immersive Graphics Dedicated Ray Tracing Cores
-
AI-Accelerated Performance
NVIDIA DLSS 3
-
Game-Winning Responsiveness
NVIDIA Reflex low-latency platform
-
Built for Live Streaming
NVIDIA Encoder
-
AI-Enhanced Voice
and Video NVIDIA Broadcast app
-
Fast-Track Your Creativity
NVIDIA Studio
-
Performance and Reliability
Game Ready and Studio Drivers
COOLING
Axial-tech Fan Design
Better, faster, stronger
Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
ENGINEERING
Auto-Extreme Technology
Precision automated manufacturing
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
SOFTWARE
GPU TWEAK III
Monitor, tweak, and tune
The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
Learn more about GPU Tweak III >EXPERIENCE
144-hour Validation Program
"Extensive" may be an understatement
A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.
Free 1 Month of Adobe Creative Cloud
Get complimentary membership with the purchase of selected ASUS products.*
-
20+ Adobe apps
Industry-leading apps including Photoshop, Illustrator, InDesign, Spark and XD.
-
Adobe Fonts
Access thousands of fonts right within your Creative Cloud apps.
-
Behance
Find inspiration in the world’s largest creative community.
-
Creative Cloud Libraries
Your team can share assets across their apps and devices, so everyone’s in sync.
-
1TB of cloud storage per user
Extra storage makes it easier for your team to share and manage creative assets.
nvidia DLSS 3
Max FPS. Max Quality. Powered by AI.
DLSS is a revolutionary breakthrough in AI graphics that multiplies performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional frames and improve image quality.
