Model no.GP-UD1000GM PG5
-
TypeIntel Form Factor ATX 12V v2.31
-
PFCActive PFC (>0.9 typical)
-
Input Voltage100-240 Vac (full range)
-
Input Current12-6A
-
Input Frequency60-50 Hz
-
Output Capacity750W
-
尺寸150 x 140 x 86 mm
-
Fan Type120mm Hydraulic Bearing(HYB)fan
-
80 PLUSGold
-
Efficiency90% at typical load
-
MTBF>100,000 hours
-
ProtectionOVP/OPP/SCP/UVP/OCP/OTP
-
Power Good Signal100-150ms
-
Hold Up Time>16ms
-
Cable TypeFlat, All black
-

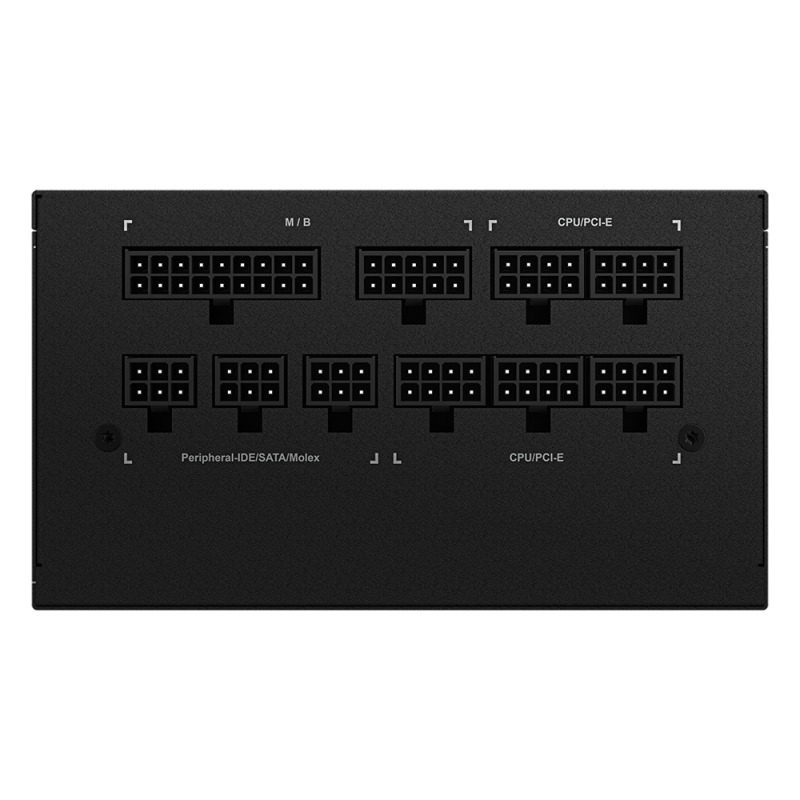

接頭ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 :
600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1產品介紹
